CUP-F-0.5x4.5x0.75-F

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • Unit

$ 152.45
$ 121.96 121.96000000000001 AUD

$ 152.45

Quantity
Your Price
1 - 4
$ 121.96
5 - 9
$ 115.86
10 - 24
$ 109.76
25 - 49
$ 99.09
50 +
$ 76.23

This combination does not exist.

Add to Cart

CUP F 0.5" X 4.5" X 0.75" F

Details:

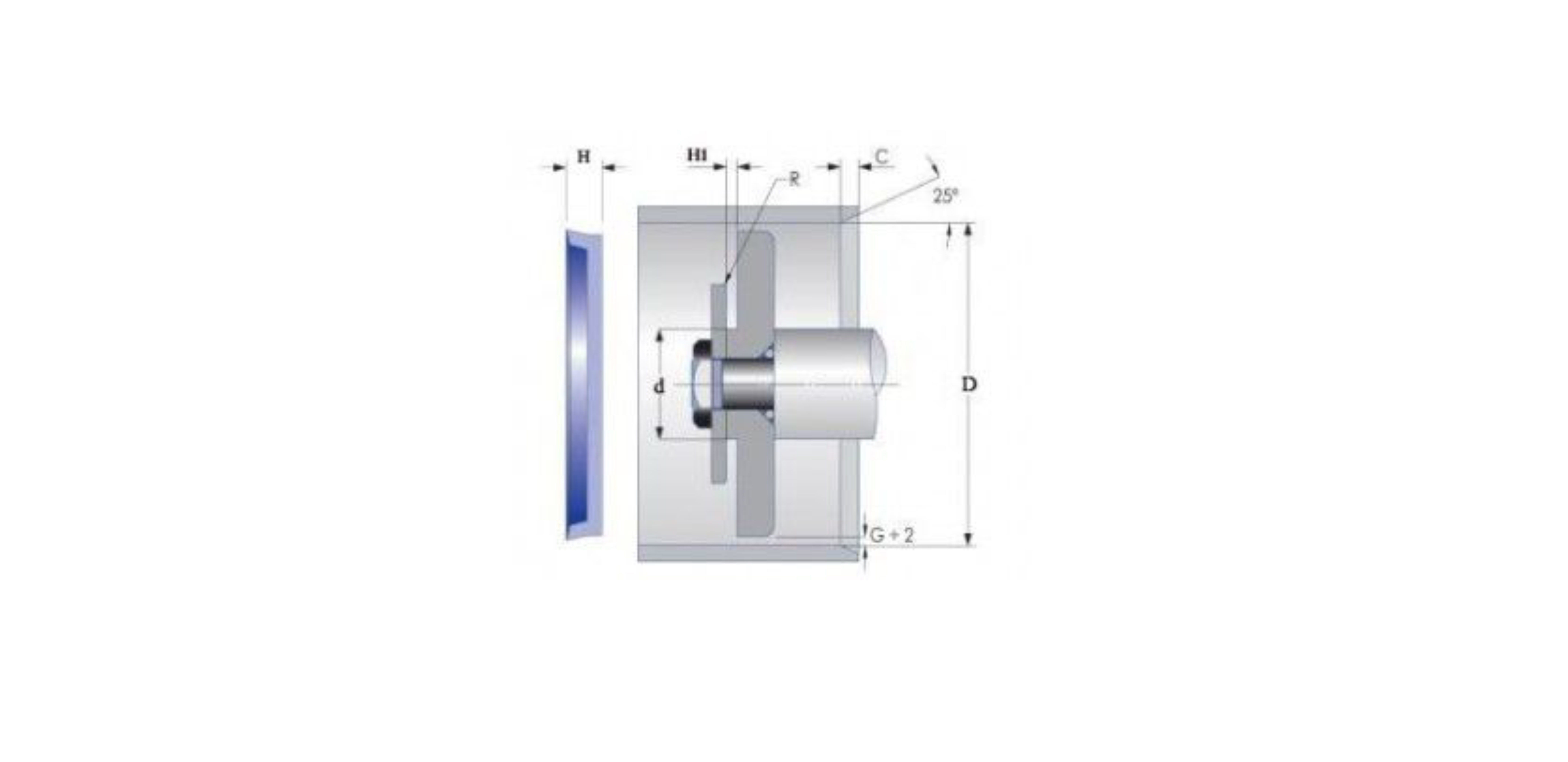

d (h9)
:
0.5" (12.7mm)
H1+0.2
:
0.17" (4.32mm)
D (H9)
:
4.5" (114.3mm)
H
:
0.75" (19.05mm)
Material
:
F
CUP-F-0.5x4.5x0.75-F

Design

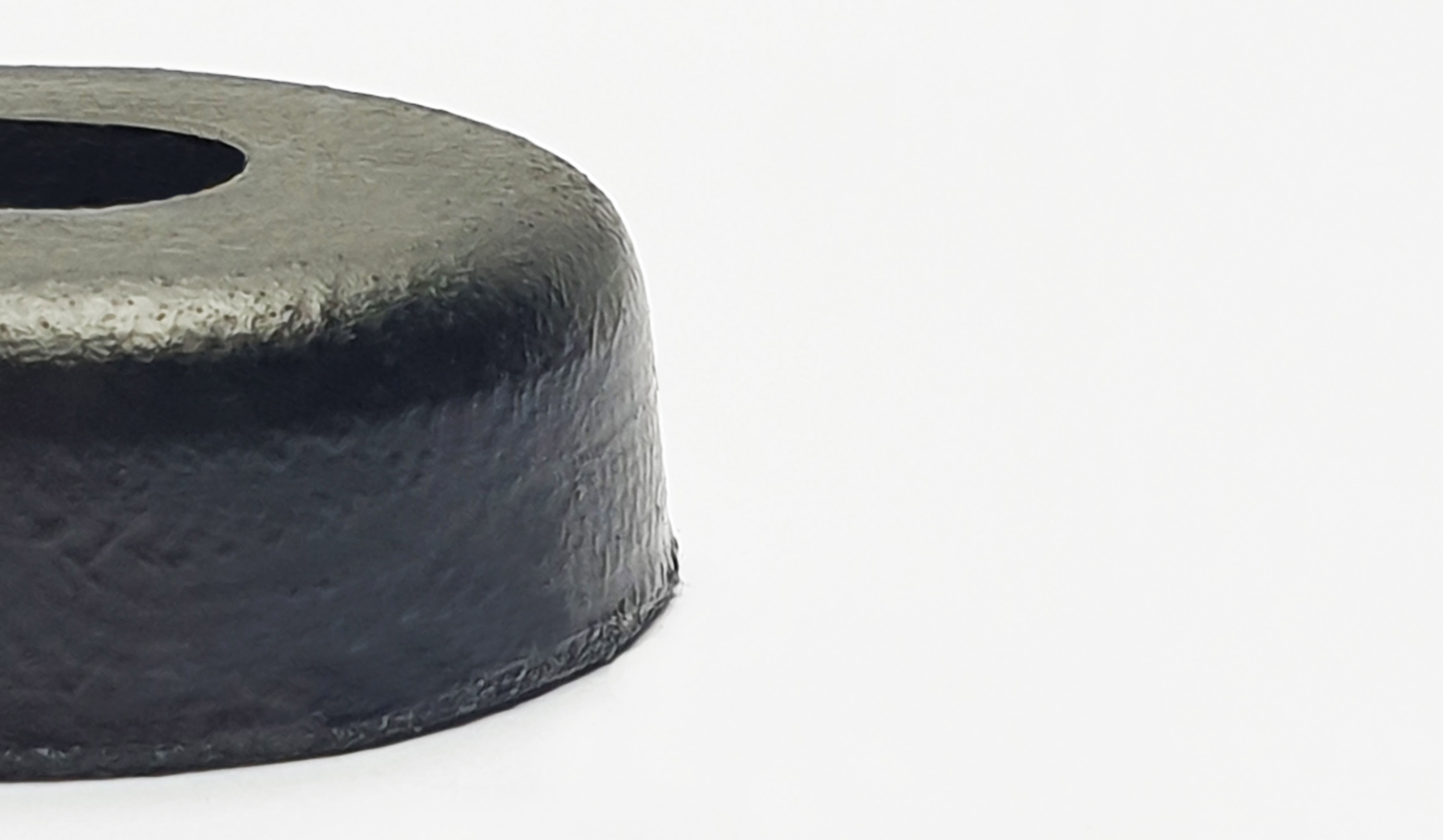

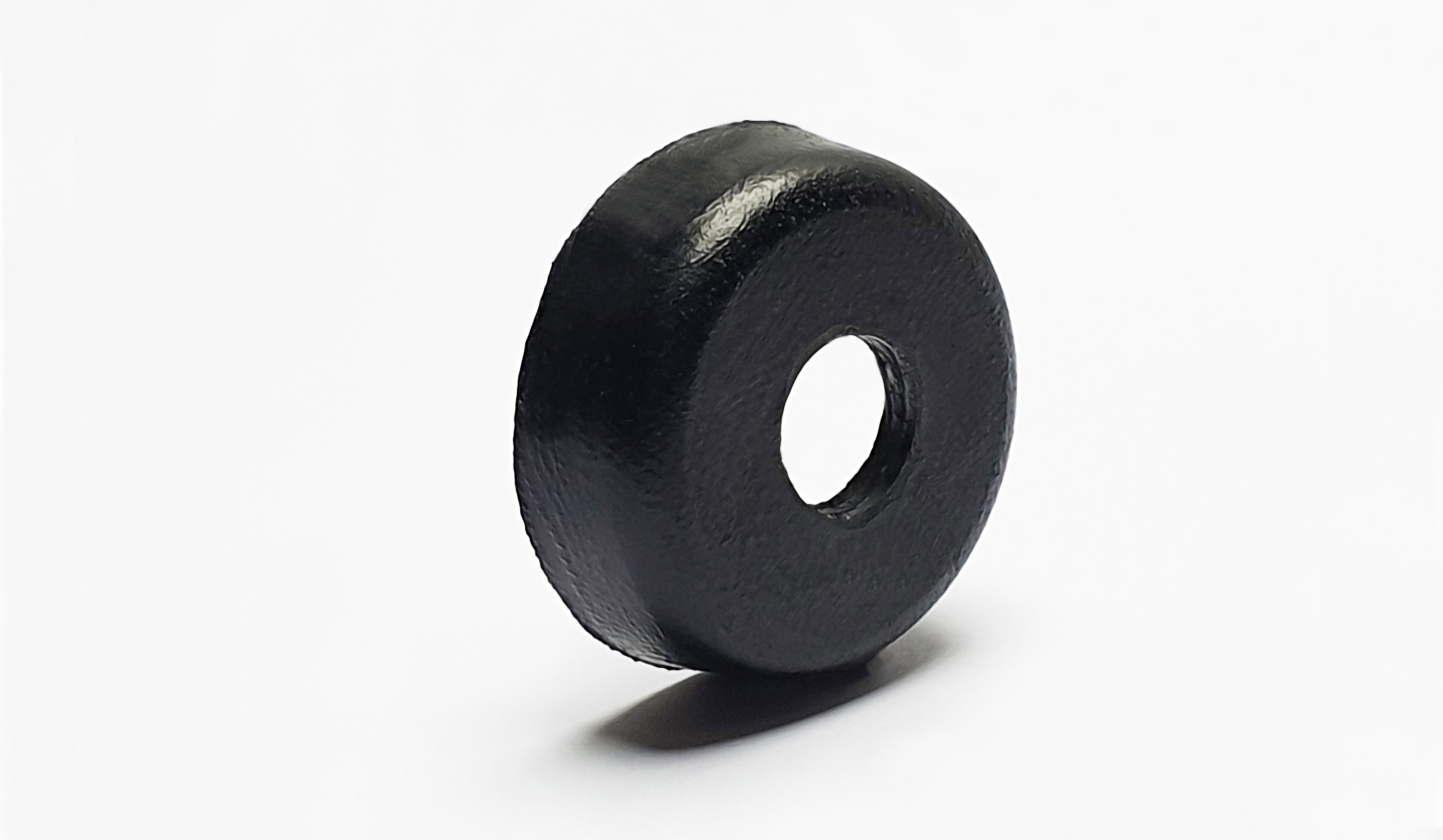

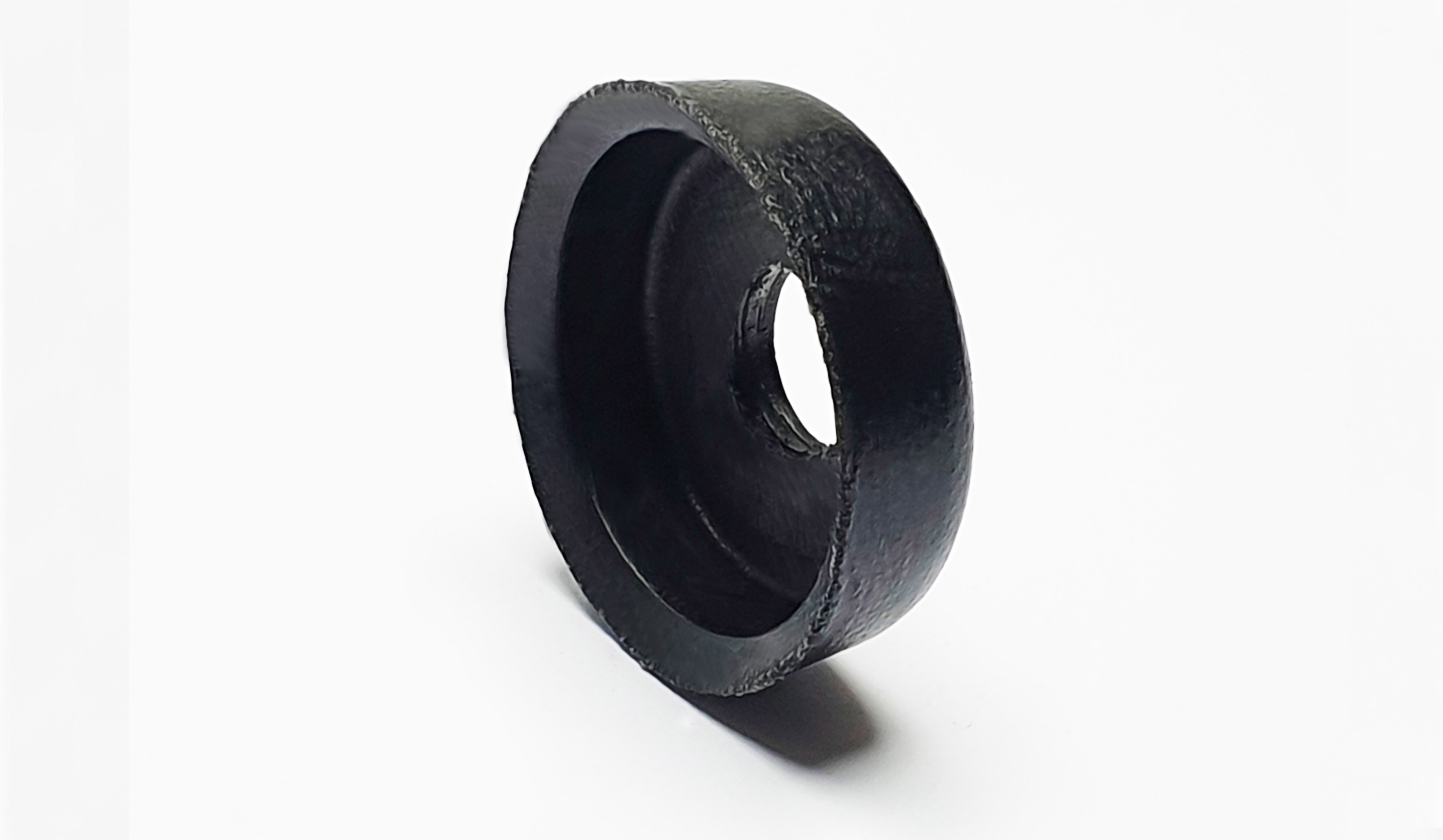

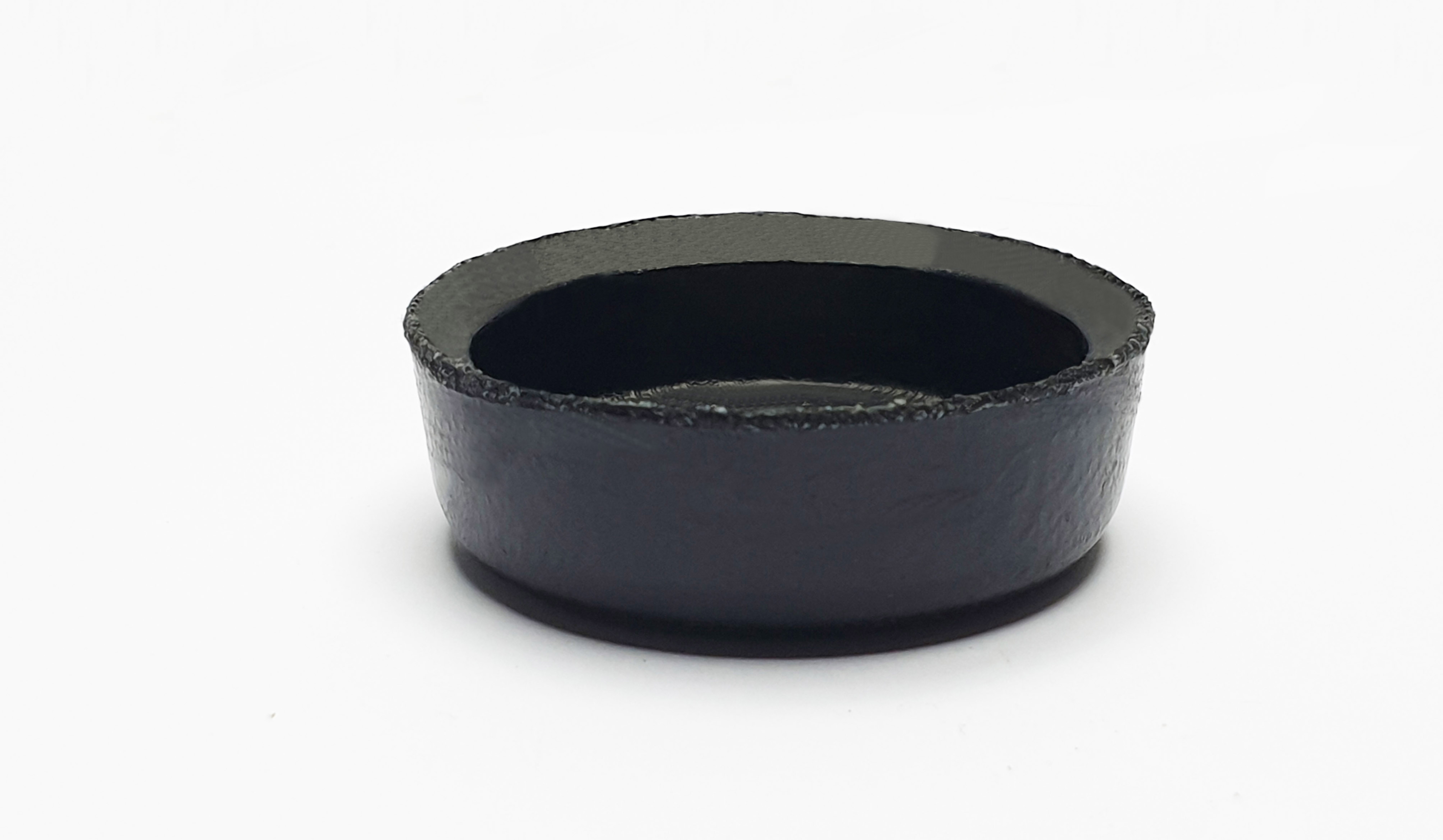

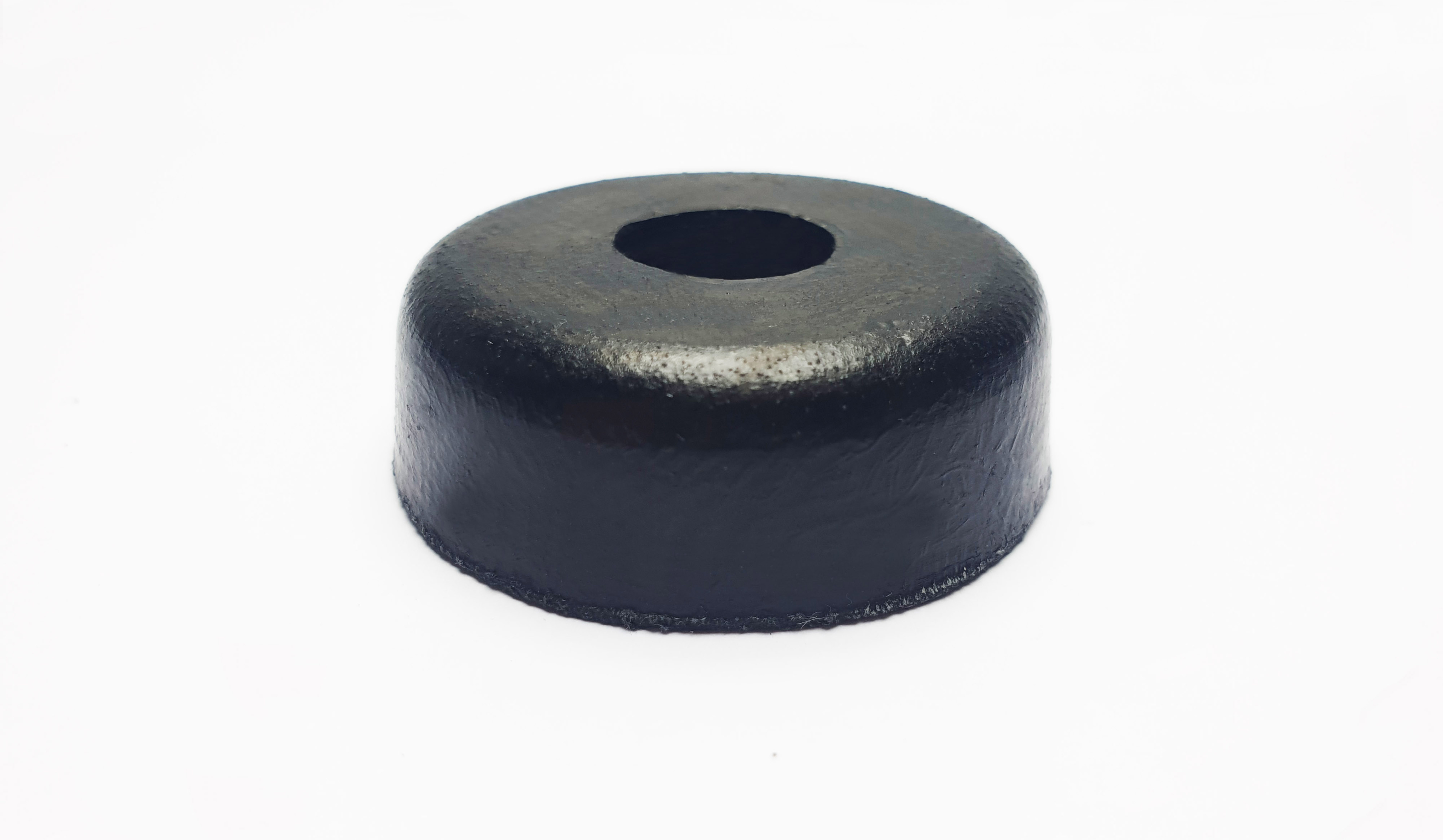

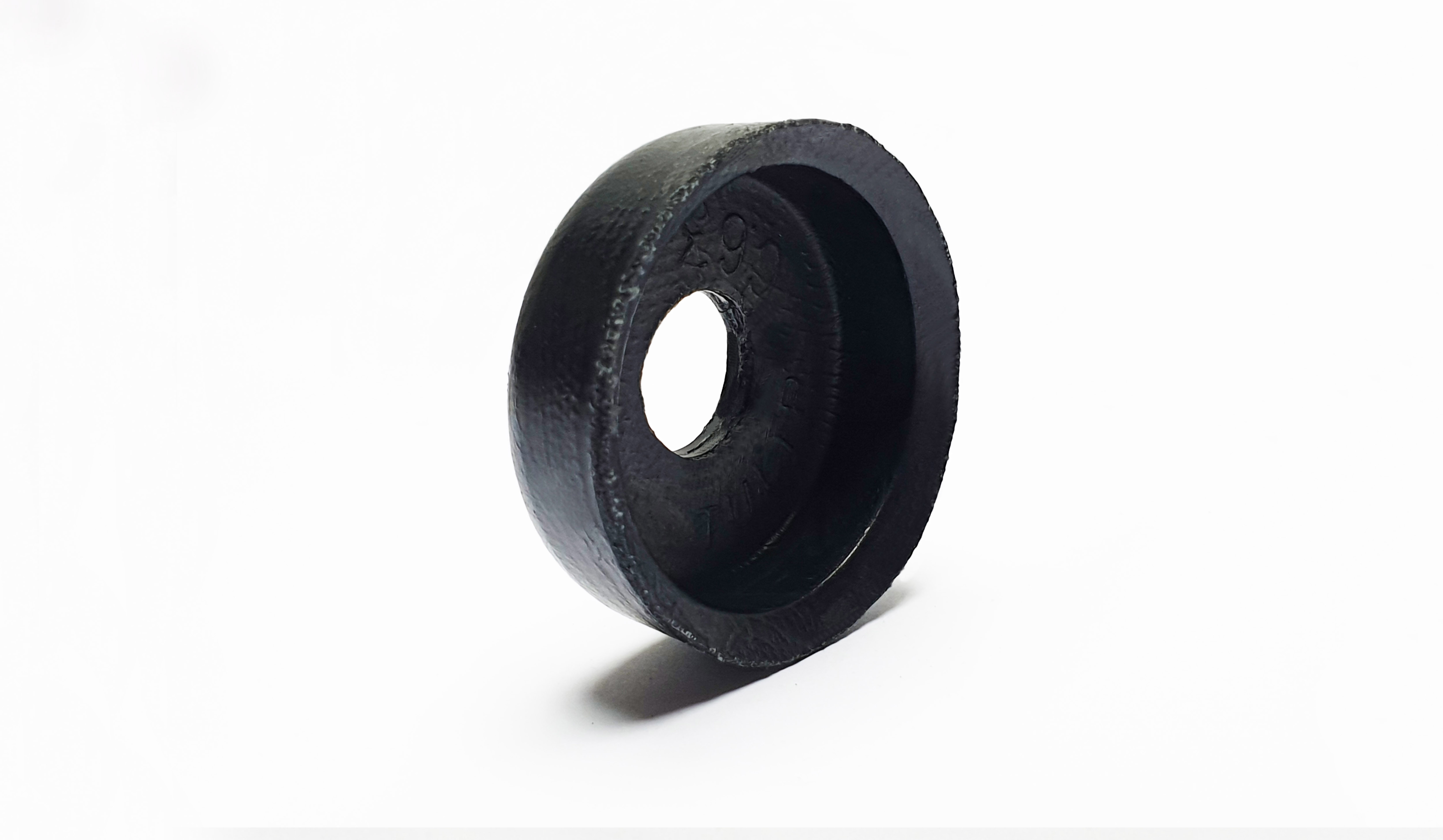

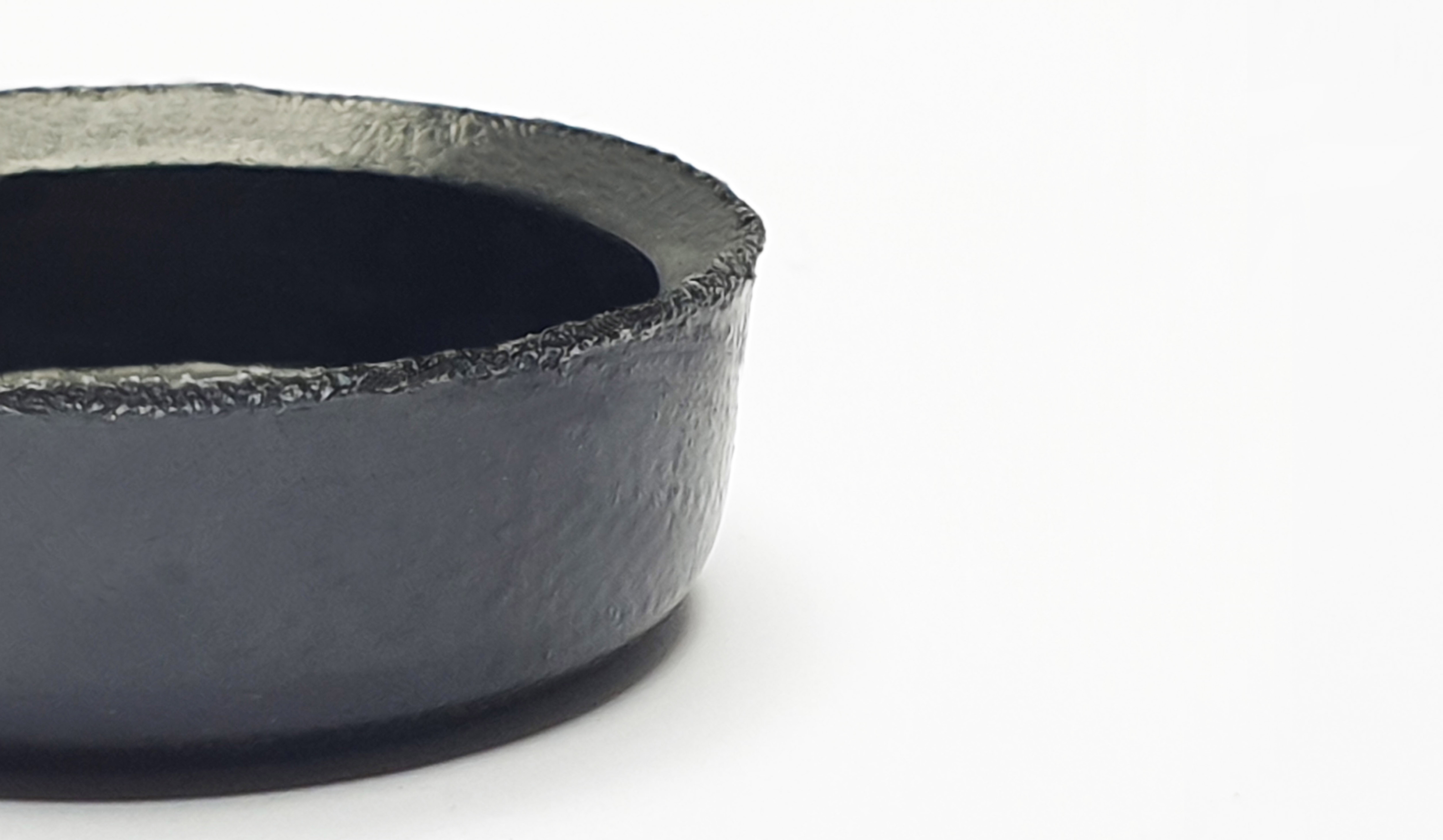

  • CUP-F Pneumatic Seal
  • The Pneumatic Seal is especially adapted to low speed and pressure situations
  • Design provides an extremely smooth, steady movement with less breakaway.
  • Provides effective sealing whilst providing the option of reducing the weight of the unit


Application

  • Primarily designed for low and medium pressure applications
  • Pressure range may be extended by the utilization of supporting back up rings


Fluids

  • Mineral based oils, water/glycol and water emulsions
