DAP-10x50x14-NBR

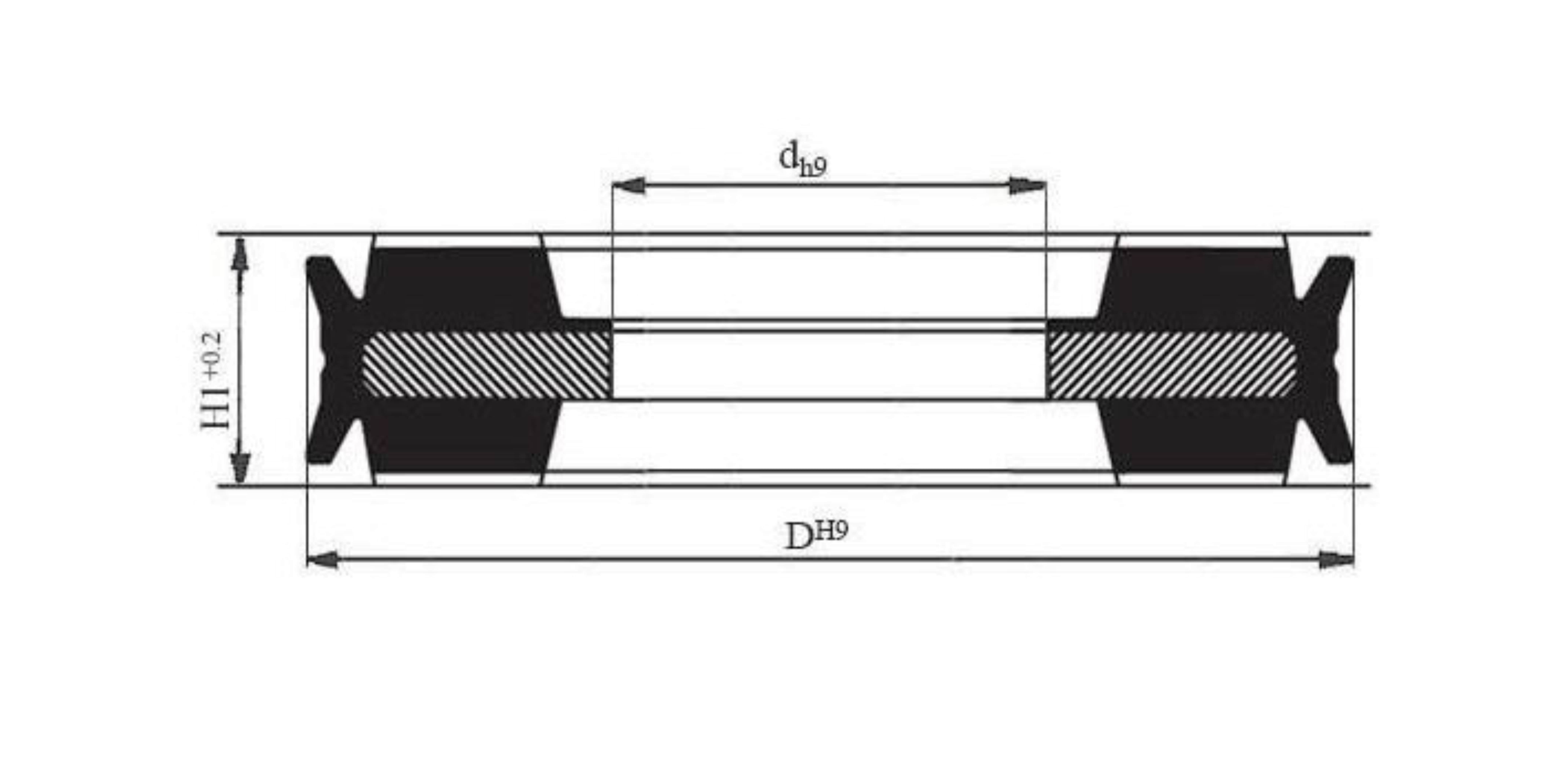

  • d (h9)
  • D (H9)
  • Material
  • H1+0.2
  • Unit

$ 26.14
$ 20.91 20.91 AUD

$ 26.14

Quantity
Your Price
1 - 4
$ 20.91
5 - 9
$ 19.87
10 - 24
$ 18.82
25 - 49
$ 16.99
50 +
$ 13.07

This combination does not exist.

Add to Cart

DAP 10 X 50 X 14 NBR

Details:

d (h9)
:
10mm
H1+0.2
:
14mm
D (H9)
:
50mm
Material
:
NBR
DAP-10x50x14-NBR

Design

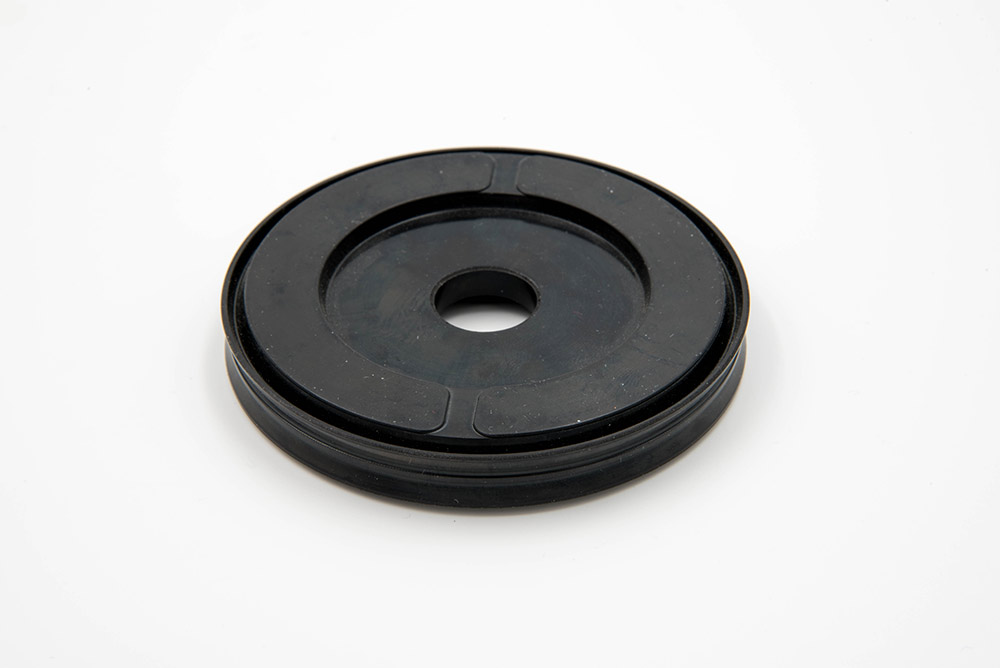

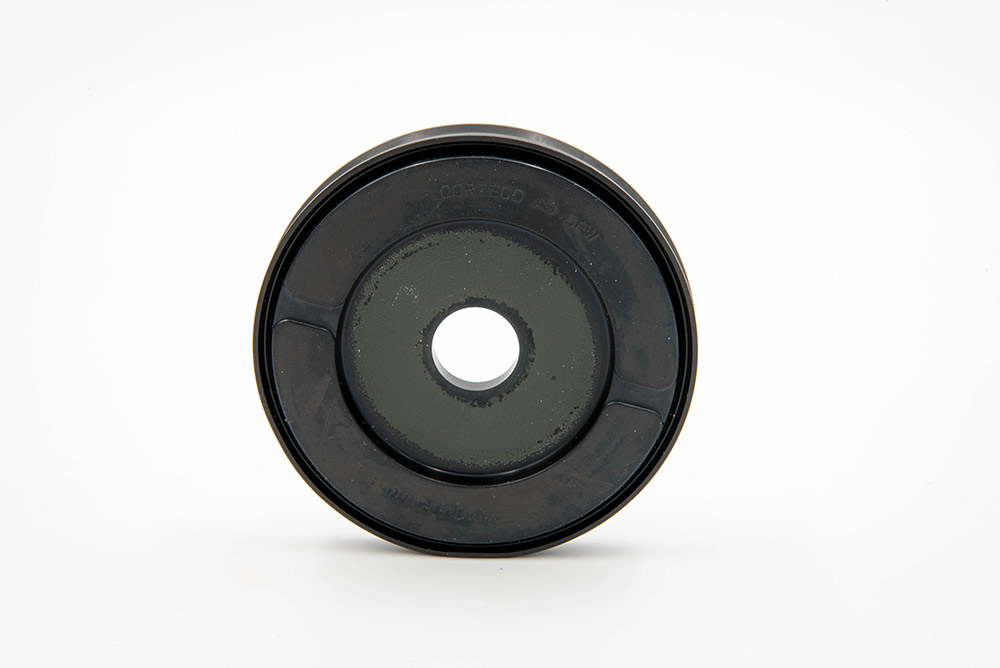

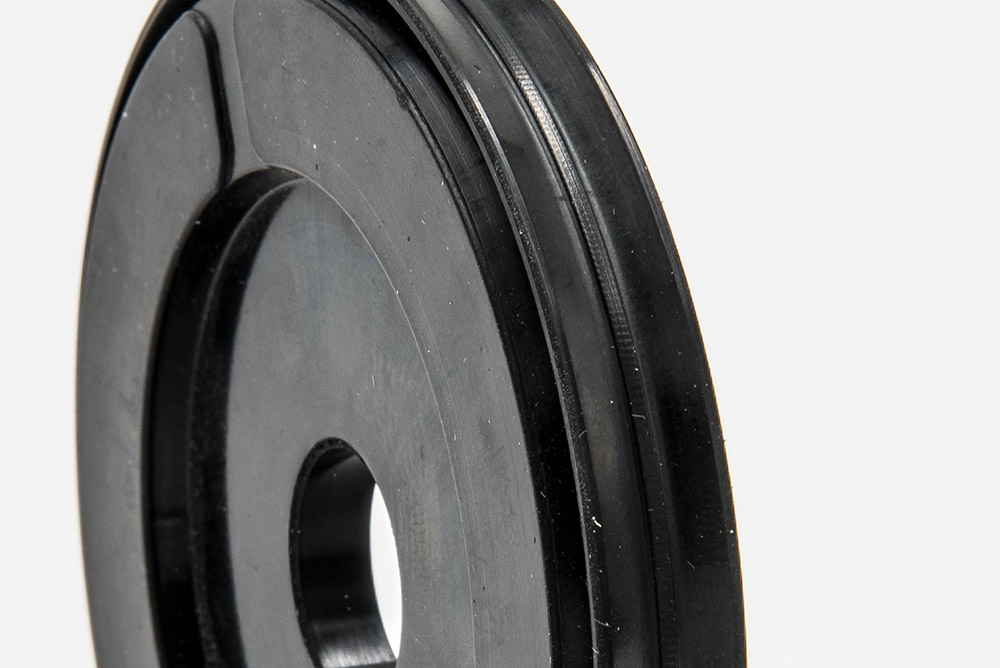

  • DAP Pneumatic Seal
  • The Pneumatic Seal is especially adapted to low speed and pressure situations
  • Design provides an extremely smooth, steady movement with less breakaway.
  • Provides effective sealing whilst providing the option of reducing the weight of the unit


Applications

  • Primarily designed for low and medium pressure applications
  • Pressure range may be extended by the utilization of supporting back up rings


Fluids

  • Mineral based oils, water/glycol and water emulsions
