PAEK-14x40x13.4-NBR

  • d (h9)
  • D (H9)
  • H
  • Material
  • Da
  • H1+0.2
  • Unit
  • d1
  • h
  • a

$ 14.85
$ 11.88 11.88 AUD

$ 14.85

Quantity
Your Price
1 - 4
$ 11.88
5 - 9
$ 11.29
10 - 24
$ 10.69
25 - 49
$ 9.65
50 +
$ 7.43

This combination does not exist.

Add to Cart

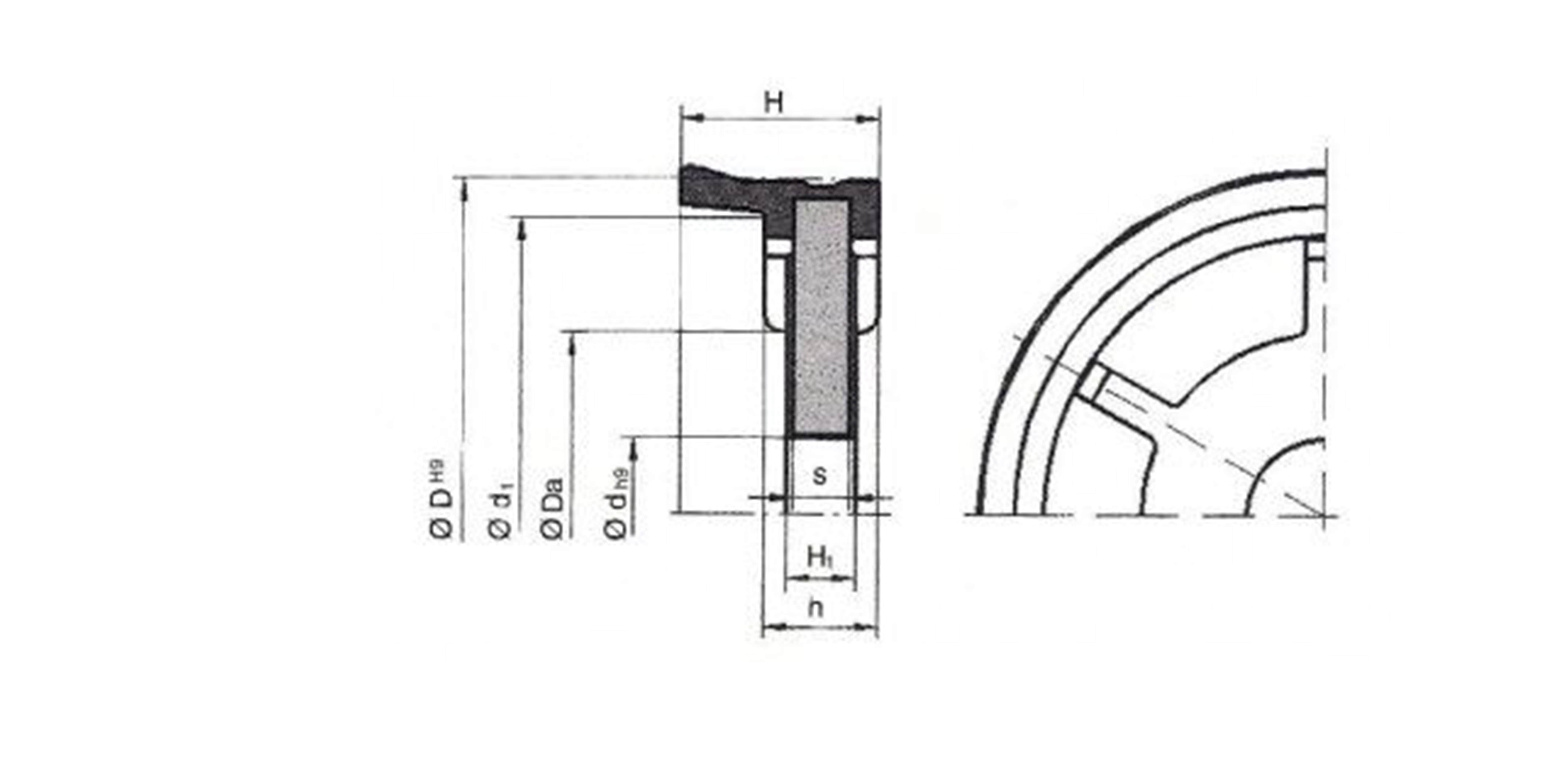

PAEK 14 X 40 X 13.4 NBR

Details:

d (h9)
:
14mm
Da
:
22mm
H1+0.2
:
4mm
d1
:
34mm
h
:
7mm
a
:
4mm
D (H9)
:
40mm
H
:
13.4mm
Material
:
NBR
PAEK-14x40x13.4-NBR

Design

  • PAEK Pneumatic Seal
  • The Pneumatic Seal is especially adapted to low speed and pressure situations
  • Design provides an extremely smooth, steady movement with less breakaway.
  • Provides effective sealing whilst providing the option of reducing the weight of the unit


Applications

  • Primarily designed for low and medium pressure applications
  • Pressure range may be extended by the utilization of supporting back up rings


Fluids

  • Mineral based oils, water/glycol and water emulsions
