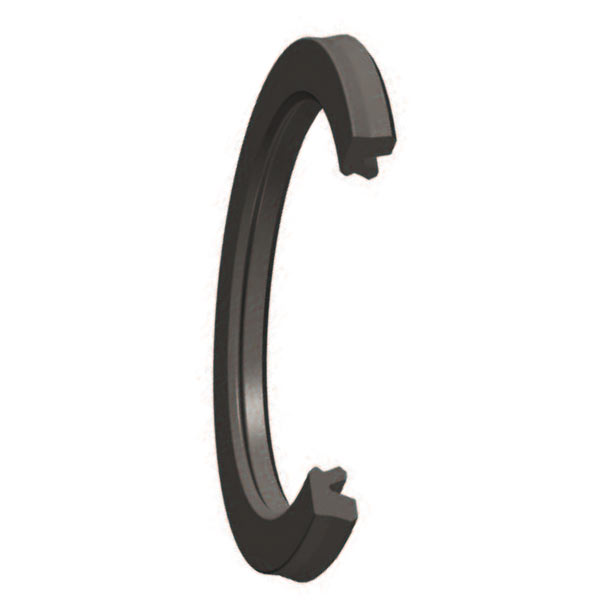

PAS9-17x24x2.55-NBR

  • d (h9)
  • D (H9)
  • H
  • Material
  • L
  • Unit

$ 14.08
$ 11.26 11.26 AUD

$ 14.08

Quantity
Your Price
1 - 4
$ 11.26
5 - 9
$ 10.70
10 - 24
$ 10.14
25 - 49
$ 9.15
50 +
$ 7.04

This combination does not exist.

Add to Cart

PAS9 17 X 24 X 2.55 NBR

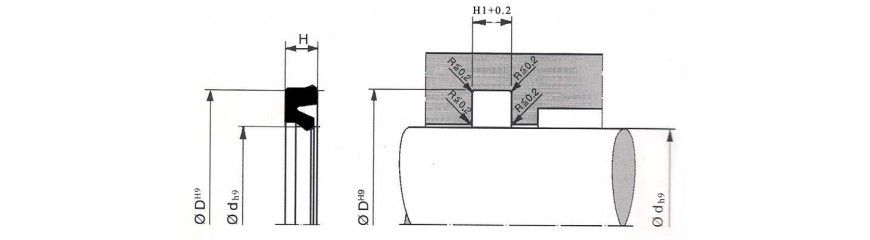

Details:

d (h9)
:
17mm
L
:
3mm
D (H9)
:
24mm
H
:
2.55mm
Material
:
NBR
PAS9-17x24x2.55-NBR

Design

  • PAS9 seal design is a breakthrough in pneumatics sealing. The material and profile of the dynamic sealing lip combines both low friction and ultra long life. PAS9 is designed to give significant improvements in cylinder performance in low lube air conditions and be used in long and short stroke applications. PAS9 can be used in single acting cylinders with a spring return as well as double acting applications.

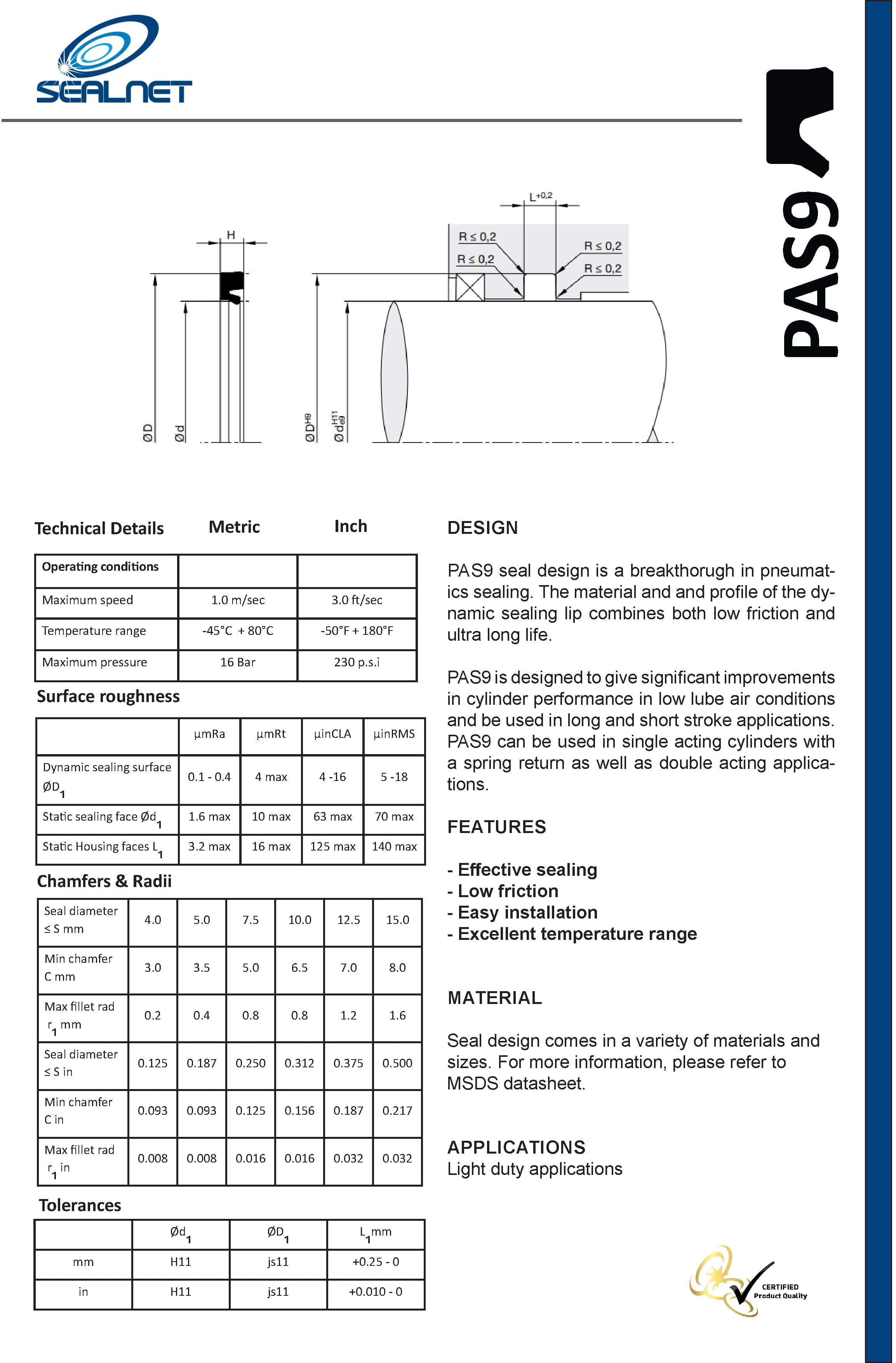

Download Datasheet


Features

  • Effective sealing
  • Low friction
  • Easy installation
  • Excellent temperature range


Applications

  • Light duty applications
