1. PK20-0.943x1.187x0.187-COMPO
  2. PK20
  3. Double Acting/Piston Seals
  4. Standard Seals

PK20-0.943x1.187x0.187-COMPO

  • d (h9)
  • D (H9)
  • Material
  • H1+0.2
  • Unit

$ 13.66
$ 10.93 10.93 AUD

$ 13.66

Quantity
Your Price
1 - 4
$ 10.93
5 - 9
$ 10.38
10 - 24
$ 9.83
25 - 49
$ 8.88
50 +
$ 6.83

This combination does not exist.

Add to Cart

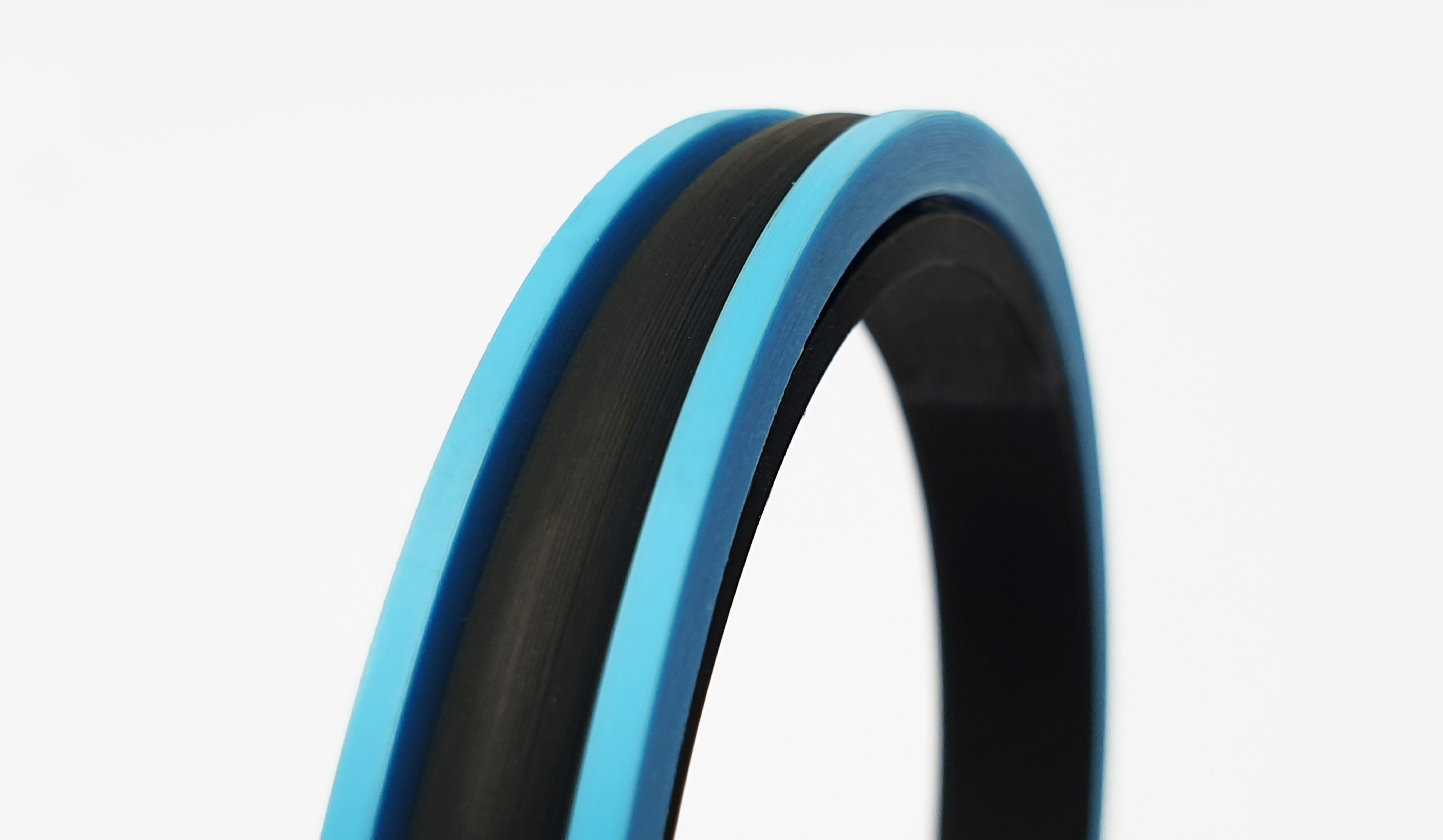

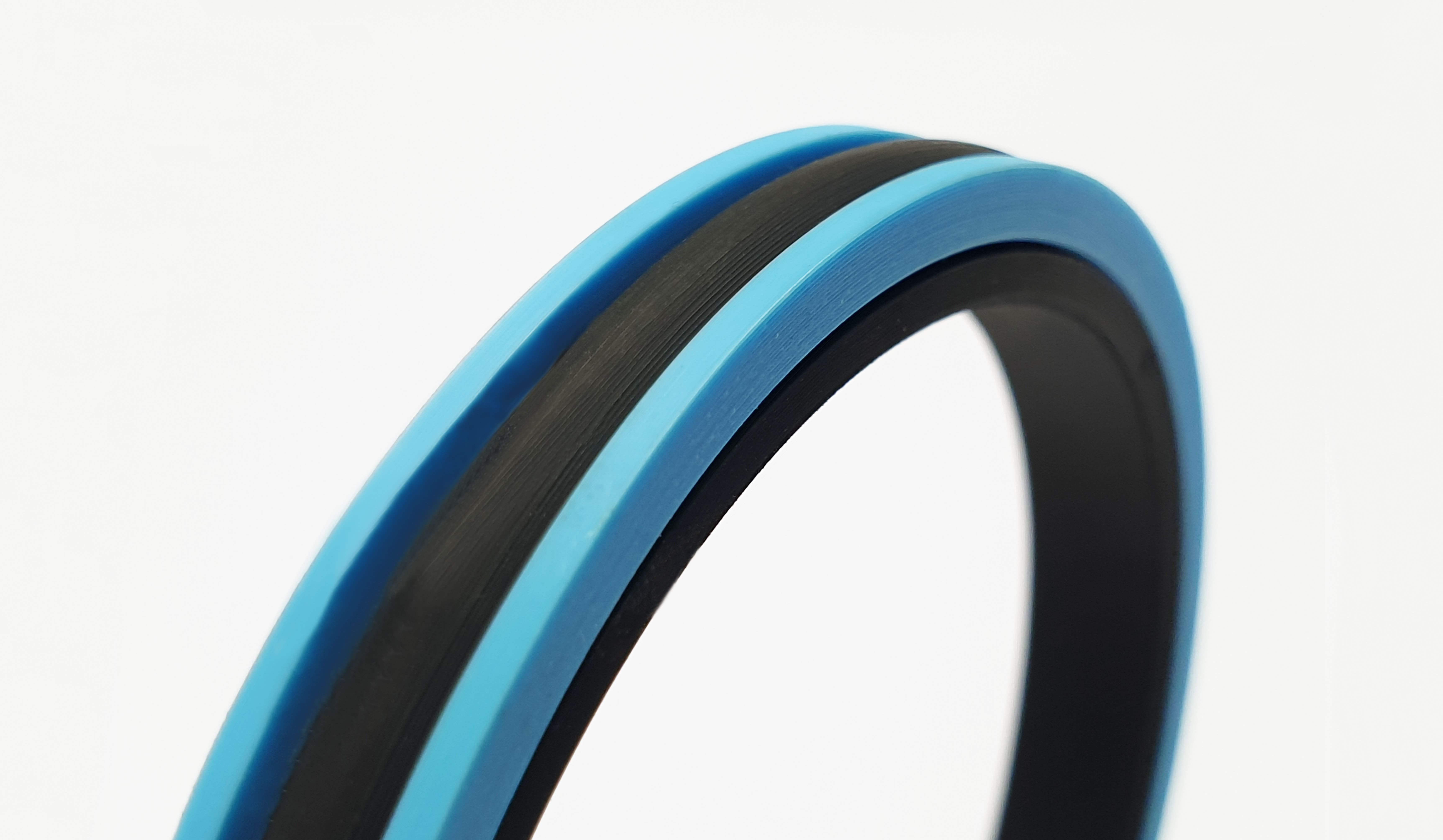

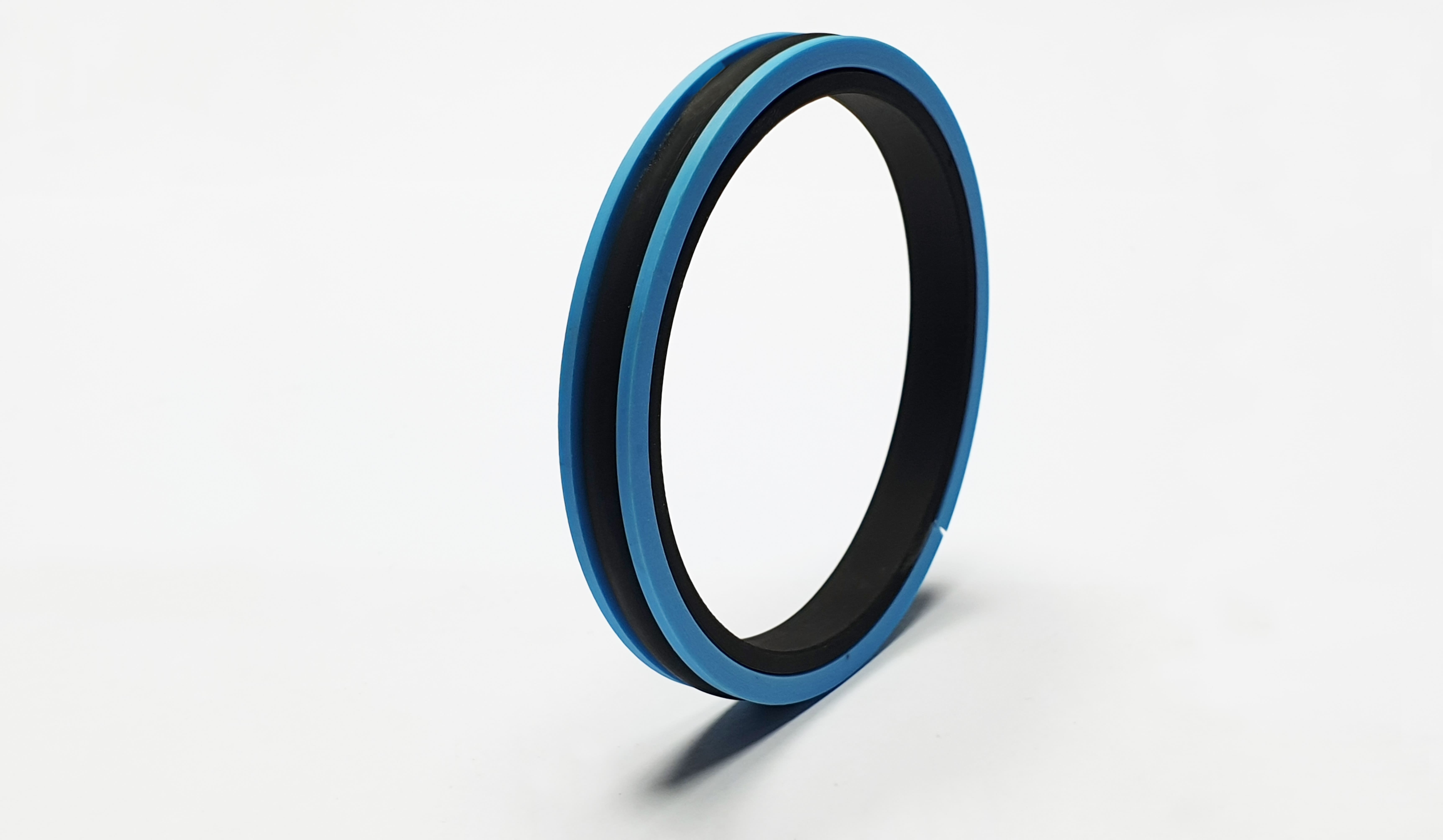

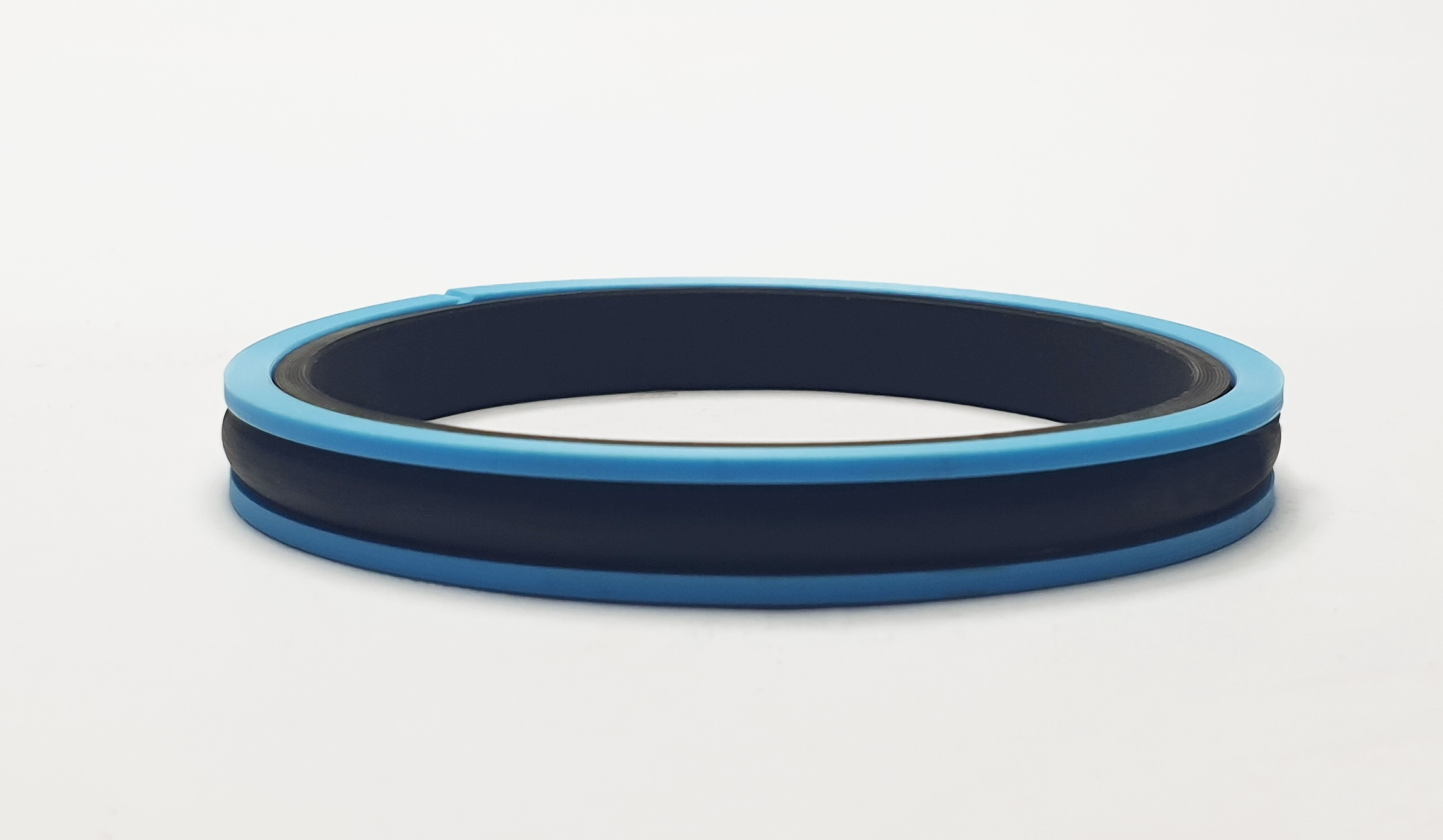

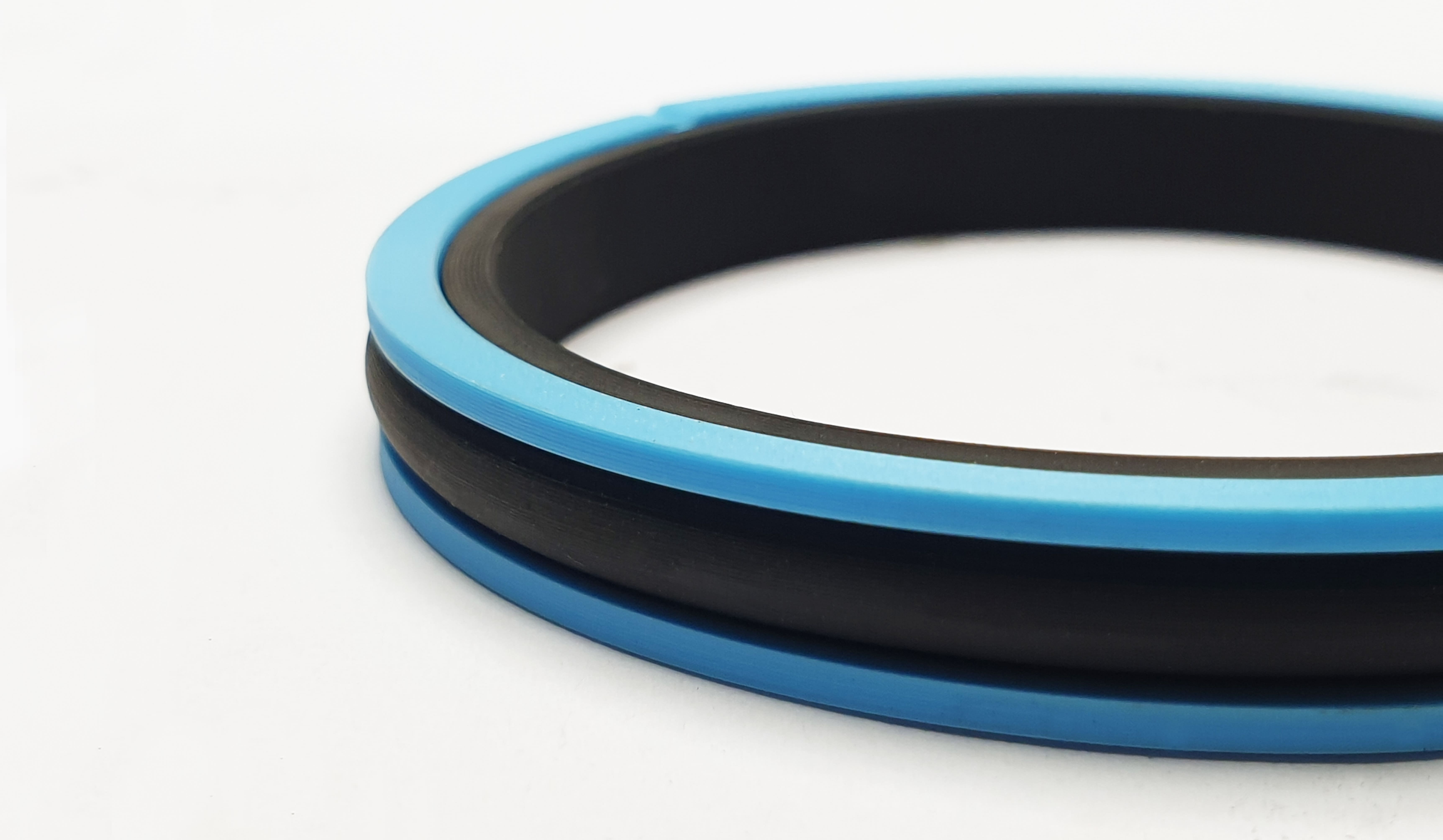

PK20 0.943" X 1.187" X 0.187" COMPO

Details:

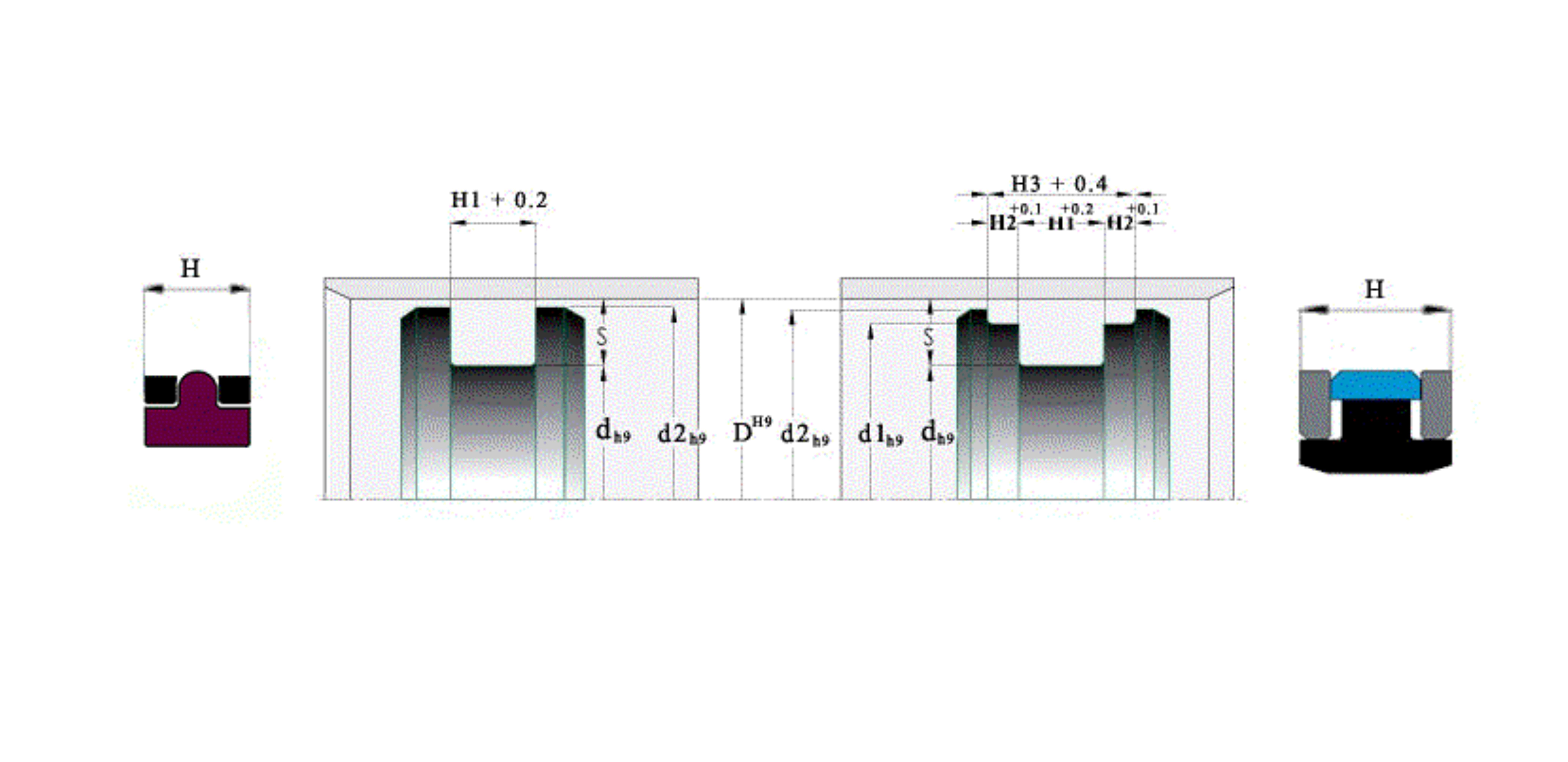

d (h9)
:
0.943" (23.95mm)
H1+0.2
:
0.187" (4.75mm)
D (H9)
:
1.187" (30.15mm)
Material
:
COMPO
PK20-0.943x1.187x0.187-COMPO

Design

  • PK20 seal design is constructed with a tough wear resistance polyurethane which is loaded with a nitrile energizer. Sealing face design can be made in various material options which included PTFE or lubricated polyester.
Download Datasheet


Features

  • High shock load capability
  • High pressure capability


Applications

  • The seal can be considered for use in heavy duty applications when used with a suitable full depth back-up ring


Fluids

  • Hydraulic fluids, petroleum fuels and oils
