PK58-50x70x22/42-COMPO

  • d (h9)
  • D (H9)
  • Material
  • H2
  • H1+0.2
  • H3
  • Unit
  • d1
  • d2

$ 54.11
$ 43.29 43.29 AUD

$ 54.11

Quantity
Your Price
1 - 4
$ 43.29
5 - 9
$ 41.12
10 - 24
$ 38.96
25 - 49
$ 35.17
50 +
$ 27.05

This combination does not exist.

Add to Cart

PK58 50 X 70 X 22 / 42 COMPO

Details:

d (h9)
:
50mm
H2
:
10mm
H1+0.2
:
22mm
H3
:
42mm
d1
:
64mm
d2
:
68mm
D (H9)
:
70mm
Material
:
COMPO
PK58-50x70x22/42-COMPO

Design

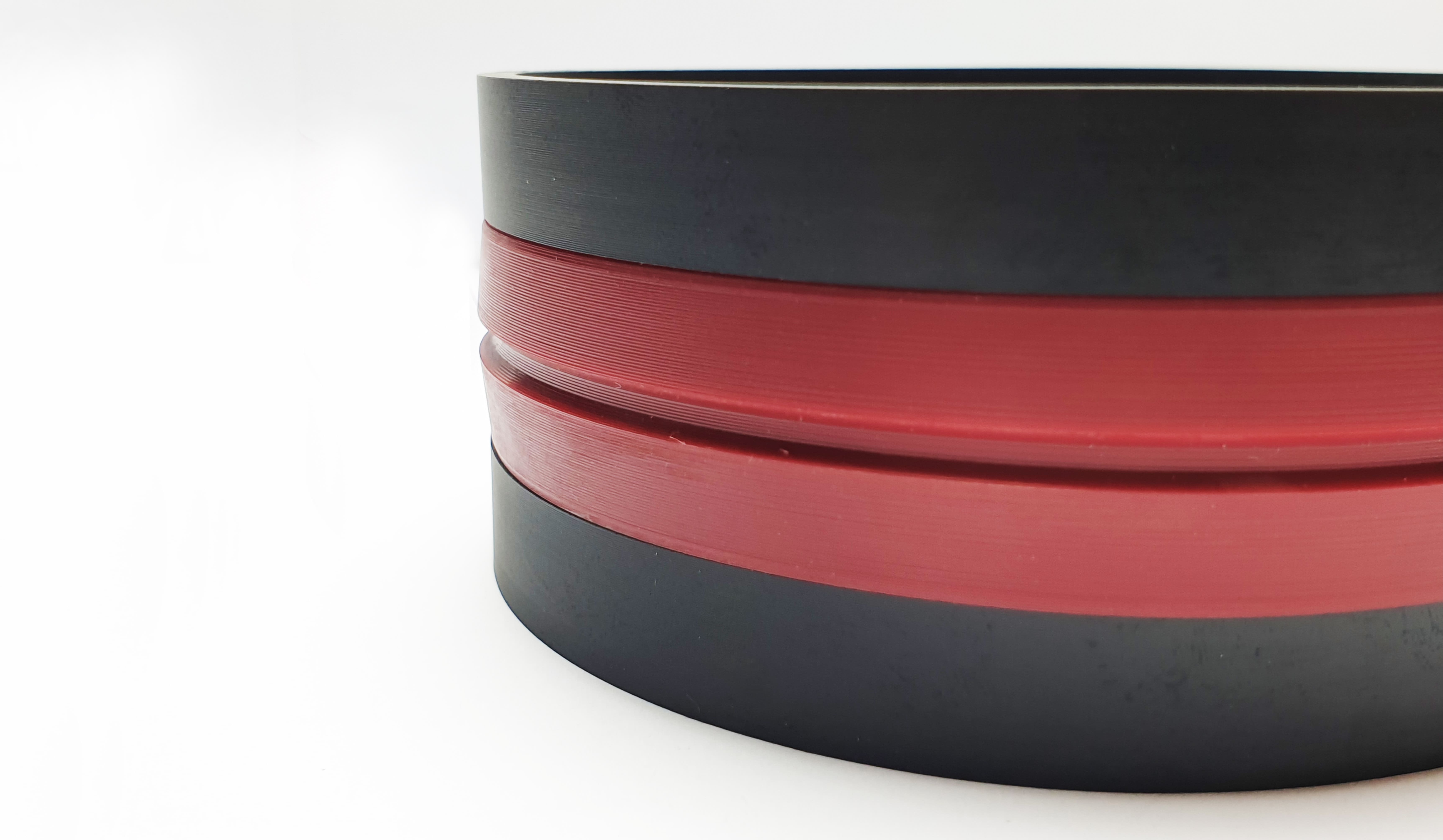

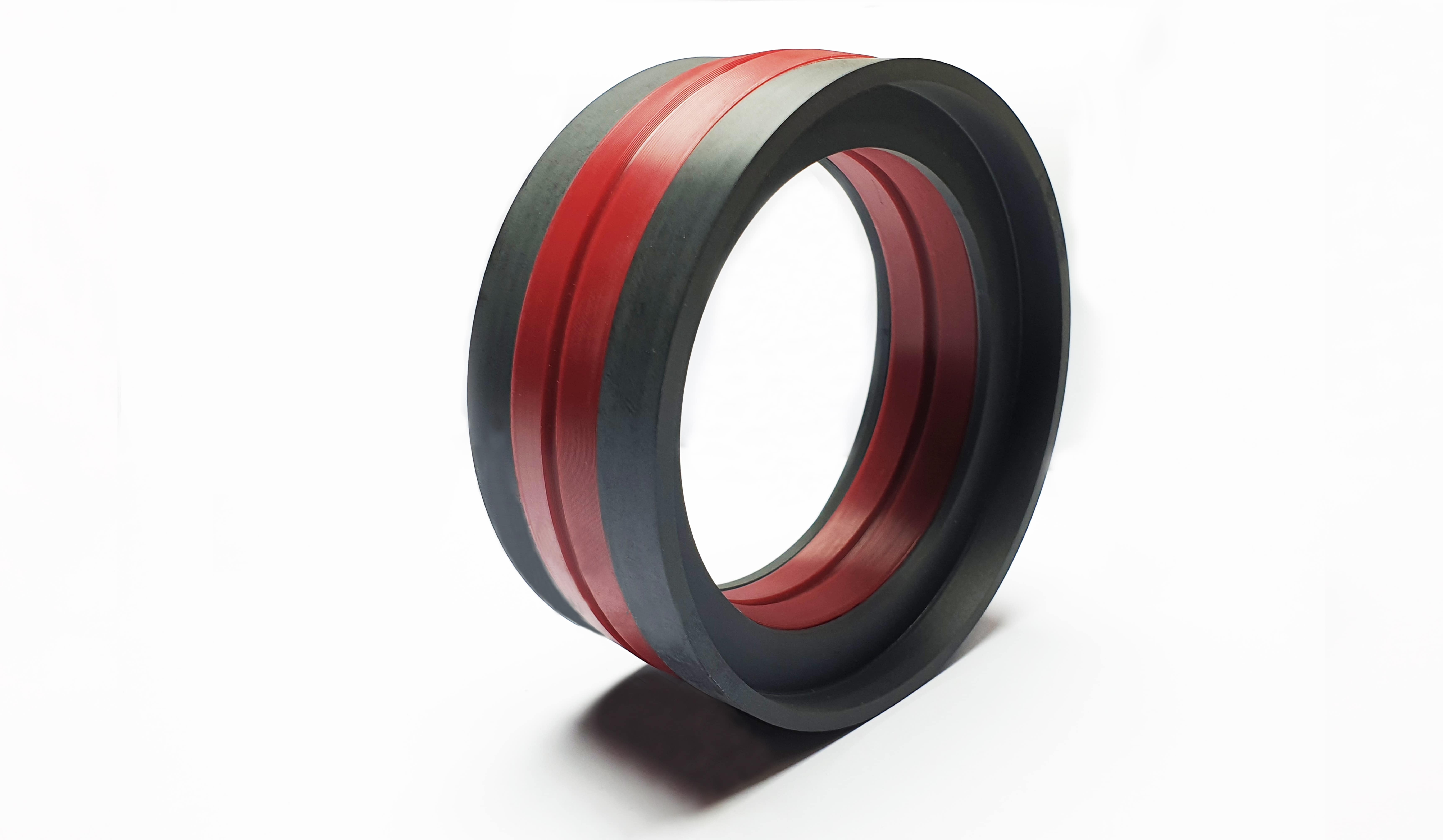

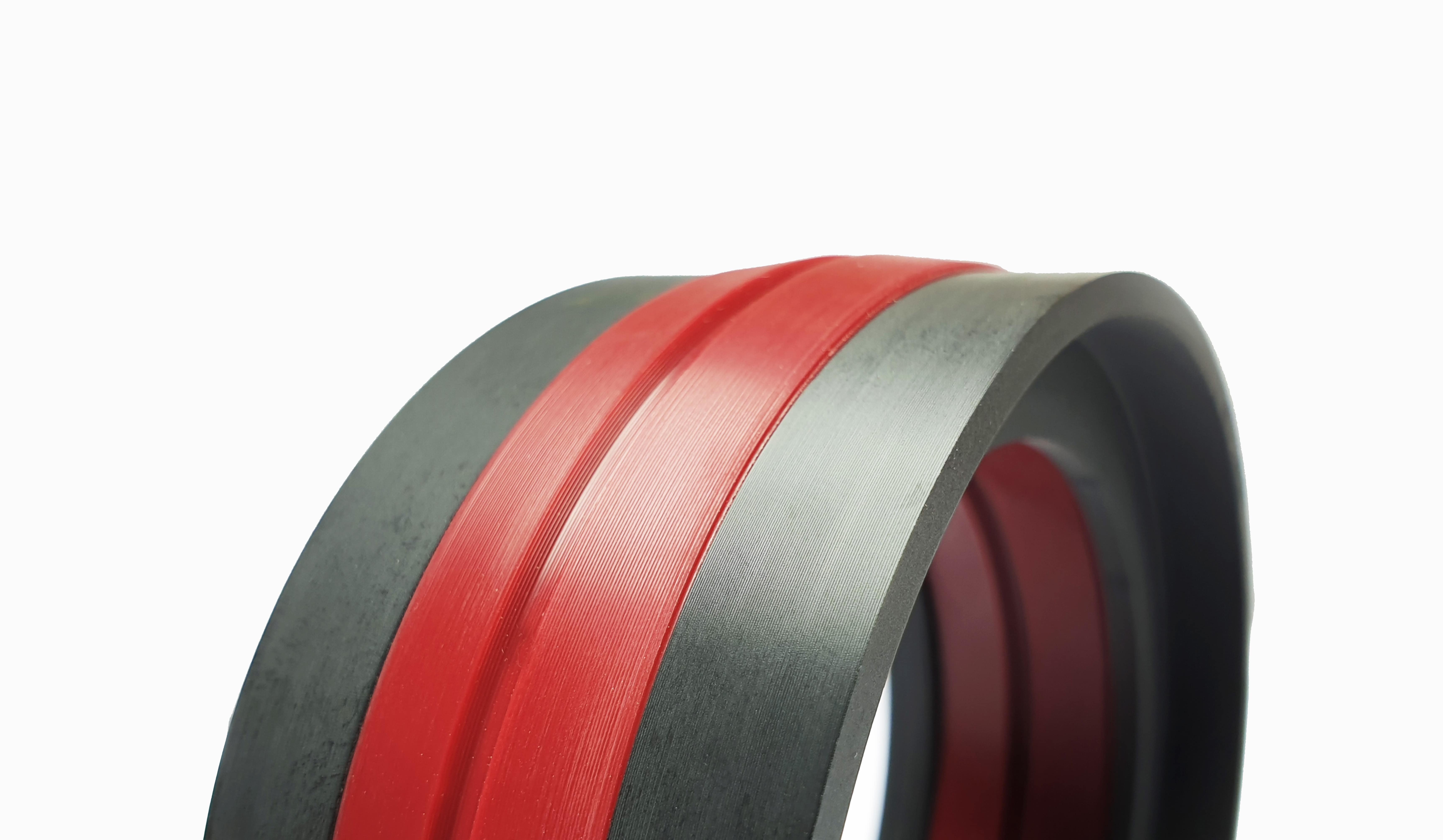

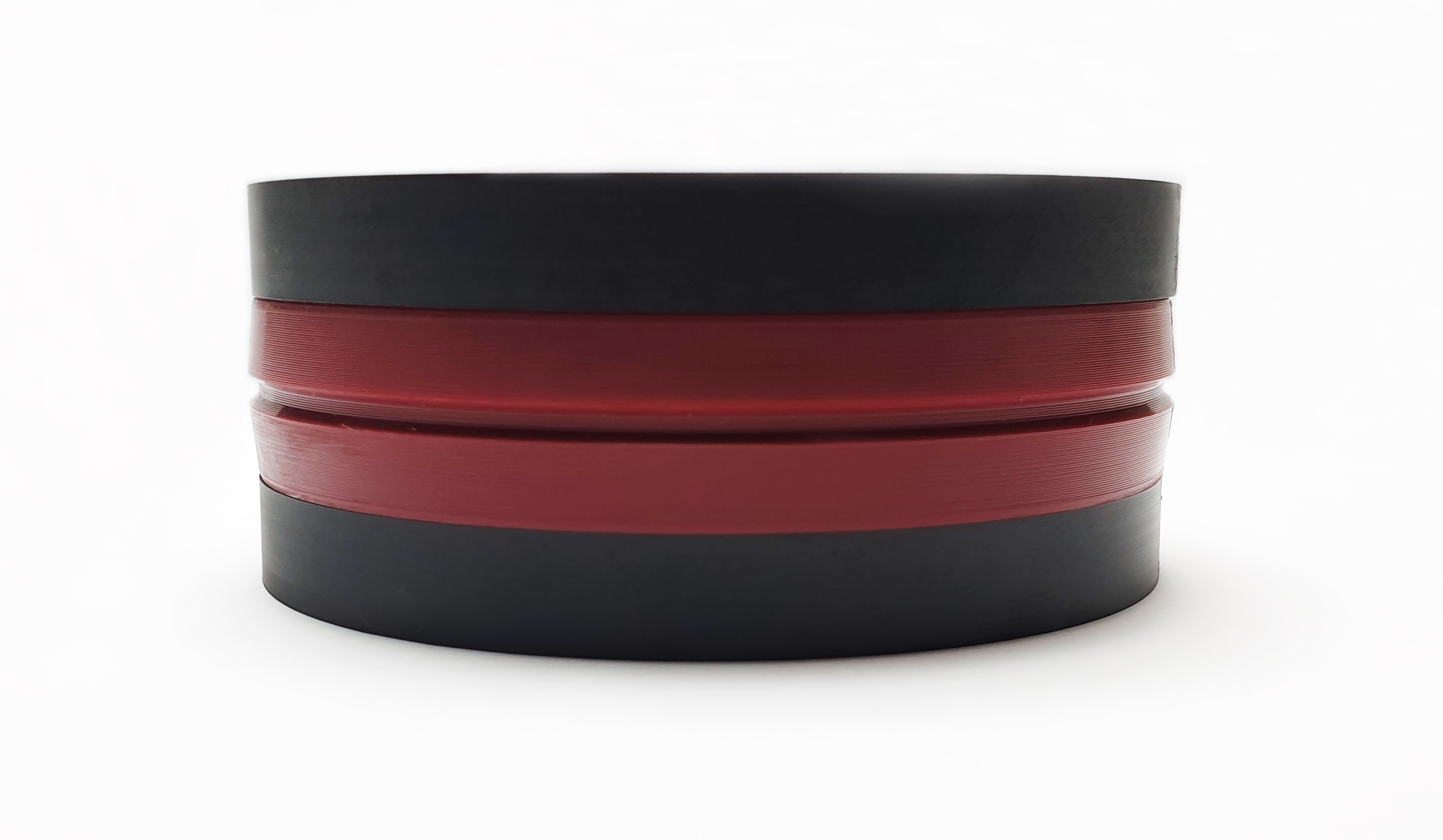

  • PK58 is a double acting piston seal that has a robust heavy duty seal assembly for split pistons. It allows the use of larger clearances and with the use of bearing rings, is to restrict the piston length. The seal design consists of a seal and two L shaped bearings. The center of the seal is bonded to two 'U' section bases and is compressed by the housing to obtain an effective low pressure seal.
Download Datasheet


Features

  • Flexible for easy installation
  • Well proven design
  • Tolerant to contamination
  • High pressure capability
  • Comes in a wide range of sizes


Applications

  • Light duty applications
