PK58-70x80x11/19-COMPO

Tech

d (h9)
D (H9)
H
Material
H2
H1+0.2
H3
d1h9
Unit

$ 85.72
$ 68.58 68.58 AUD

$ 85.72

Quantity

Your Price

1 - 4

$ 68.58

5 - 9

$ 65.15

10 - 24

$ 61.72

25 - 49

$ 55.72

50 +

$ 42.86

This combination does not exist.

Add to Cart

Description
Technical Details

PK17PB 70 X 80 X 11 / 19 COMPO

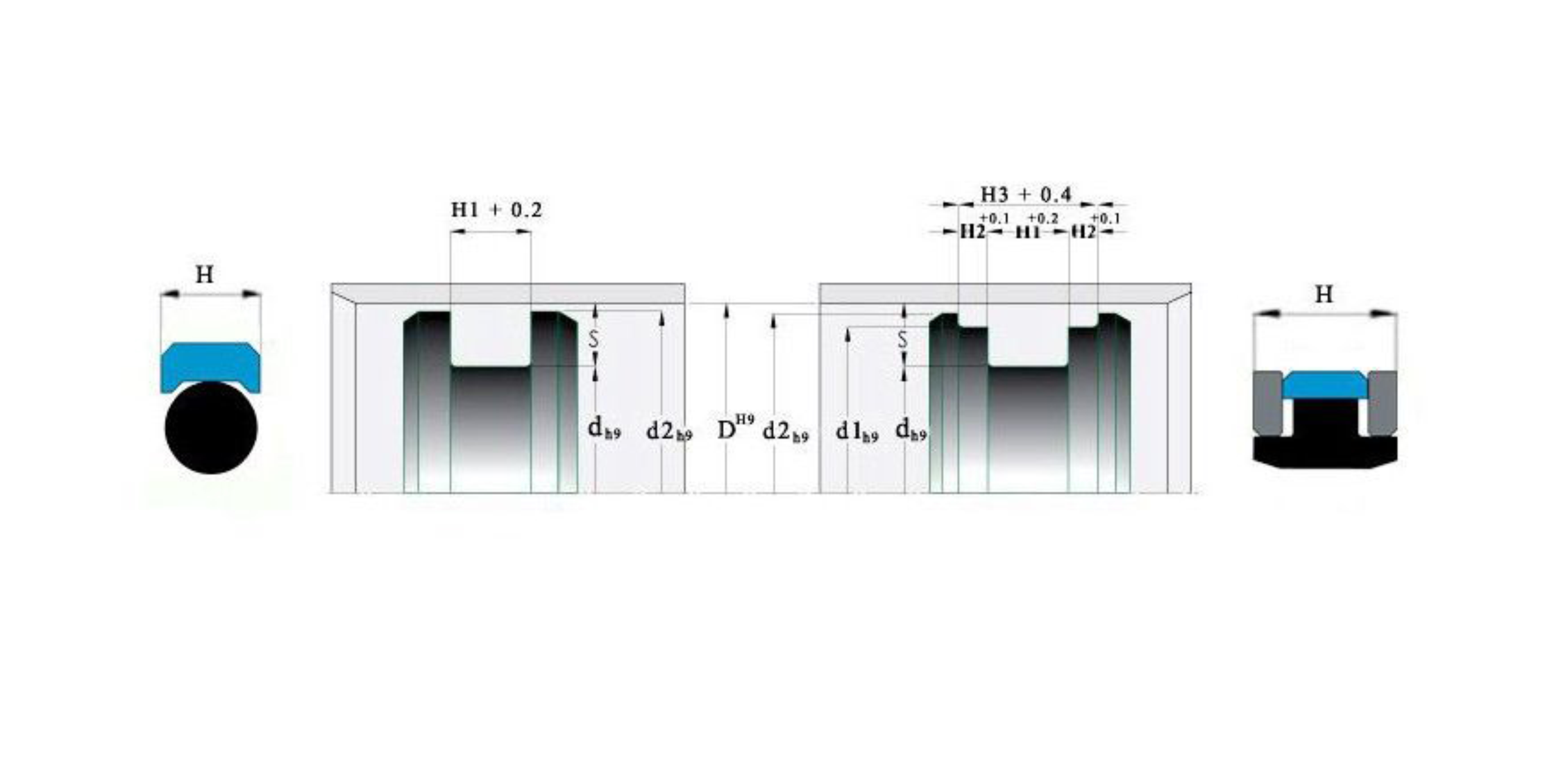

Details:

d (h9)

:

70mm

H2

:

4mm

H1+0.2

:

11.5mm

H3

:

19mm

d1h9

:

75.4mm

D (H9)

:

80mm

H

:

18mm

Material

:

COMPO

PK58-70x80x11/19-COMPO

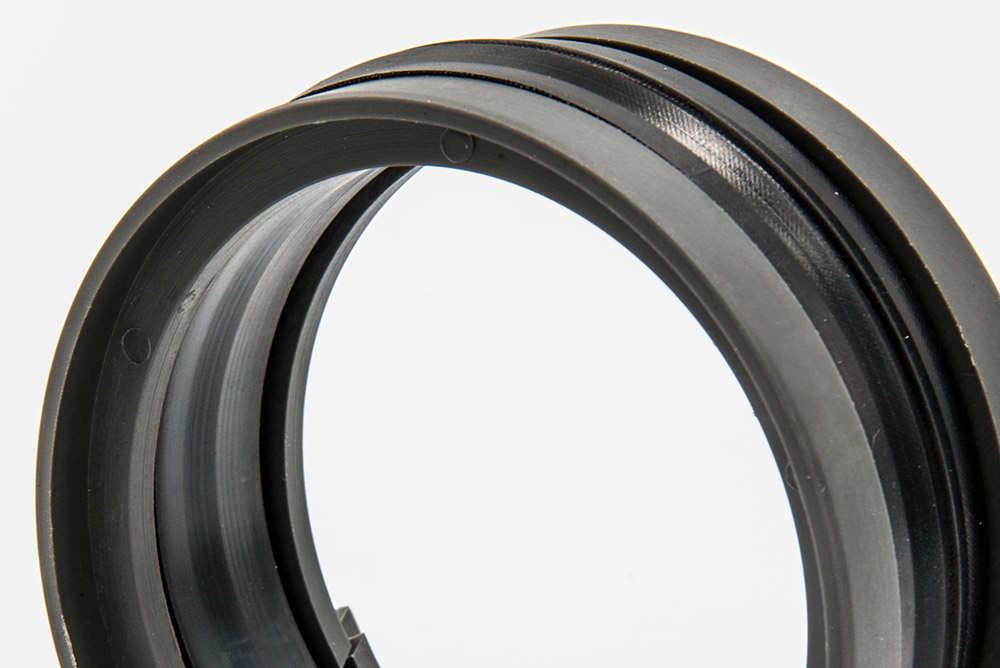

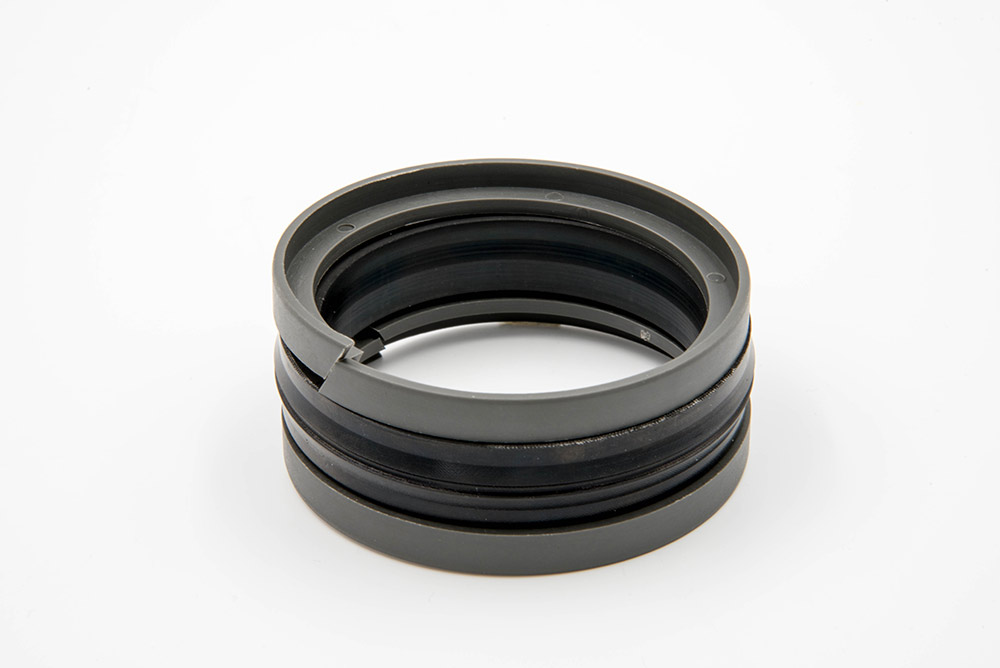

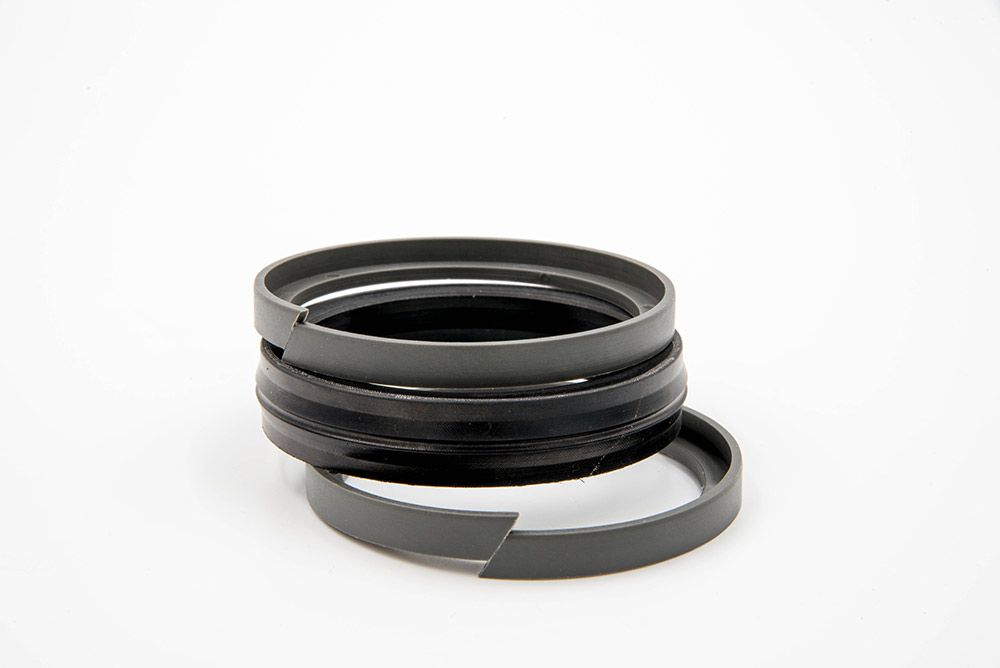

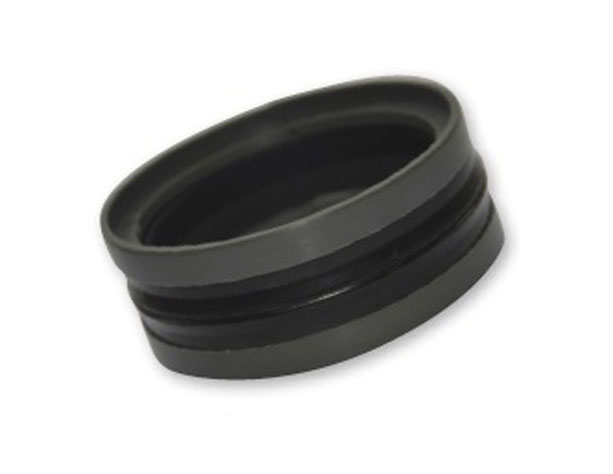

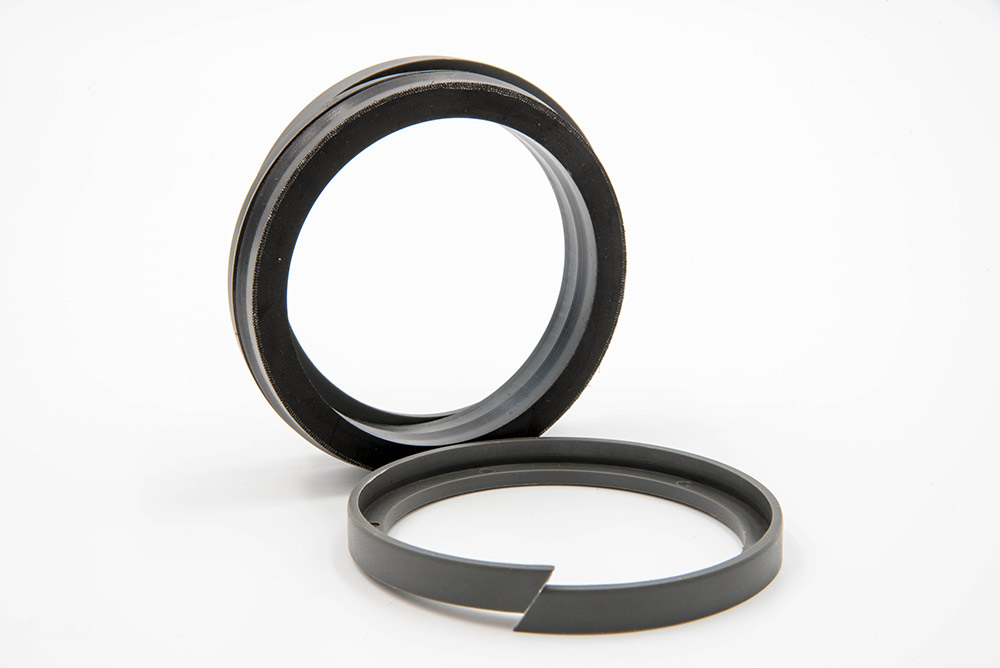

PK17PB is a compact double acting seal assembly for one piece pistons. The seal is designed to have its section compressed by the housing to ensure a good low pressure seal. When pressurized, it is protected from extrusion damage by the profiled support rings. Additionally, wear rings are fitted into a recess in the support ring, being pressure activated, it helps to guide and support the piston and eliminating any metal to metal contact.

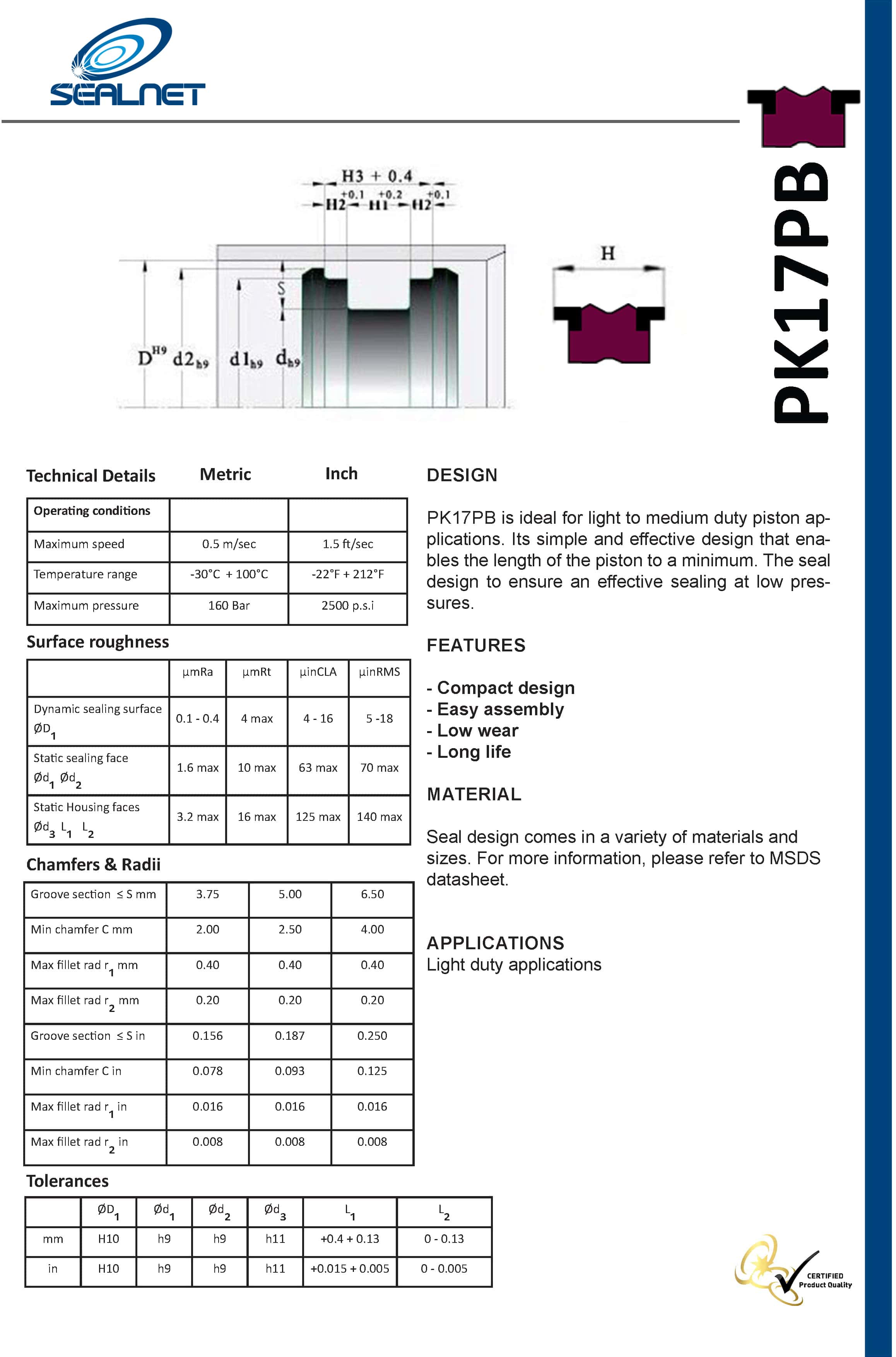

Download Datasheet

Compact design
Easy installation and assembly
Low wear
Long life
Comes in a wide range of sizes and materials

Hydraulic fluids, petroleum fuel and oil
