1. PK8C-75.6x85x8.8-COMPO
  2. PK8C
  3. Double Acting/Piston Seals
  4. Standard Seals

PK8C-75.6x85x8.8-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • O-Ring
  • Unit

$ 35.67
$ 28.54 28.54 AUD

$ 35.67

Quantity
Your Price
1 - 4
$ 28.54
5 - 9
$ 27.11
10 - 24
$ 25.68
25 - 49
$ 23.19
50 +
$ 17.84

This combination does not exist.

Add to Cart



Details:

d (h9)
:
75.6mm
H1+0.2
:
8.8mm
O-Ring
:
75.57x5.34 (BS337)
D (H9)
:
85mm
H
:
8.4mm
Material
:
COMPO
PK8C-75.6x85x8.8-COMPO

Design

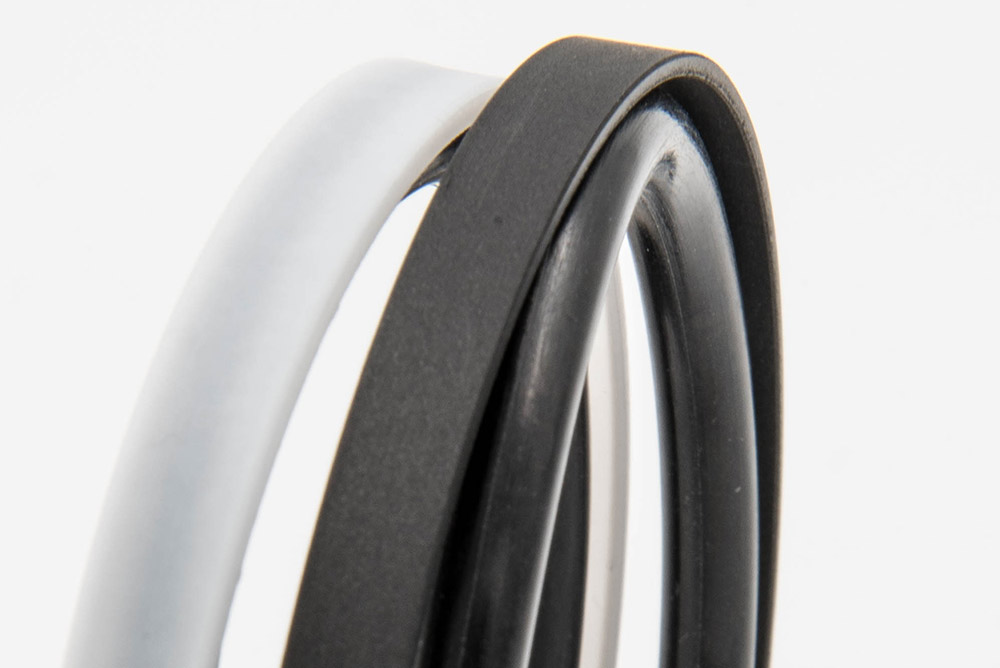

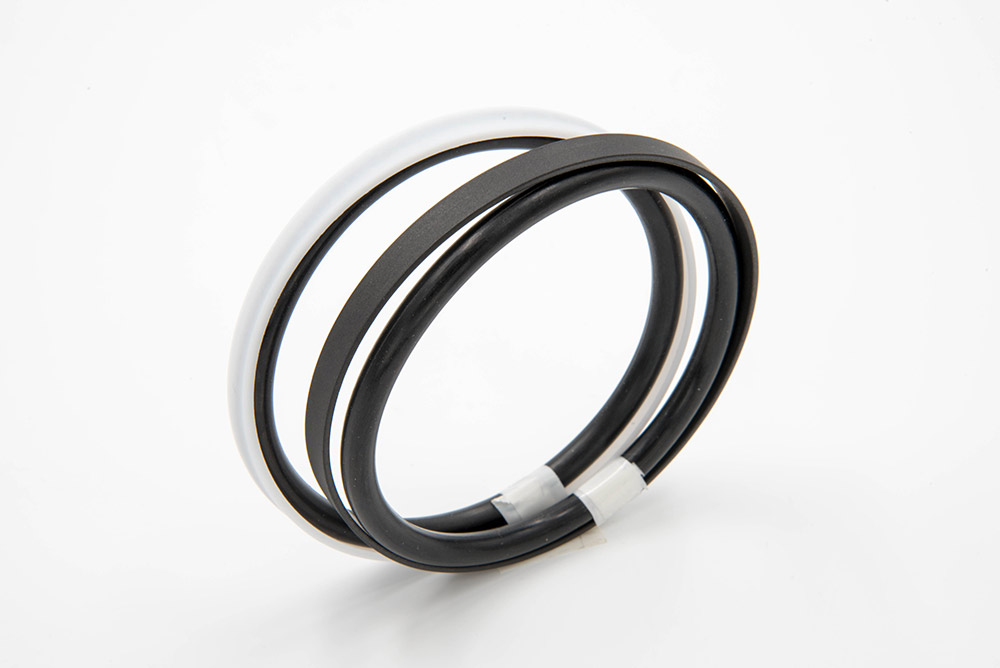

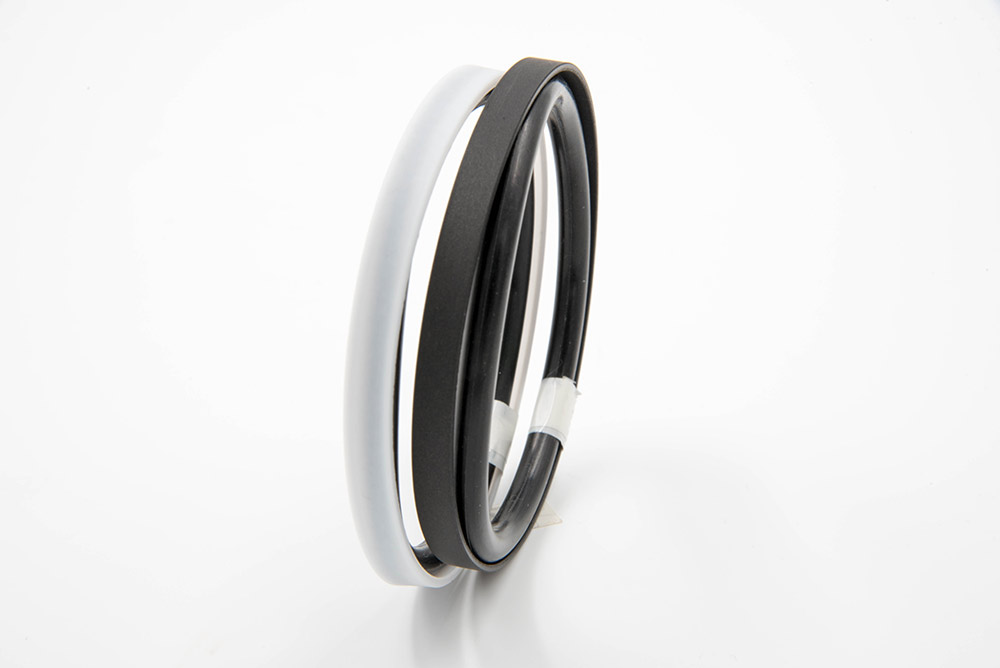

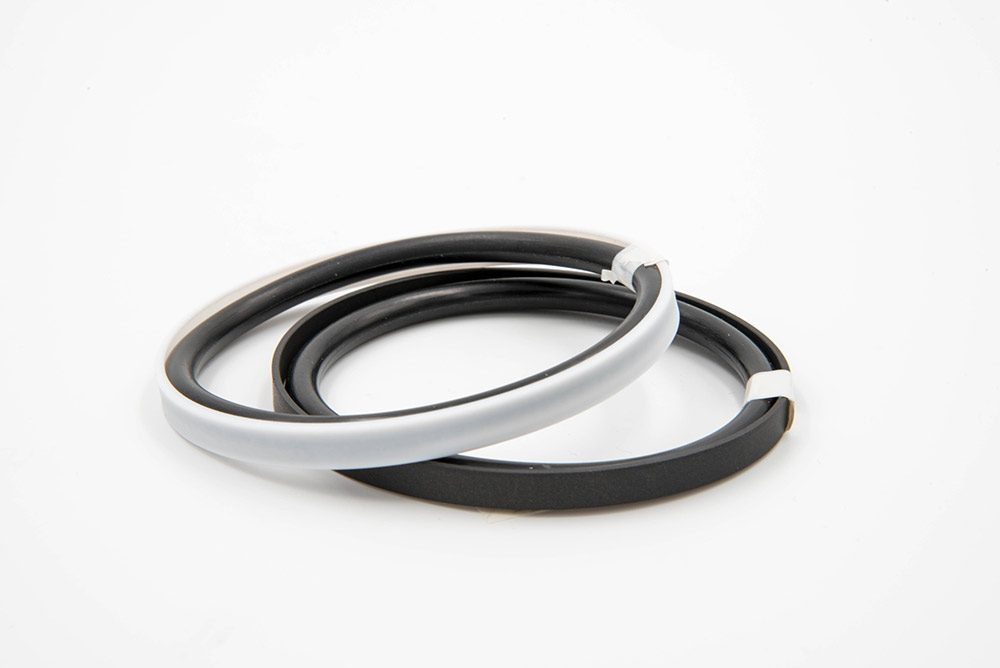

  • PK8C is a double acting piston seal that is suited for one piece pistons. It has a PTFE seal face with nitrile energizer and dual face materials which gives pressure capability options. It is excellent for stick slip and high speed movements. PK8C is not suitable for a cylinder expected to hold position.

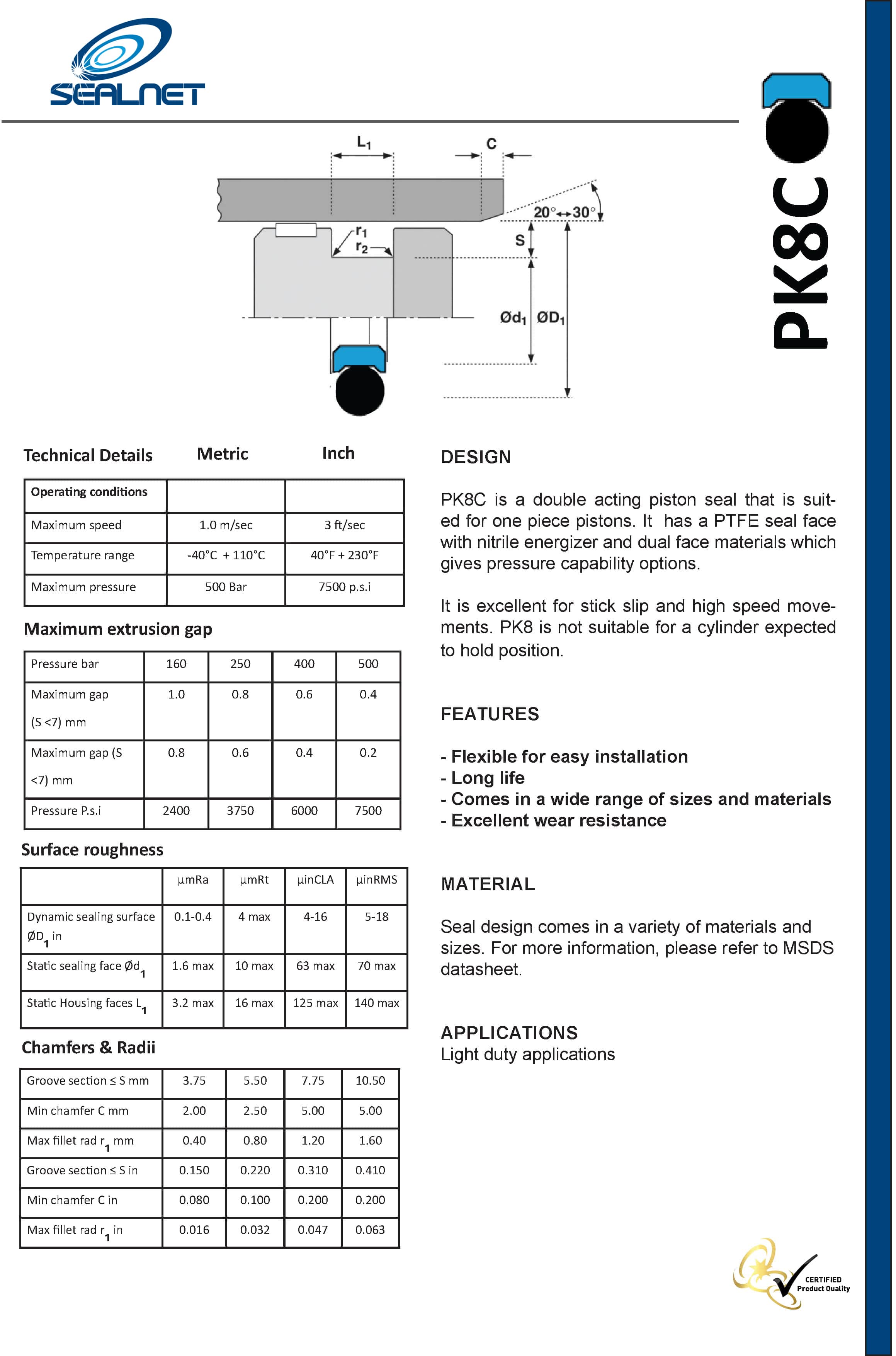

Download Datasheet


Features

  • Flexible for easy installation\
  • Long life
  • Comes in a wide range of sizes and materials
  • Excellent wear resistance


Applications

  • Light duty applications
