PKDAS-2.25x2.75x0.66/1.16-COMPO

  • d (h9)
  • D (H9)
  • Material
  • H1+0.2
  • H3
  • d1h9
  • Unit

$ 44.94
$ 35.95 35.95 AUD

$ 44.94

Quantity
Your Price
1 - 4
$ 35.95
5 - 9
$ 34.15
10 - 24
$ 32.35
25 - 49
$ 29.21
50 +
$ 22.47

This combination does not exist.

Add to Cart

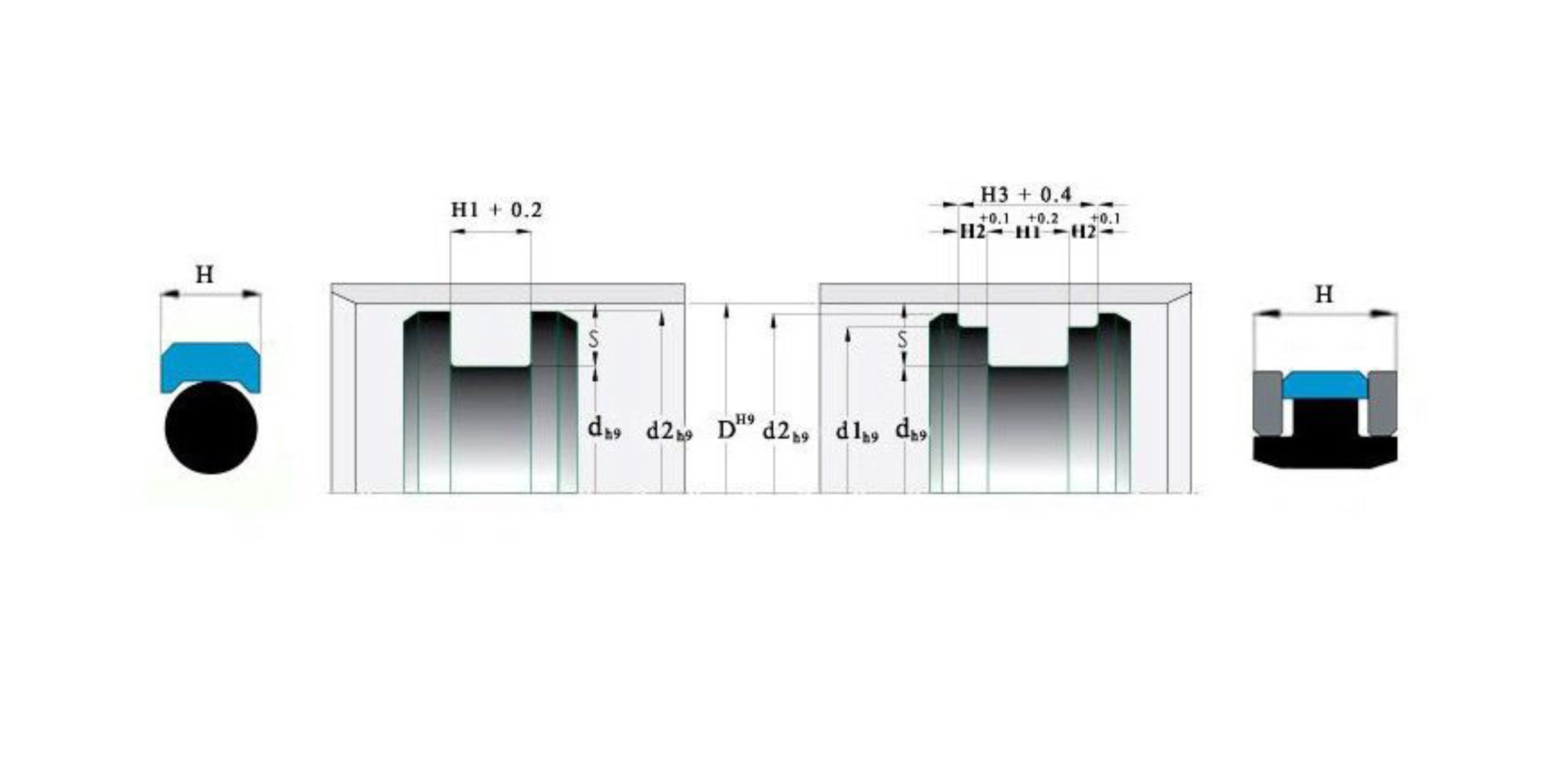

PKDAS 2.25" X 2.75" X 0.66 / 1.16" COMPO

Details:

d (h9)
:
2.25" (57.15mm)
H1+0.2
:
0.66" (16.76mm)
H3
:
1.16" (29.46mm)
d1h9
:
2.57" (65.28mm)
D (H9)
:
2.75" (69.85mm)
Material
:
COMPO
PKDAS-2.25x2.75x0.66/1.16-COMPO

Design

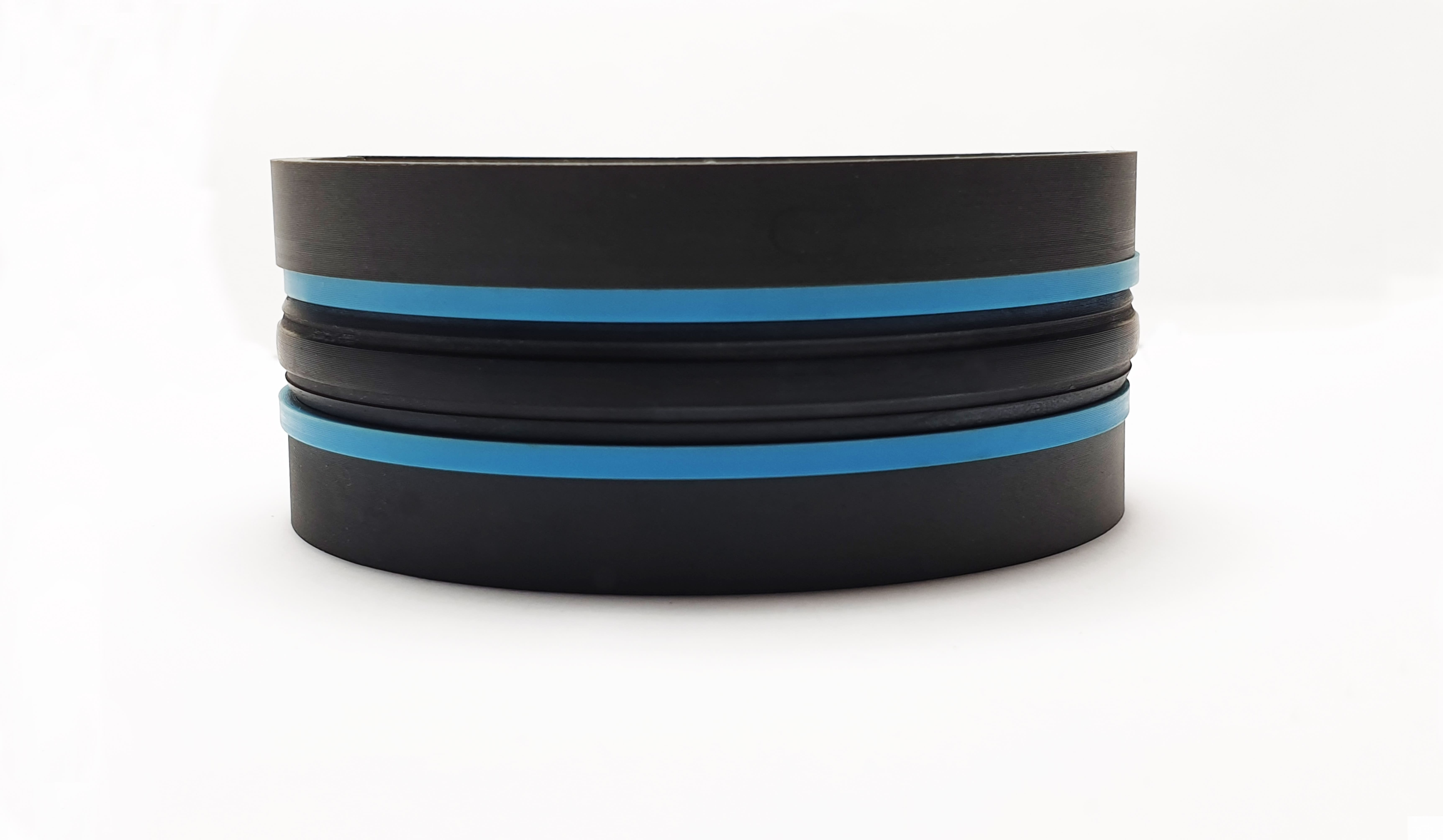

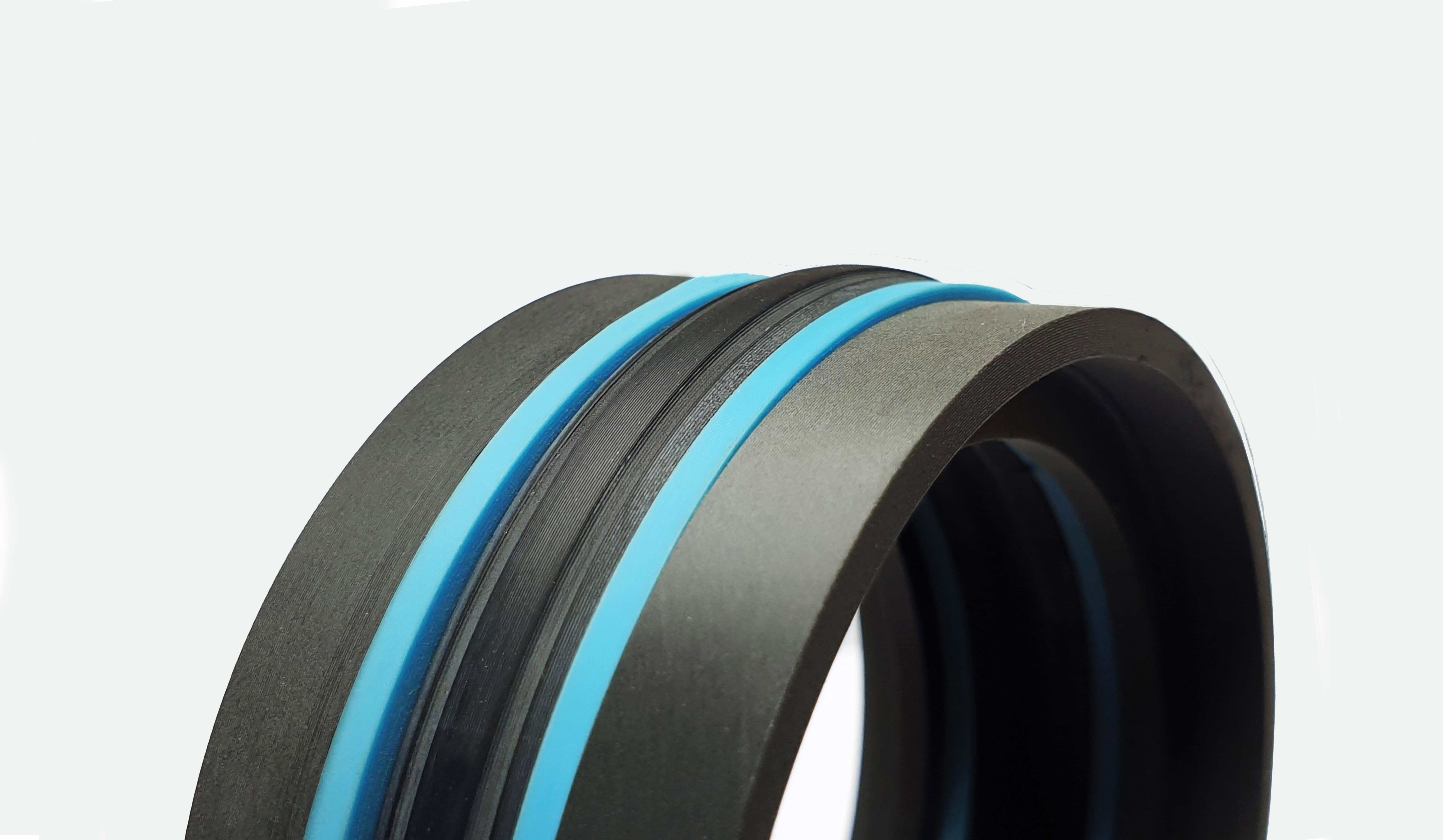

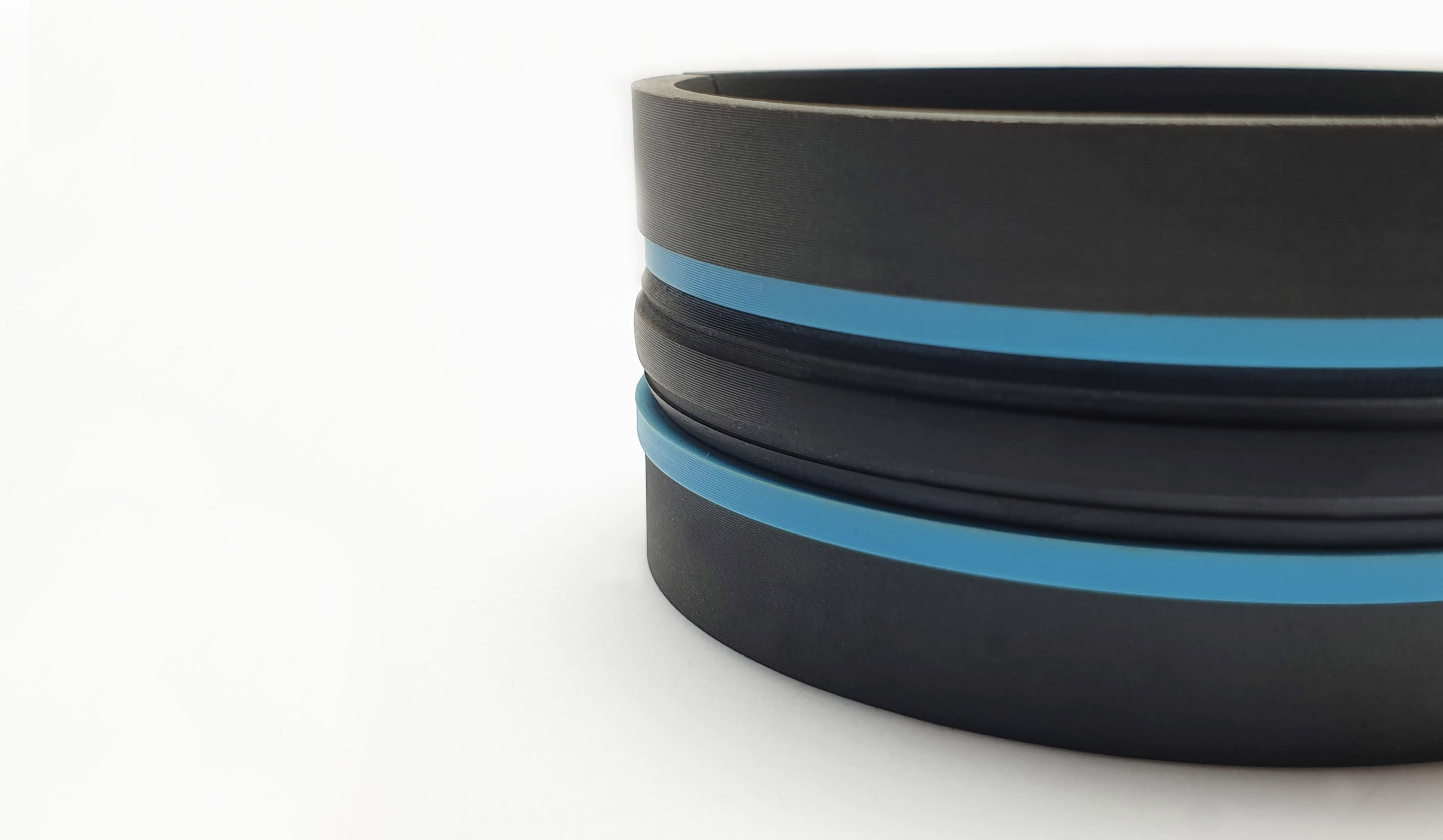

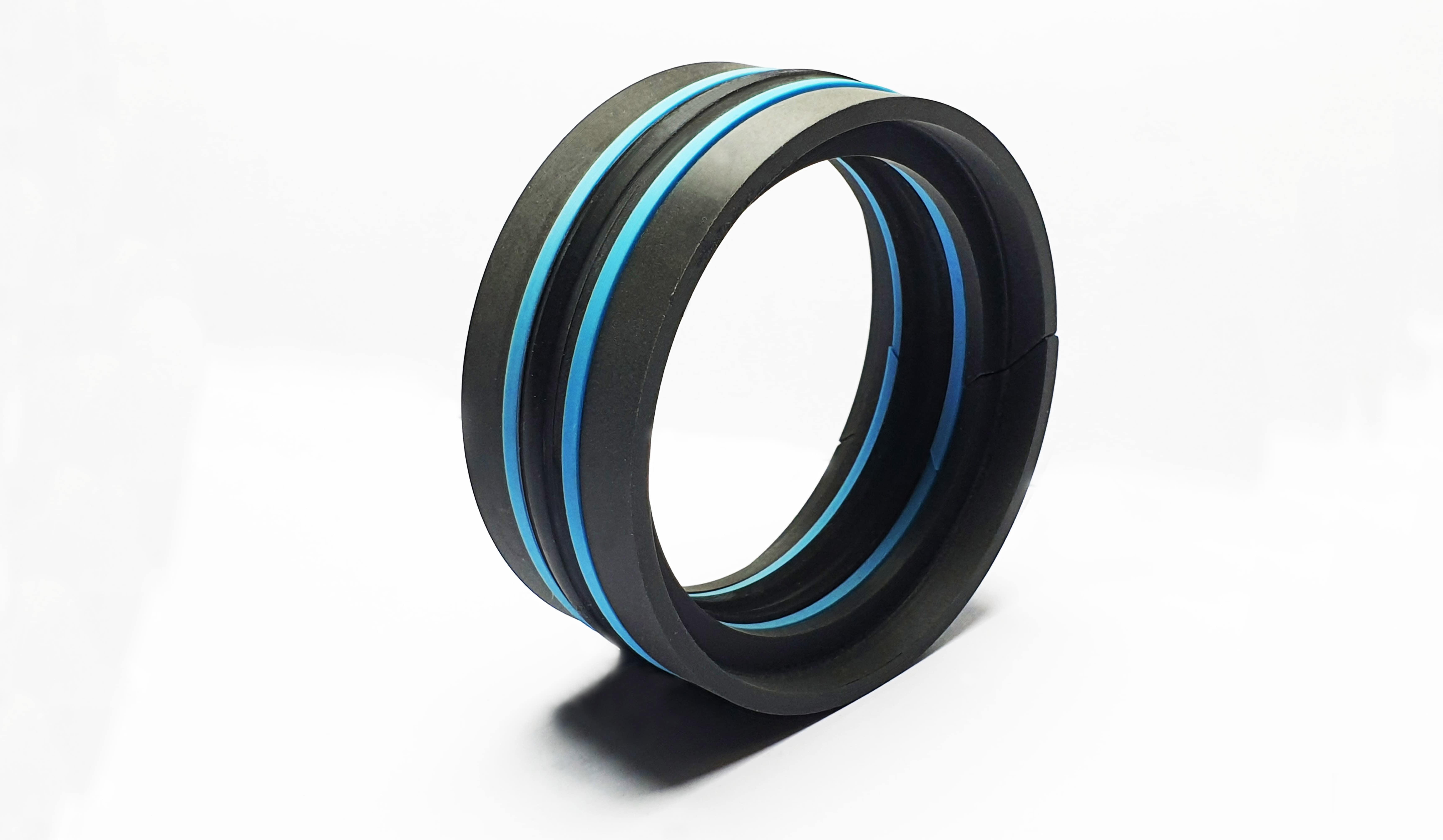

  • PKDAS is a double acting piston seal that has a robust heavy duty seal assembly for split pistons. It allows the use of larger clearances and with the use of the bearing rings, is to restrict piston length. The seal design consists of a seal and two L shaped bearings. The center of the seal is bonded to two "U" section bases and is compressed by the housing to obtain an effective low pressure seal.

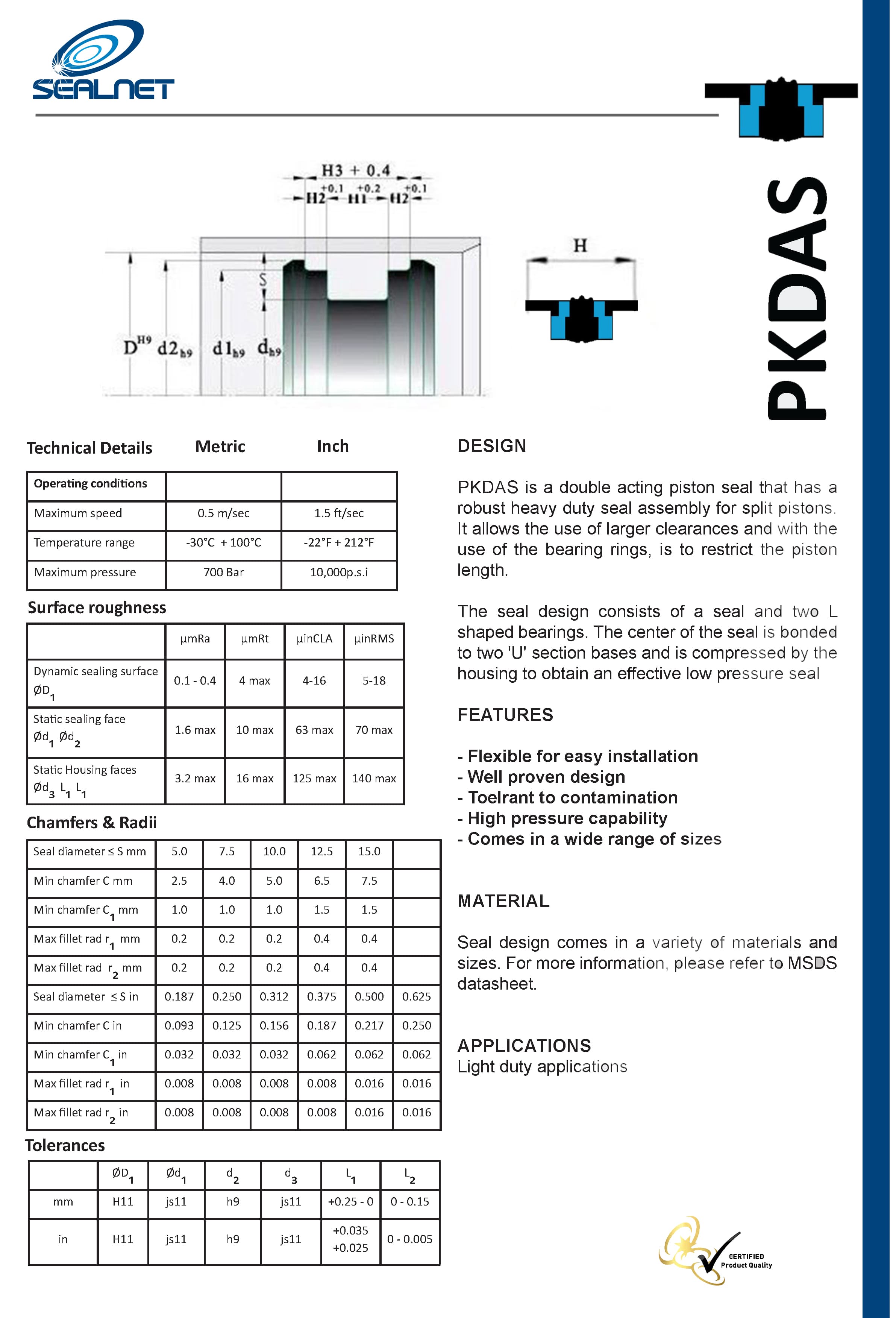

Download Datasheet


Features

  • Flexible for easy installation
  • Well proven design
  • Tolerant to contamination
  • High pressure capability
  • Comes in a wide range of sizes


Applications

  • Light to medium duty applications
