PKSP-5.125x5.625x0.375-COMPO

  • d (h9)
  • D (H9)
  • Material
  • D1
  • H1+0.2
  • Unit
  • d1

$ 91.52
$ 73.22 73.22 AUD

$ 91.52

Quantity
Your Price
1 - 4
$ 73.22
5 - 9
$ 69.56
10 - 24
$ 65.89
25 - 49
$ 59.49
50 +
$ 45.76

This combination does not exist.

Add to Cart

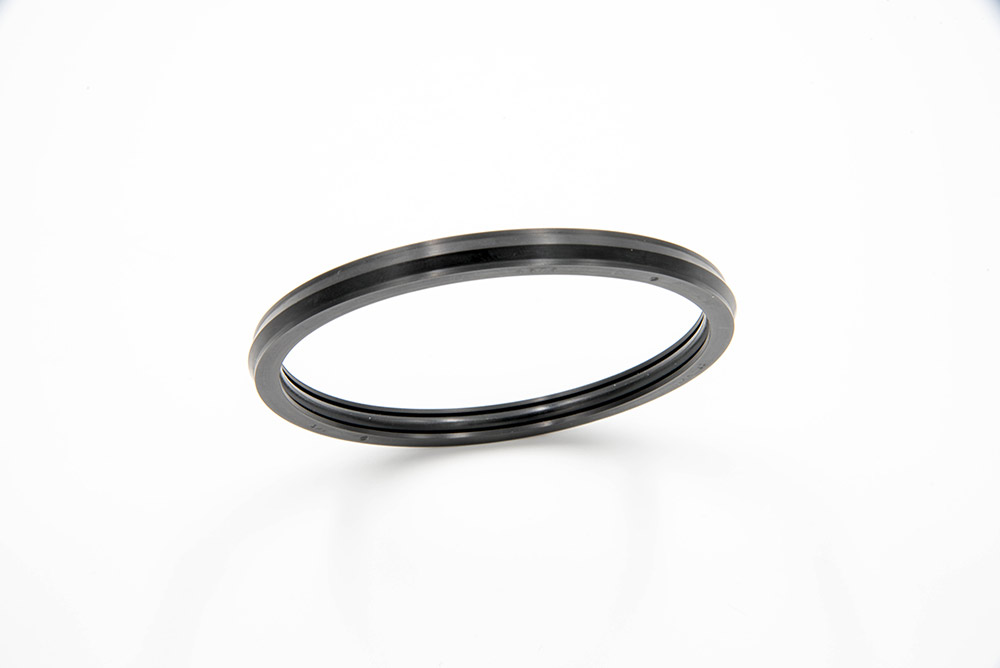

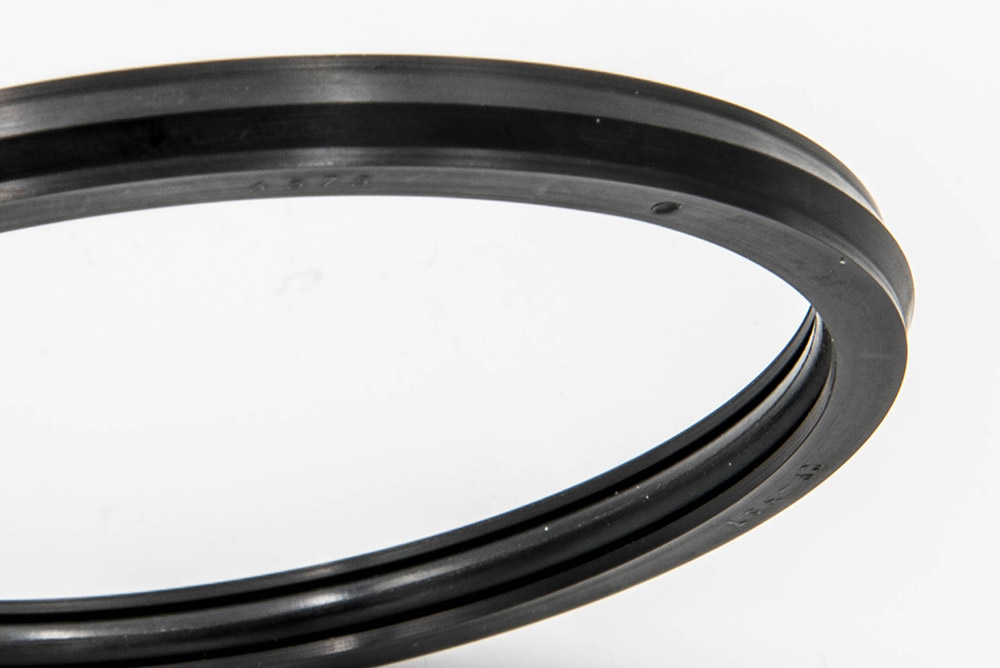

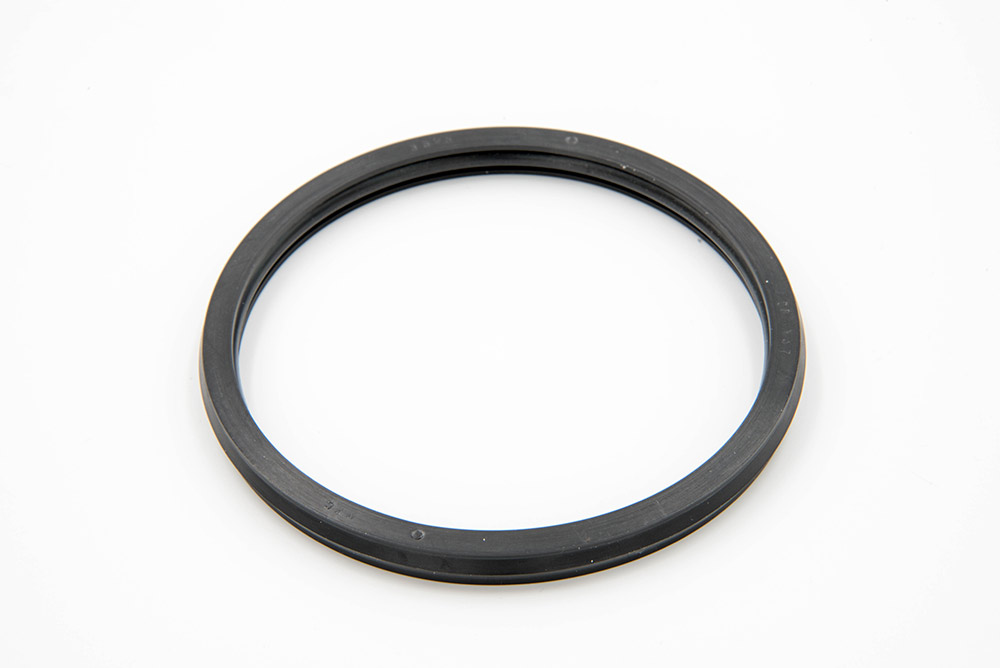

PKSP 5.125" X 5.625" X 0.375" COMPO

Details:

d (h9)
:
5.125" (130.17mm)
D1
:
5.625" (142.88mm)
H1+0.2
:
0.375" (9.52mm)
d1
:
5.153" (130.89mm)
D (H9)
:
5.625" (142.88mm)
Material
:
COMPO
PKSP-5.125x5.625x0.375-COMPO

Design

  • PKSP is a compact double acting piston seal which suitable for low to high pressure, medium to heavy duty applications. The seal design comes with a standard self-lubricating cap ring which is loaded with an energizer. It is designed to be used in a variety of equipment and is suited for earth moving equipment. It also comes in a wide range of material options to extend its service temperature range.

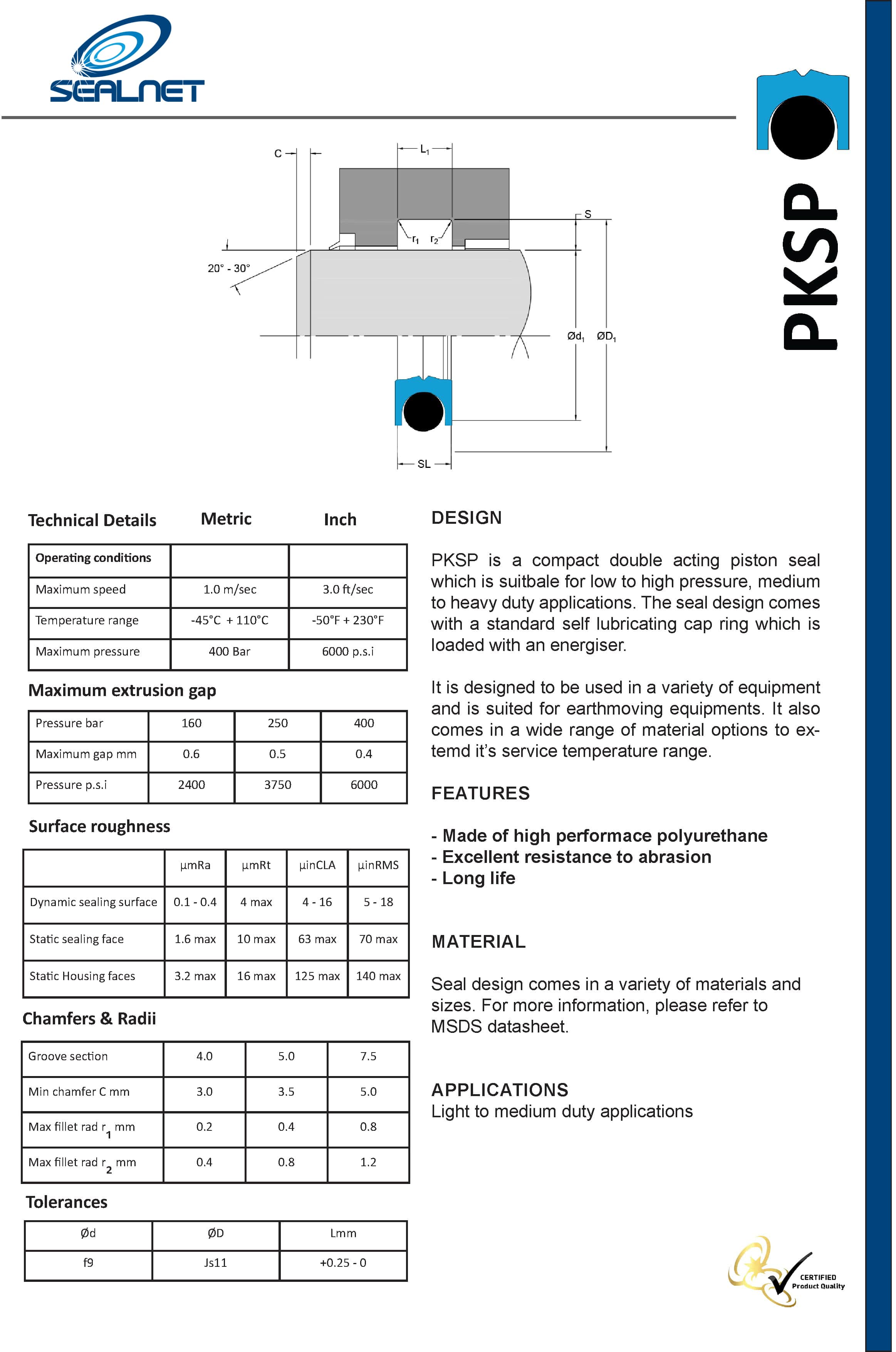

Download Datasheet


Features

  • Made of high performance polyurethane
  • Excellent resistance abrasion
  • Long seal life


Applications

  • Light to medium duty applications
