VA-1090x1120x14.3/25-COMPO

  • d (h9)
  • D (H9)
  • Material
  • Width-B
  • C/S
  • Unit
  • d1
  • Width-A

$ 535.60
$ 428.48 428.48 AUD

$ 535.60

Quantity
Your Price
1 - 4
$ 428.48
5 - 9
$ 407.06
10 - 24
$ 385.63
25 - 49
$ 348.14
50 +
$ 267.80

This combination does not exist.

Add to Cart

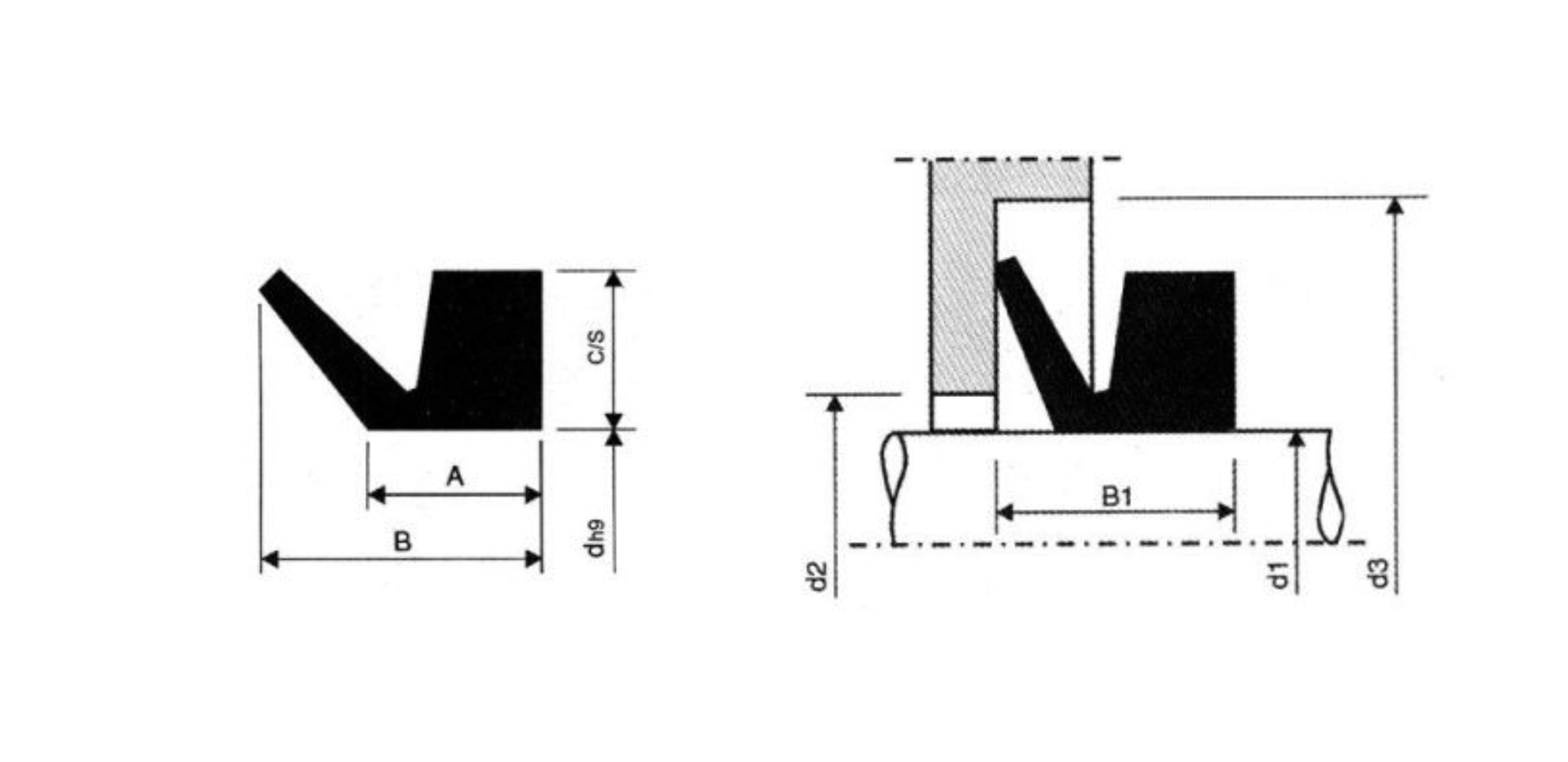

VA 1090 X 1120 X 14.3 / 25 COMPO (Type V-1200A)

Details:

d (h9)
:
1090mm
Width-B
:
25mm
C/S
:
15mm
d1
:
1165-1215
Width-A
:
14.3mm
D (H9)
:
1120mm
Material
:
ORSP
VA-1090x1120x14.3/25-COMPO

Design

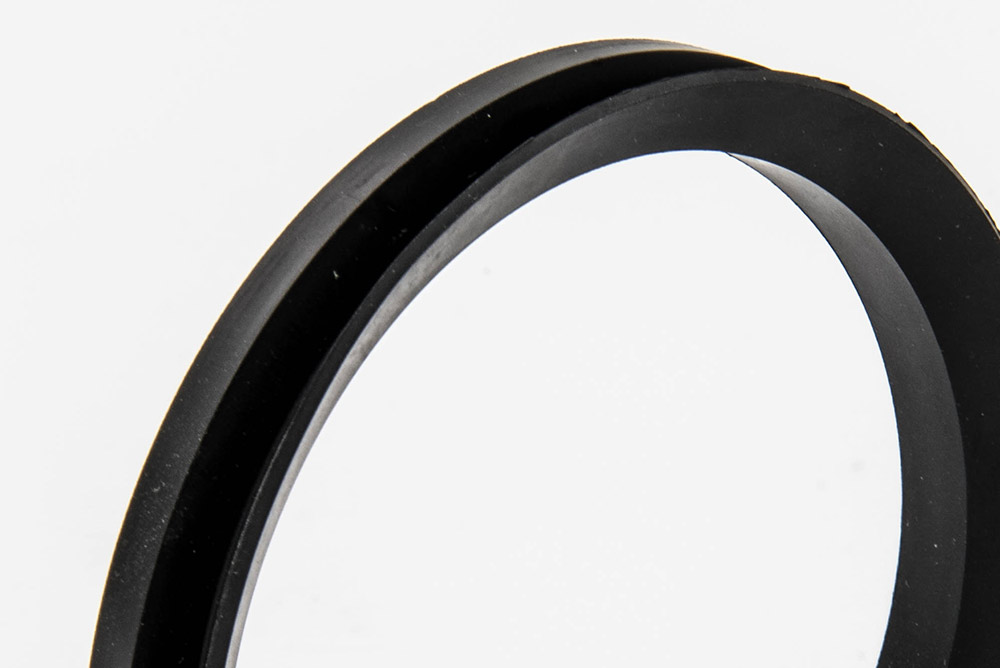

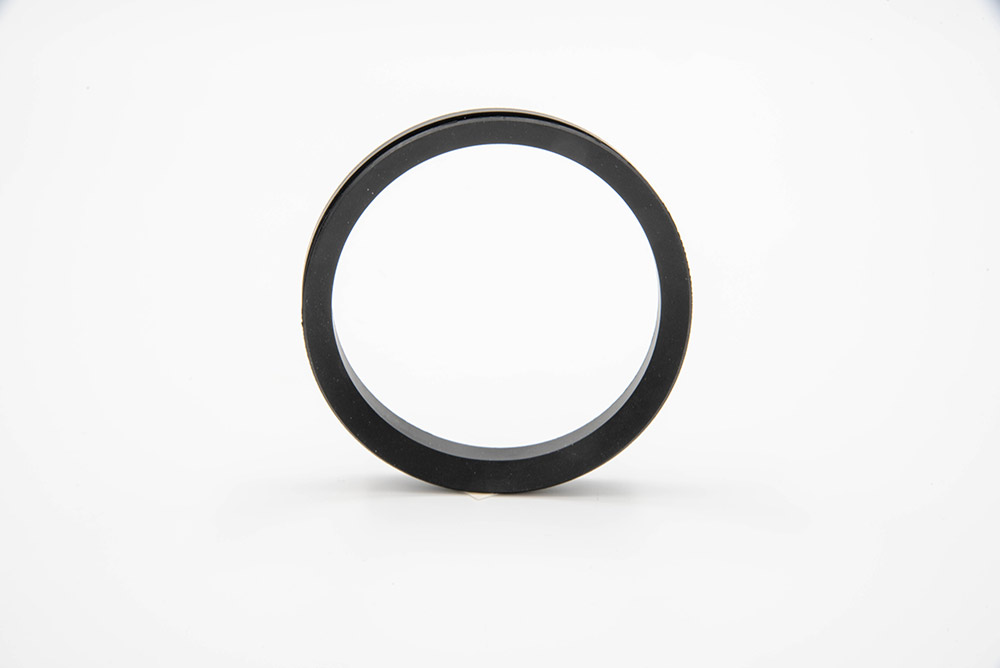

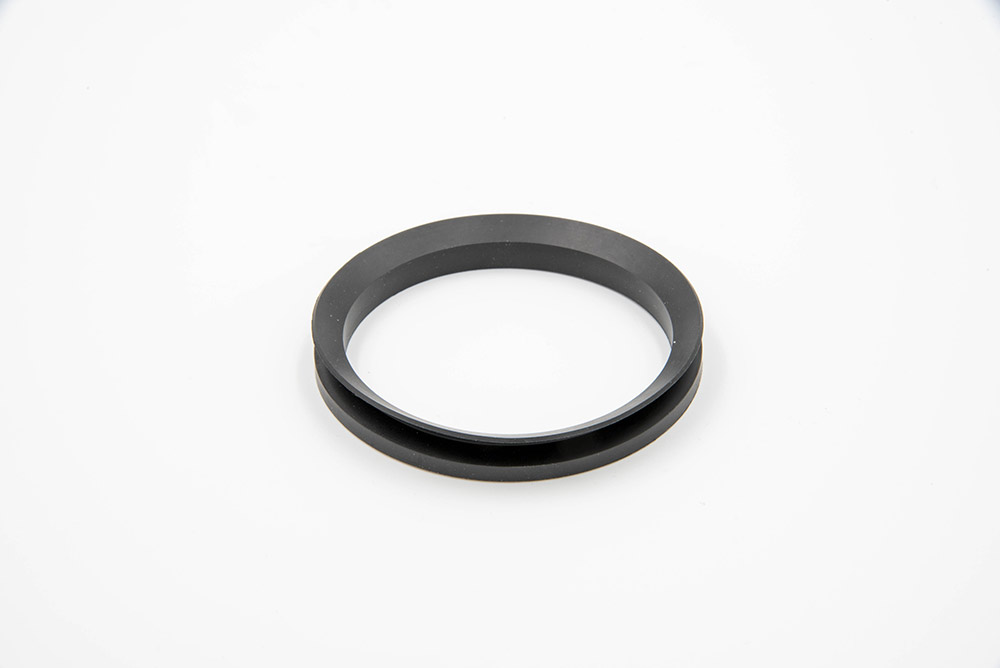

  • The standard VA-Ring is an axial face seal manufactured from pure elastomer without any metal and fabric reinforcement.
  • The V-Ring is a single seal used to protect against dirt, dust, water, grease and oil.
  • Used as a secondary seal to protect main rotary sealing element, protecting the bearings of heavy duty machines.


Applications

  • Can be stretched and installed directly over flanges, shaft and bearing housing without dismantling
