1. VPI-45.000x46.750x0.616/2.910-COMPO
  2. VPI
  3. Vee Packer Seals
  4. Standard Seals

VPI-45.000x46.750x0.616/2.910-COMPO

  • d (h9)
  • D (H9)
  • Material
  • H1+0.2
  • C/S
  • Stack Height (H/V)
  • Unit

$ 5,254.61
$ 4,203.69 4203.6900000000005 AUD

$ 5,254.61

Quantity
Your Price
1 - 4
$ 4,203.69
5 - 9
$ 3,993.51
10 - 24
$ 3,783.32
25 - 49
$ 3,415.50
50 +
$ 2,627.31

This combination does not exist.

Add to Cart

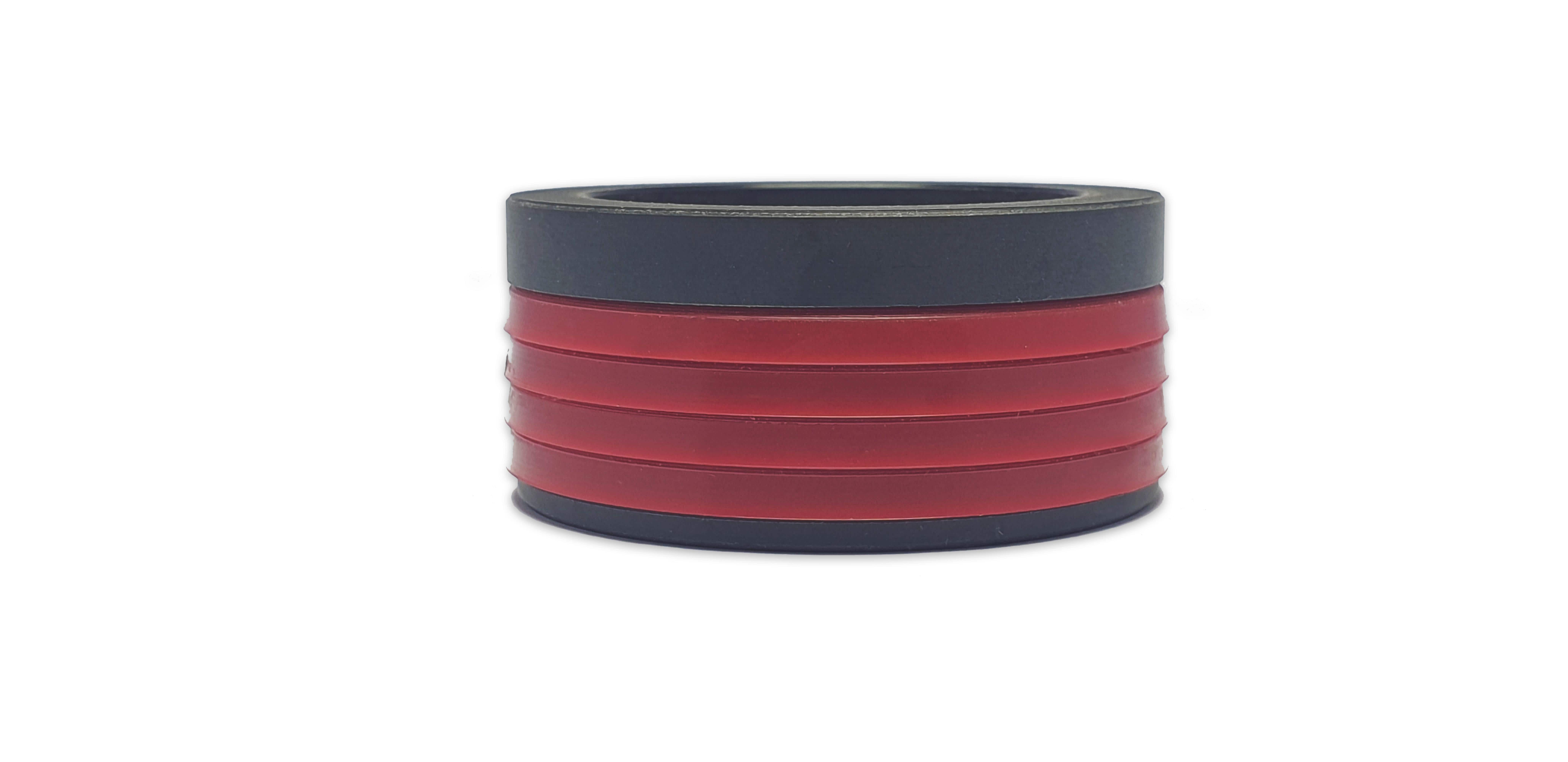

VPI 45.000" X 46.750" X 0.616" / 2.910" COMPO

Details:

d (h9)
:
45" (1143.0mm)
H1+0.2
:
2.91" (73.91mm)
C/S
:
0.875" (22.22mm)
Stack Height (H/V)
:
0.616" (15.65mm)
D (H9)
:
46.75" (1187.45mm)
Material
:
COMPO
VPI-45.000x46.750x0.616/2.910-COMPO

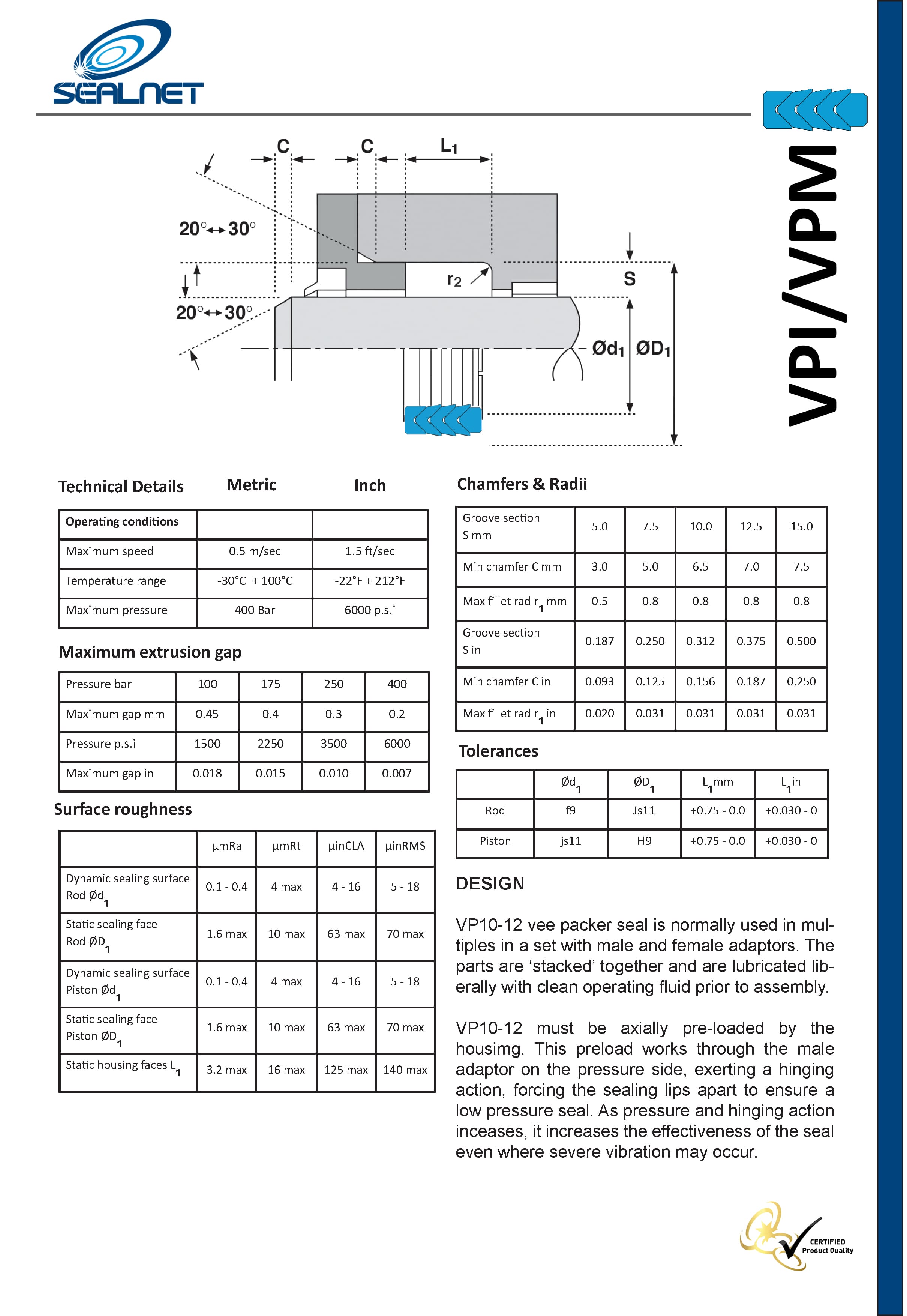

Design

  • VPI vee packer seal is normally used in multiples in a set with male and female adaptors. The parts are 'stacked' together and are lubricated liberally with clean operating fluid prior to assembly. VPI must be axially pre-loaded by the housing. This pre-load works through the male adaptor on the pressure side, exerting a hinging action, forcing the sealing lips apart to ensure a low pressure seal. As pressure and hinging action increases, it increases the effectiveness of the seal even where severe vibration may occur.


Applications

  • High pressure rod and piston sealing applications
  • Used in steel mill and hydraulic press applications


Fluids

  • Mineral based oils, water/glycol and water emulsions
