VS-5x9x3.9/5.2-R

  • d (h9)
  • D (H9)
  • Material
  • Width-B
  • C/S
  • Unit
  • d1
  • Width-A

$ 11.33
$ 9.06 9.06 AUD

$ 11.33

Quantity
Your Price
1 - 4
$ 9.06
5 - 9
$ 8.61
10 - 24
$ 8.16
25 - 49
$ 7.36
50 +
$ 5.67

This combination does not exist.

Add to Cart

VS 5 X 9 X 3.9 / 5.2 R(Type V-6S)

Details:

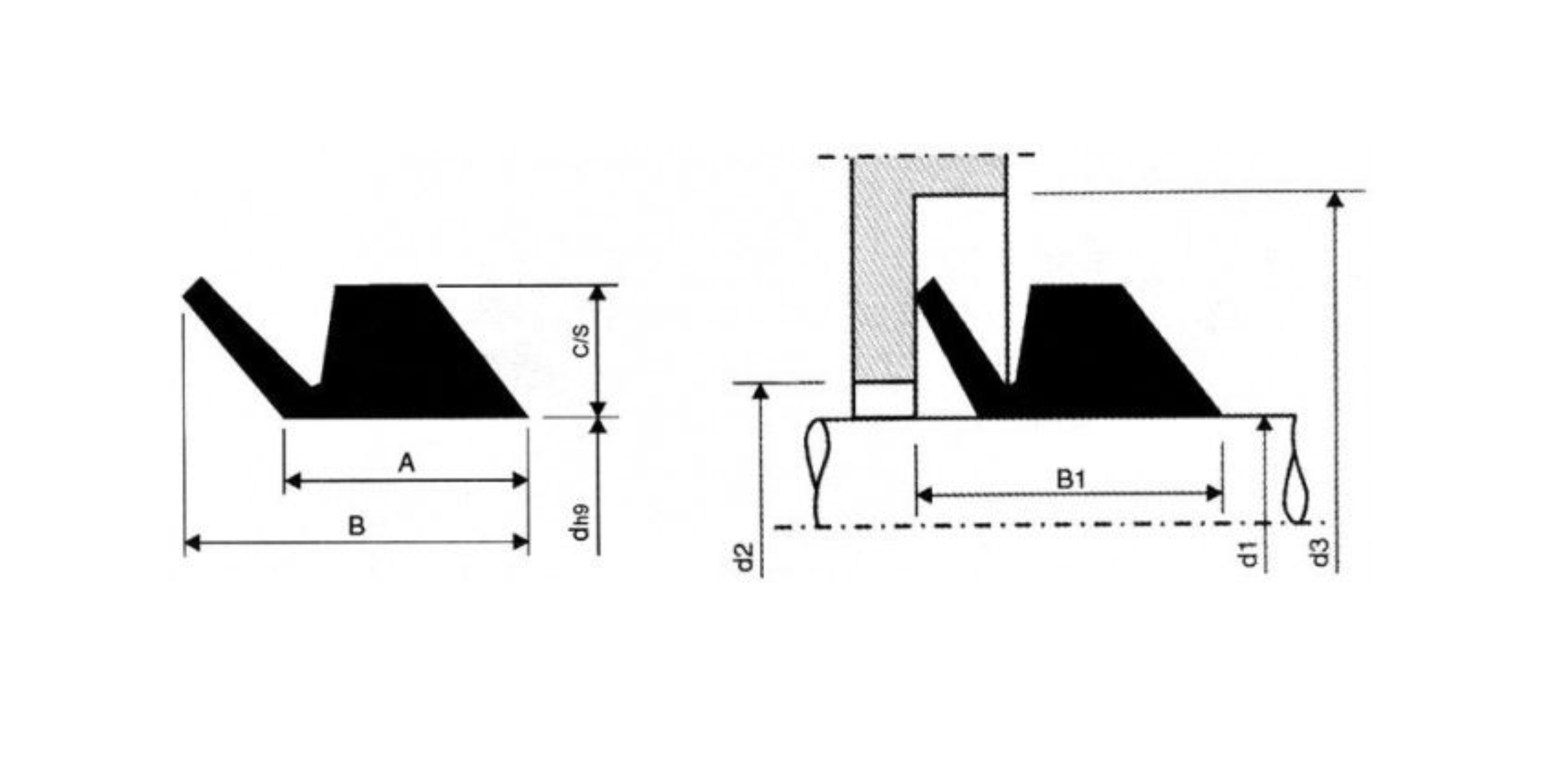

d (h9)
:
5mm
Width-B
:
5.2mm
C/S
:
2mm
d1
:
5.5-6.5
Width-A
:
3.9mm
D (H9)
:
9mm
Material
:
R
VS-5x9x3.9/5.2-R

Design

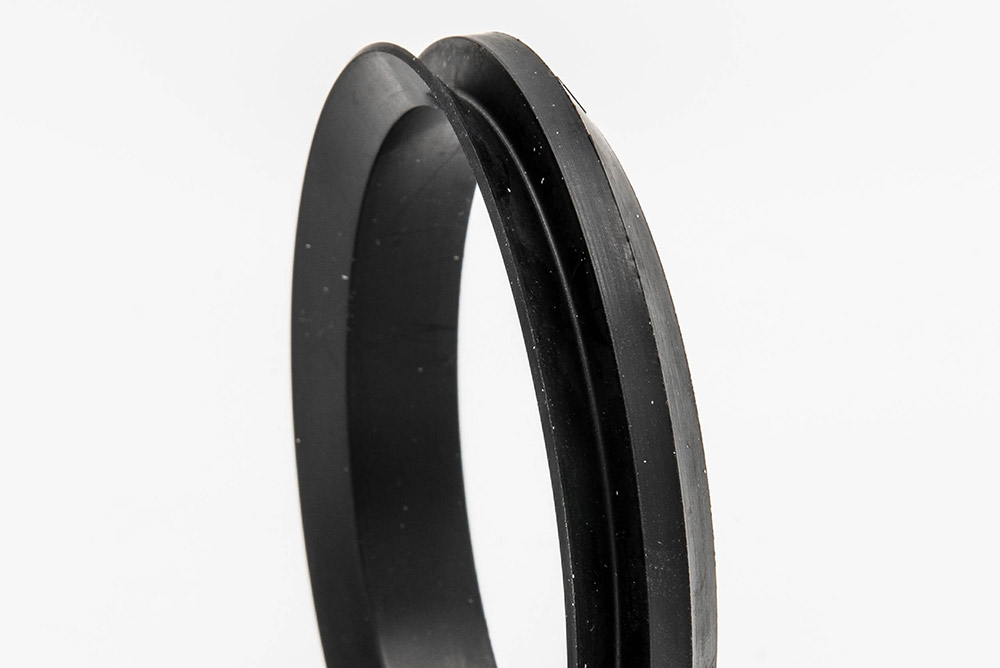

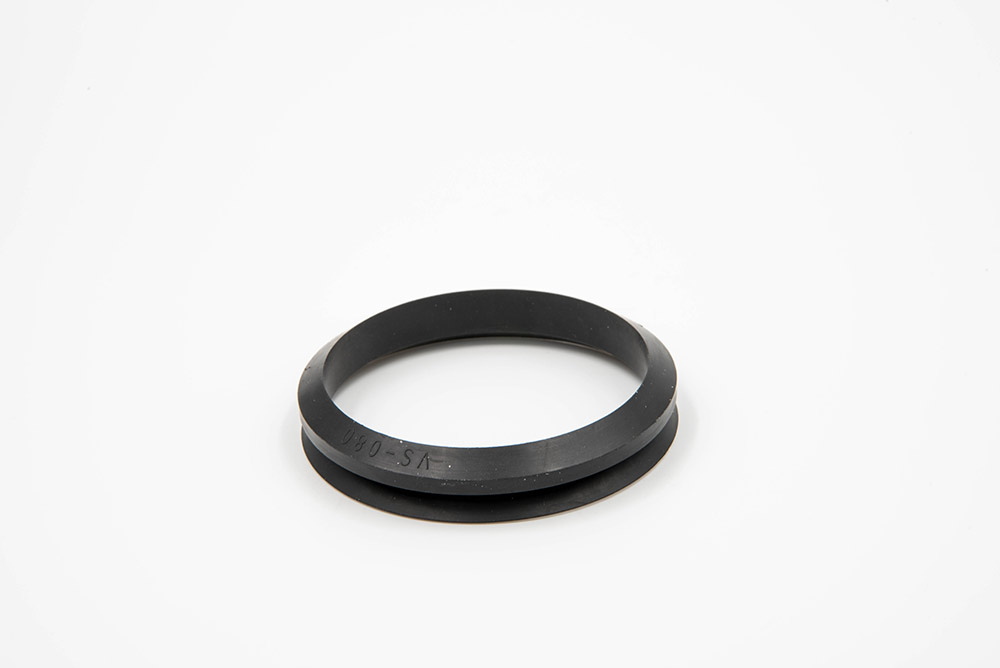

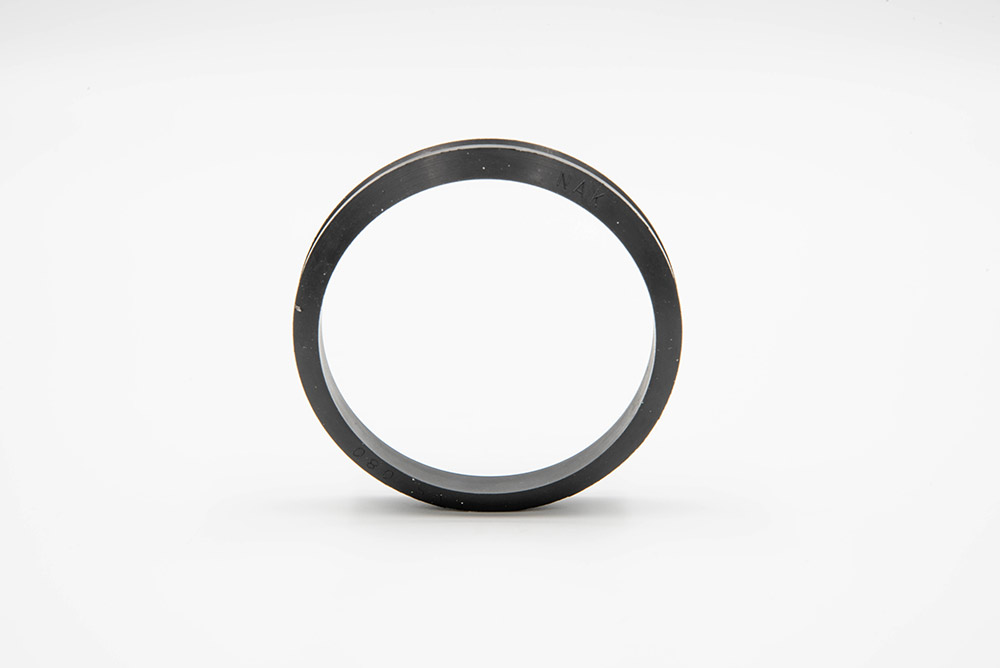

  • The standard VS-Ring is an axial face seal manufactured from pure elastomer without any metal and fabric reinforcement.
  • The V-Ring is a single seal used to protect against dirt, dust, water, grease and oil.
  • Used as a secondary seal to protect main rotary sealing element, protecting the bearings of heavy duty machines.


Applications

  • Can be stretched and installed directly over flanges, shaft and bearing housing without dismantling
