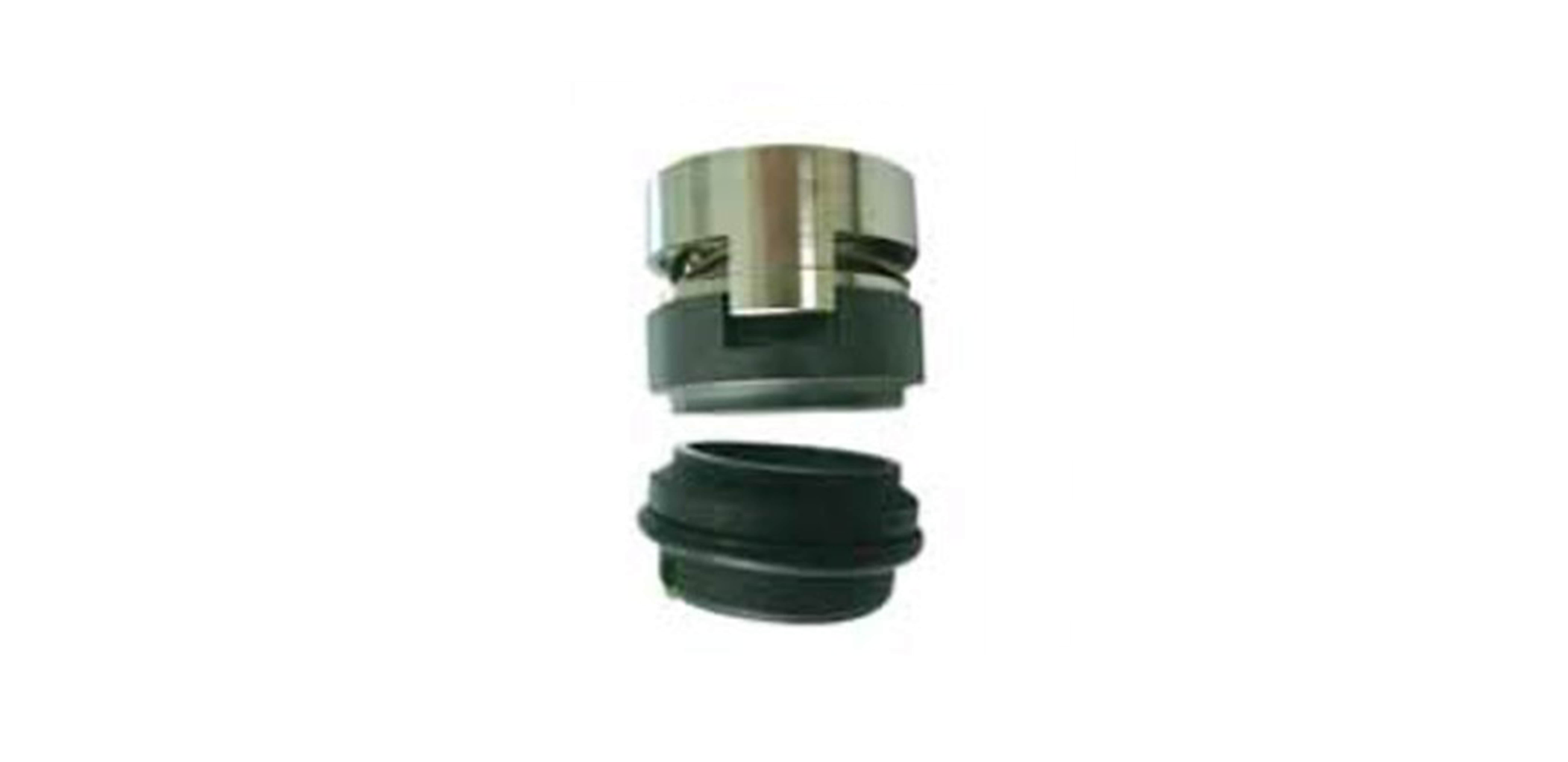

WAVE M7N-55x75x32.5-SSC
WAVE M7N 55 X 75 X 32.5 SSC

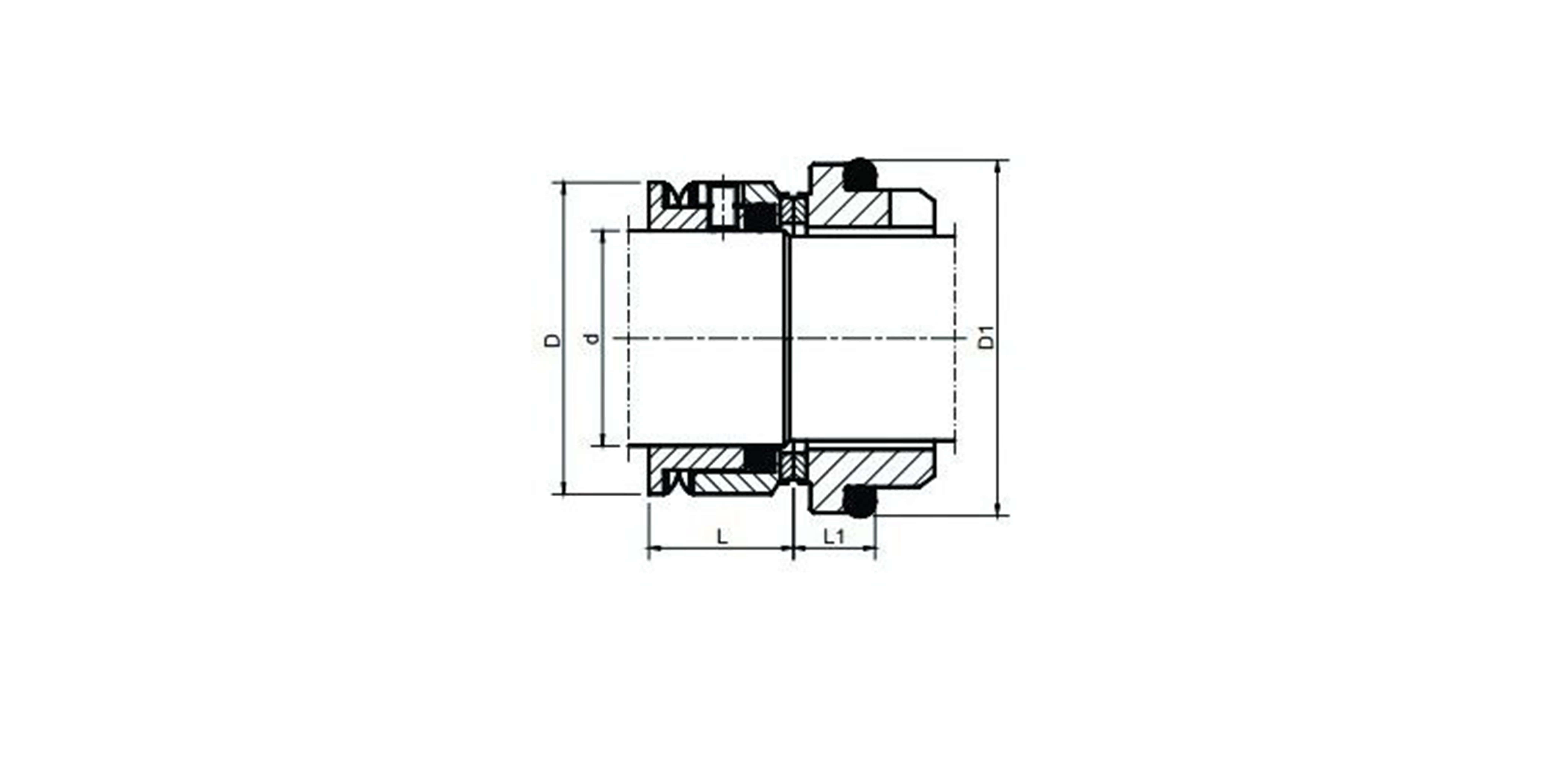

Details:
d (h9)
:
55mm
D1
:
75mm
L1
:
32.5mm
D2
:
67mm
D3
:
71mm
L2
:
15mm
L4
:
47.5mm
Material
:
SSC
Operating Limits
| Pressure | 14 bar |
| Speed | 20 m/s |
| Temp | -50ºC to +200ºC (-58ºF to +392ºF) |
