WAXD-48x56.8x6.3-COMPO

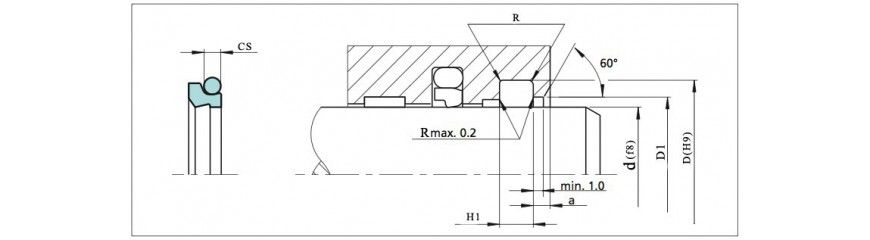

  • d (h9)
  • D (H9)
  • Material
  • D1
  • H1+0.2
  • O-Ring
  • Unit
  • R
  • a
  • a1

$ 11.76
$ 9.41 9.41 AUD

$ 11.76

Quantity
Your Price
1 - 4
$ 9.41
5 - 9
$ 8.94
10 - 24
$ 8.47
25 - 49
$ 7.64
50 +
$ 5.88

This combination does not exist.

Add to Cart

WAXD 48 X 56.8 X 6.3 COMPO

Details:

d (h9)
:
48mm
D1
:
49.5mm
H1+0.2
:
6.3mm
O-Ring
:
52.07x2.62 (BS137)
R
:
0.8mm
a
:
3mm
a1
:
49.5mm
D (H9)
:
56.8mm
Material
:
COMPO
WAXD-48x56.8x6.3-COMPO

Design

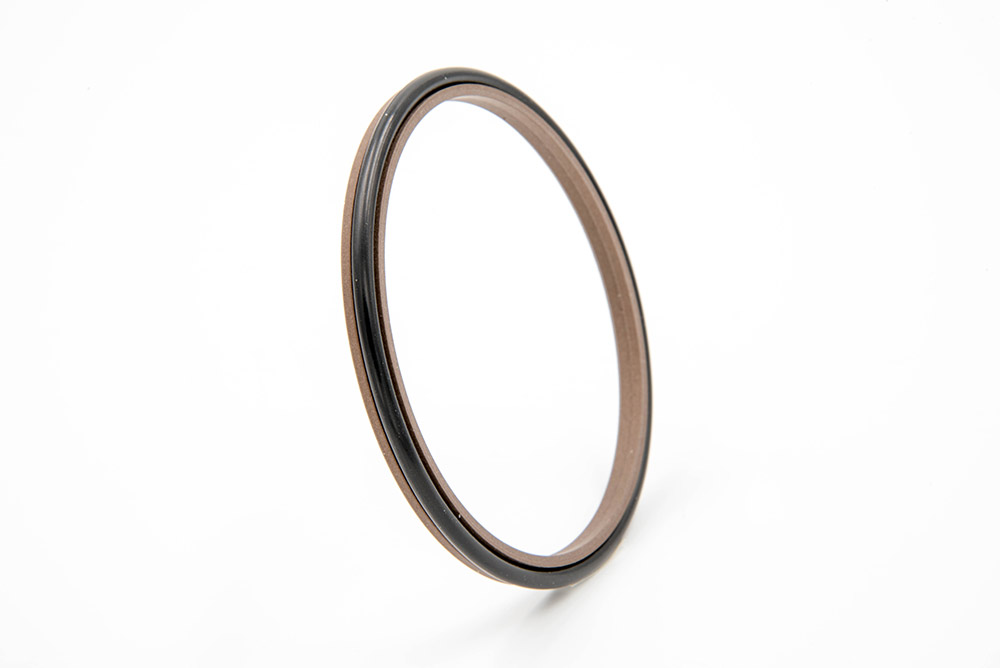

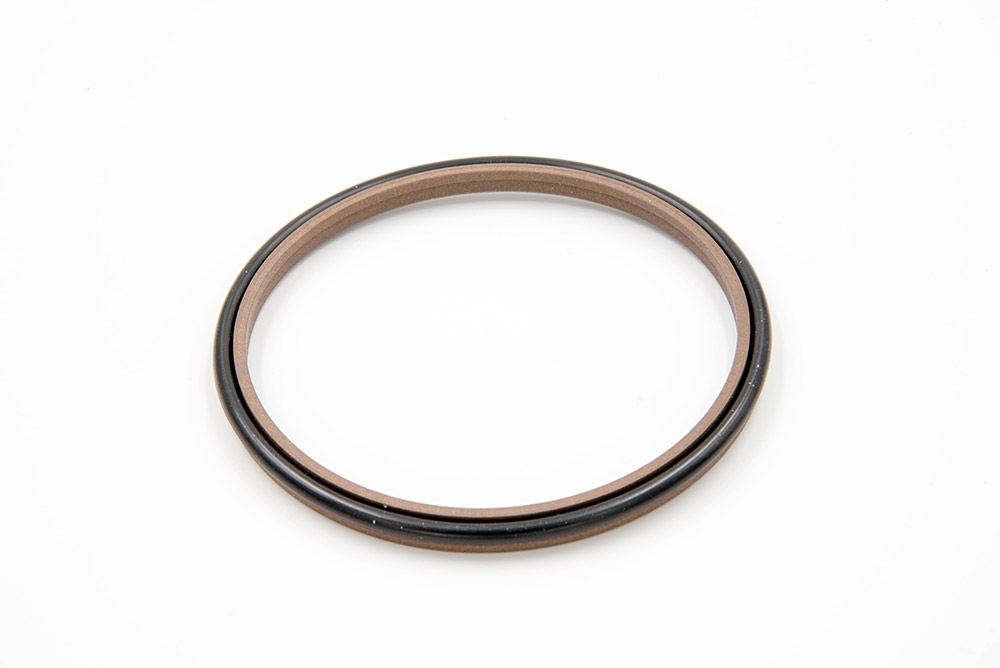

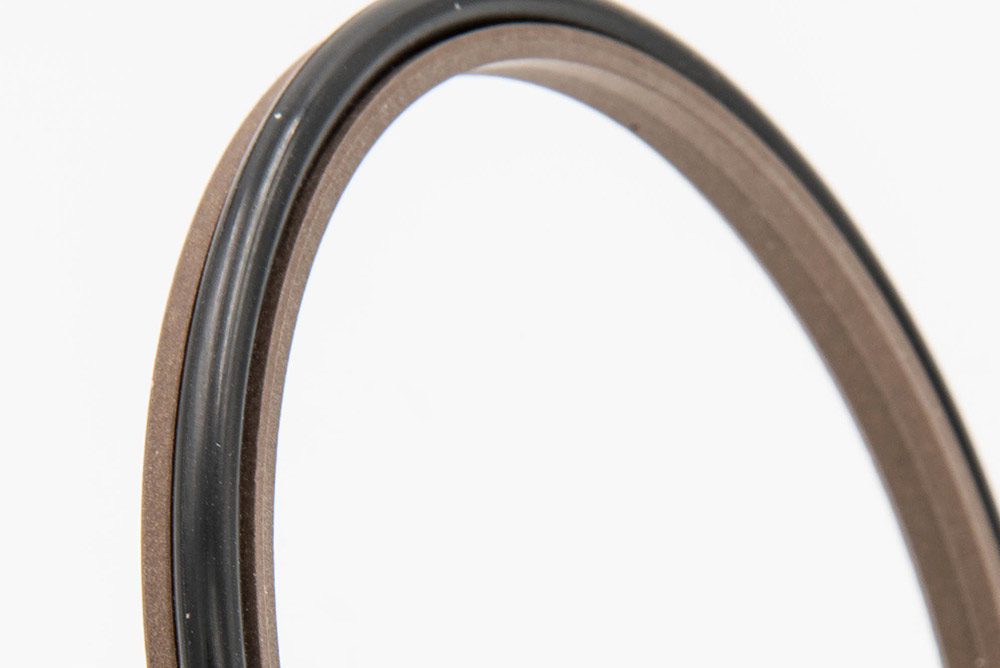

  • WAXD is an energized O-ring, double acting rod wiper. It is designed to wipe the rod dry during extension and exclude contaminants during retraction.
Download Datasheet

Features

  • Protects primary seal from contamination
  • Longer seal life
  • Low friction - No stick slip
  • Comes in wide range of sizes and materials

Applications

  • Light to medium duty application


Fluids

  • Mineral based oils, water, glycol and water emulsions
