MULTI909BT-73.025x88.9x52.4-SIC

  • d (h9)
  • Material
  • D1
  • Unit
  • L1
  • D2
  • D3
  • D4
  • L2
  • L3
  • L4
  • L5

$ 0.00
$ 0.00 -0.0 AUD

$ 0.00

This combination does not exist.

Add to Cart

MULTI909BT 73.025 X 88.9 X 52.4 SIC

Details:

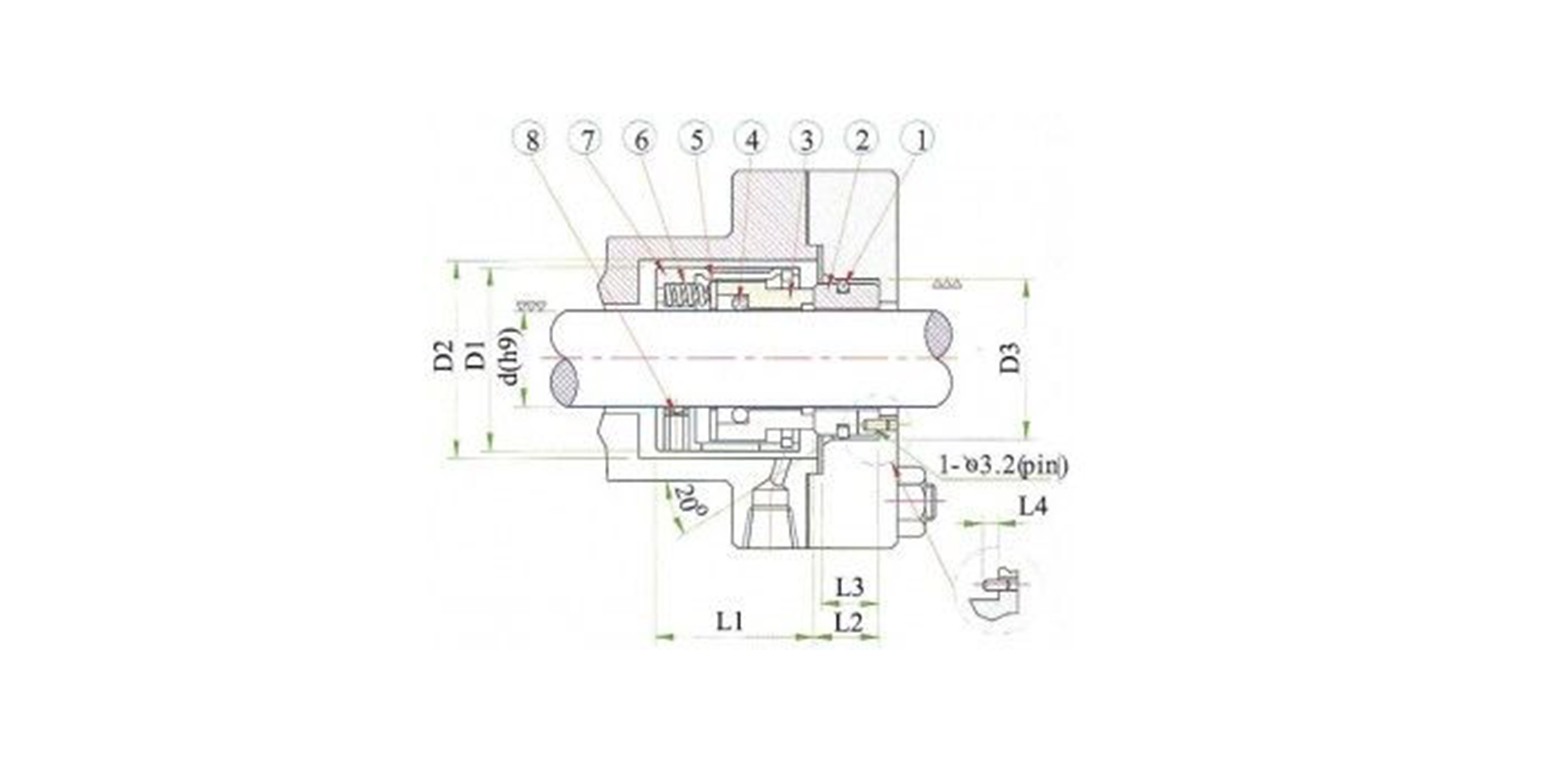

d (h9)
:
73.025mm
D1
:
88.9mm
L1
:
52.4mm
D2
:
92mm
D3
:
66.675mm
D4
:
85.73mm
L2
:
15.8mm
L3
:
14.3mm
L4
:
2.2mm
L5
:
12.7mm
Material
:
SIC
MULTI909BT-73.025x88.9x52.4-SIC

Operating Limits

Pressure
12 bar
Speed
25m/s
Temperature
NBR: -20ºC to +100ºC (-4ºF to +212ºF)

Viton: -20ºC to +200ºC (-4ºF to +392ºF)
