1. PADF-58.6x80x19.6-NBR
  2. PADF
  3. Oil Seals / Duo Cone / End Caps
  4. Standard Seals

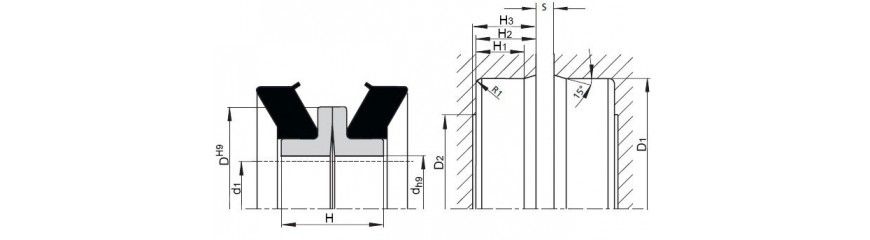

PADF-58.6x80x19.6-NBR

  • d (h9)
  • D (H9)
  • H
  • Material
  • H2
  • D1
  • H1+0.2
  • Unit
  • D2
  • d1

$ 153.06
$ 122.44 122.44 AUD

$ 153.06

Quantity
Your Price
1 - 4
$ 122.44
5 - 9
$ 116.32
10 - 24
$ 110.20
25 - 49
$ 99.49
50 +
$ 76.53

This combination does not exist.

Add to Cart

PADF 58.6 X 80 X 19.6 NBR

Details:

d (h9)
:
58.6mm
H2
:
9mm
D1
:
84mm
H1+0.2
:
7.5mm
D2
:
71mm
d1
:
57mm
D (H9)
:
80mm
H
:
19.6mm
Material
:
NBR
PADF-58.6x80x19.6-NBR

Design

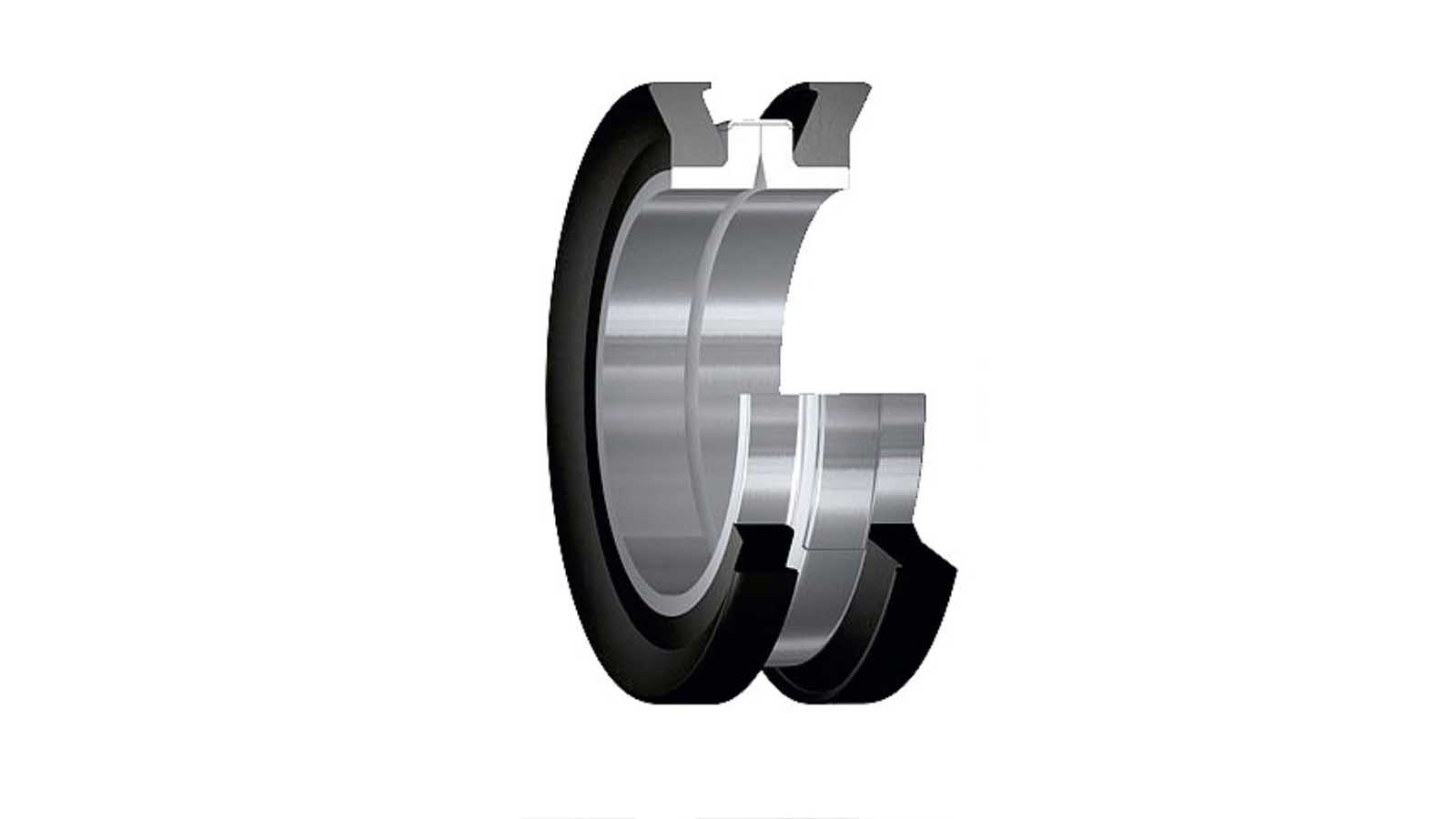

  • PADF Duo Cone Seals are a special form of mechanical face seal.
  • There are generally two types: Type PADO and Type PADF.
  • Type PADF uses an elastomer with a diamond-shaped profile as the secondary sealing element instead of an o-ring.
