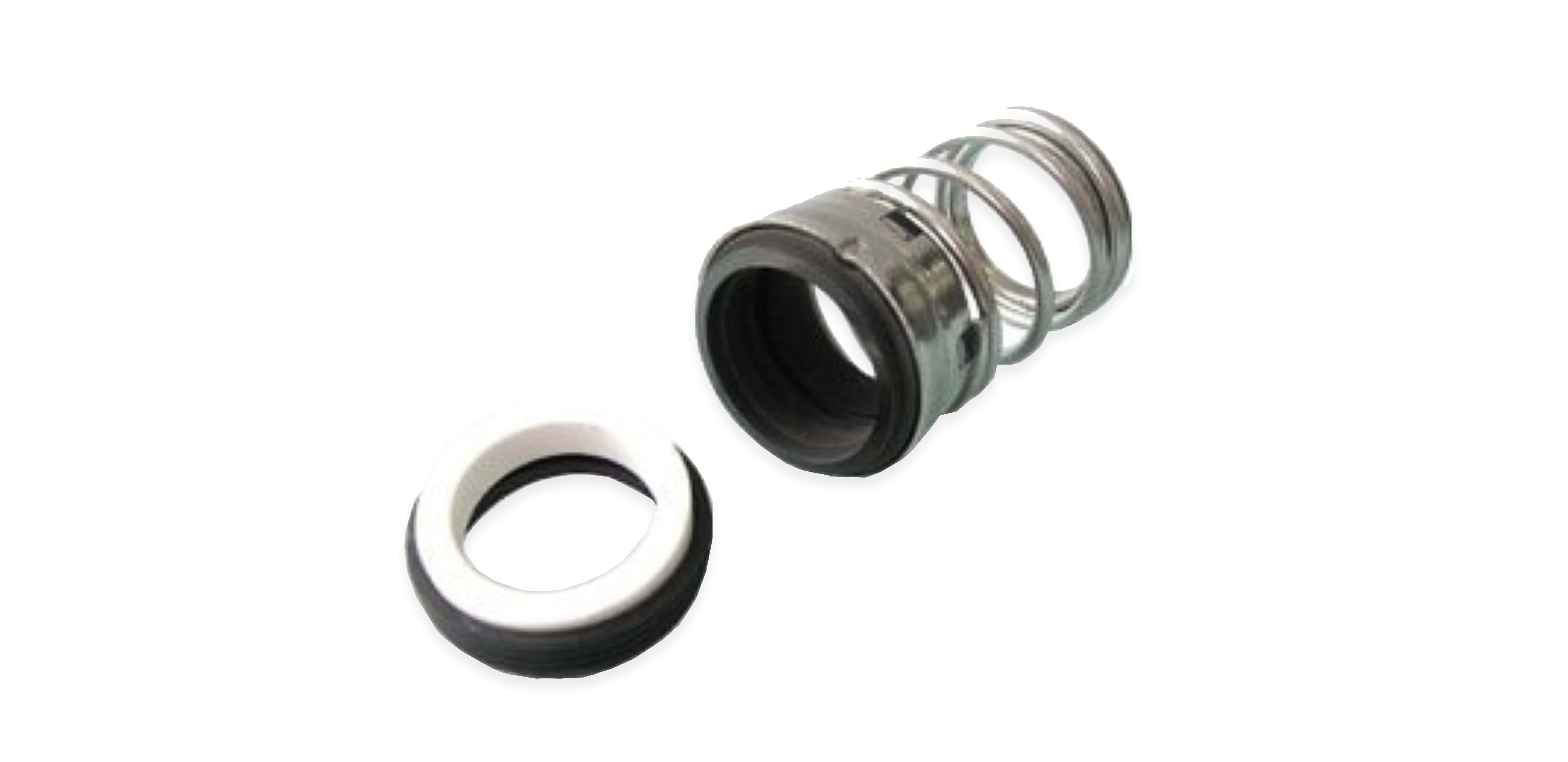

PARDI300-3.25x4.125x2.968-SIC
PARDI300 3.25" X 4.125" X 2.968" SIC

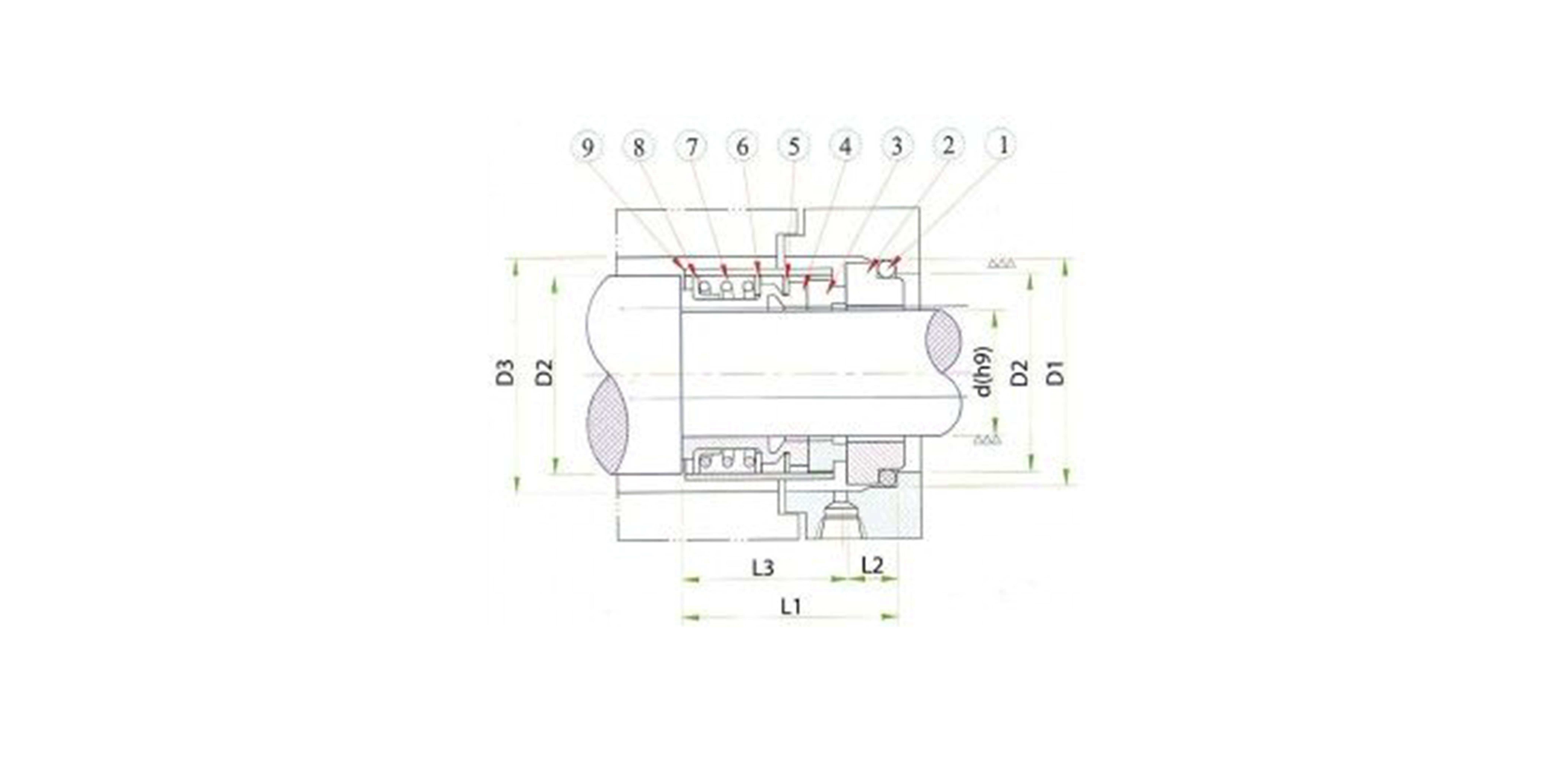

Details:
d (h9)
:
3.25" (82.55mm)
D1
:
4.125" (104.77mm)
L1
:
2.968" (75.39mm)
D2
:
3.312" (84.12mm)
D3
:
4.25" (107.95mm)
L3
:
0.781" (19.84mm)
L4
:
0.656" (16.66mm)
Material
:
SIC
Operating Limits
| Pressure | 5 bar |
| Speed | 10m/s |
| Temperature | NBR: -20ºC to +100ºC (-4ºF to +213ºF) |
| Viton: -20ºC to +200ºC (-4ºF to +392ºF) |
