CIPM-59.8x65x3-CASTIRON

  • d (h9)
  • D (H9)
  • H
  • Material
  • Unit

$ 48.87
$ 39.10 39.1 AUD

$ 48.87

Quantity
Your Price
1 - 4
$ 39.10
5 - 9
$ 37.14
10 - 24
$ 35.19
25 - 49
$ 31.77
50 +
$ 24.44

This combination does not exist.

Add to Cart

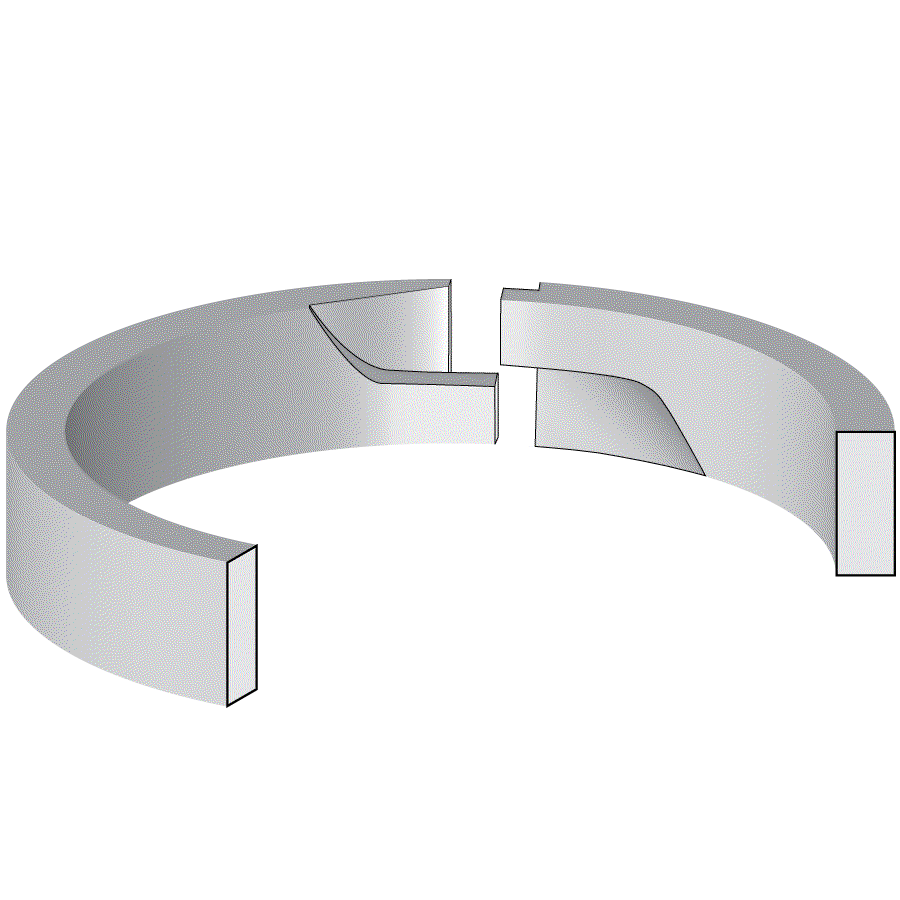

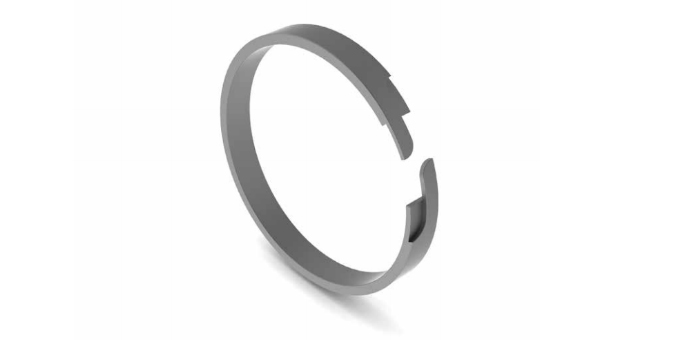

Cast iron piston rings are used in a broad range of high-temperature and high-speed engine applications due to their low-friction, wear-resistant properties.

Material

  • IRON

Design

  • Groove width: at least 0.001 in. wider than the maximum piston ring width with a tolerance of +0.003 in./-0.000 in.
  • Groove depth: at least 0.015 in. deeper than the maximum radial wall thickness of the piston ring with a tolerance of +0.003 in./-0.000 in. This is to avoid any possibility of the ring bottoming in the groove when the ring is compressed to its working diameter.
  • Radial clearance:  less than 1/3 of the radial wall thickness of the piston ring to ensure sealing effectiveness


Details:

d (h9)
:
59.8mm
D (H9)
:
65mm
H
:
3mm
Material
:
Cast Iron
CIPM-59.8x65x3-CASTIRON

Cast iron piston rings are used in a broad range of high-temperature and high-speed engine applications due to their low-friction, wear-resistant properties.

Material

  • IRON

Design

  • Groove width: at least 0.001 in. wider than the maximum piston ring width with a tolerance of +0.003 in./-0.000 in.
  • Groove depth: at least 0.015 in. deeper than the maximum radial wall thickness of the piston ring with a tolerance of +0.003 in./-0.000 in. This is to avoid any possibility of the ring bottoming in the groove when the ring is compressed to its working diameter.
  • Radial clearance:  less than 1/3 of the radial wall thickness of the piston ring to ensure sealing effectiveness
