GS9S-1.125x1.546x0.165-COMPO

  • d (h9)
  • D (H9)
  • Material
  • H1+0.2
  • Unit

$ 24.16
$ 19.33 19.330000000000002 AUD

$ 24.16

Quantity
Your Price
1 - 4
$ 19.33
5 - 9
$ 18.36
10 - 24
$ 17.40
25 - 49
$ 15.71
50 +
$ 12.08

This combination does not exist.

Add to Cart

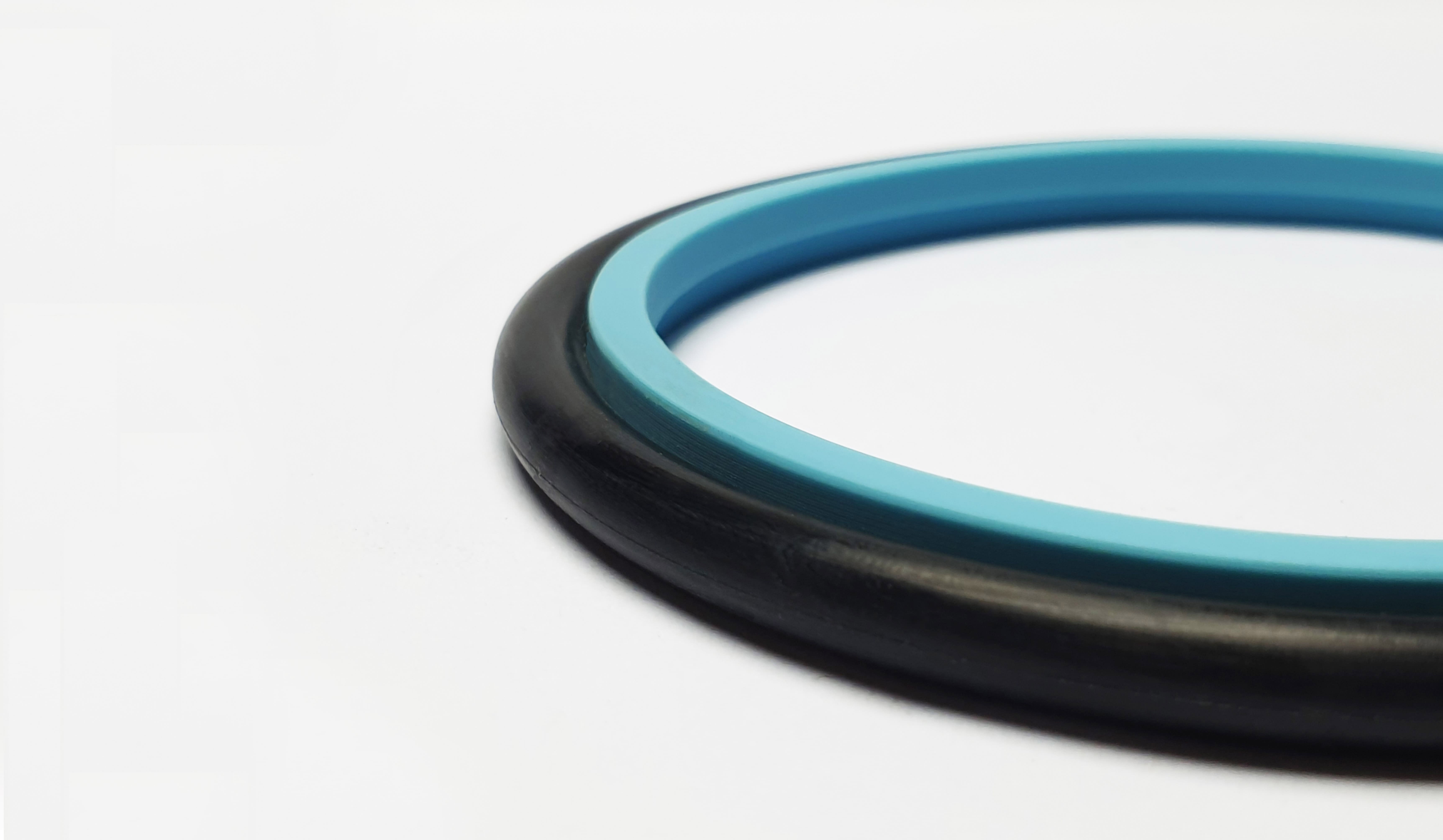

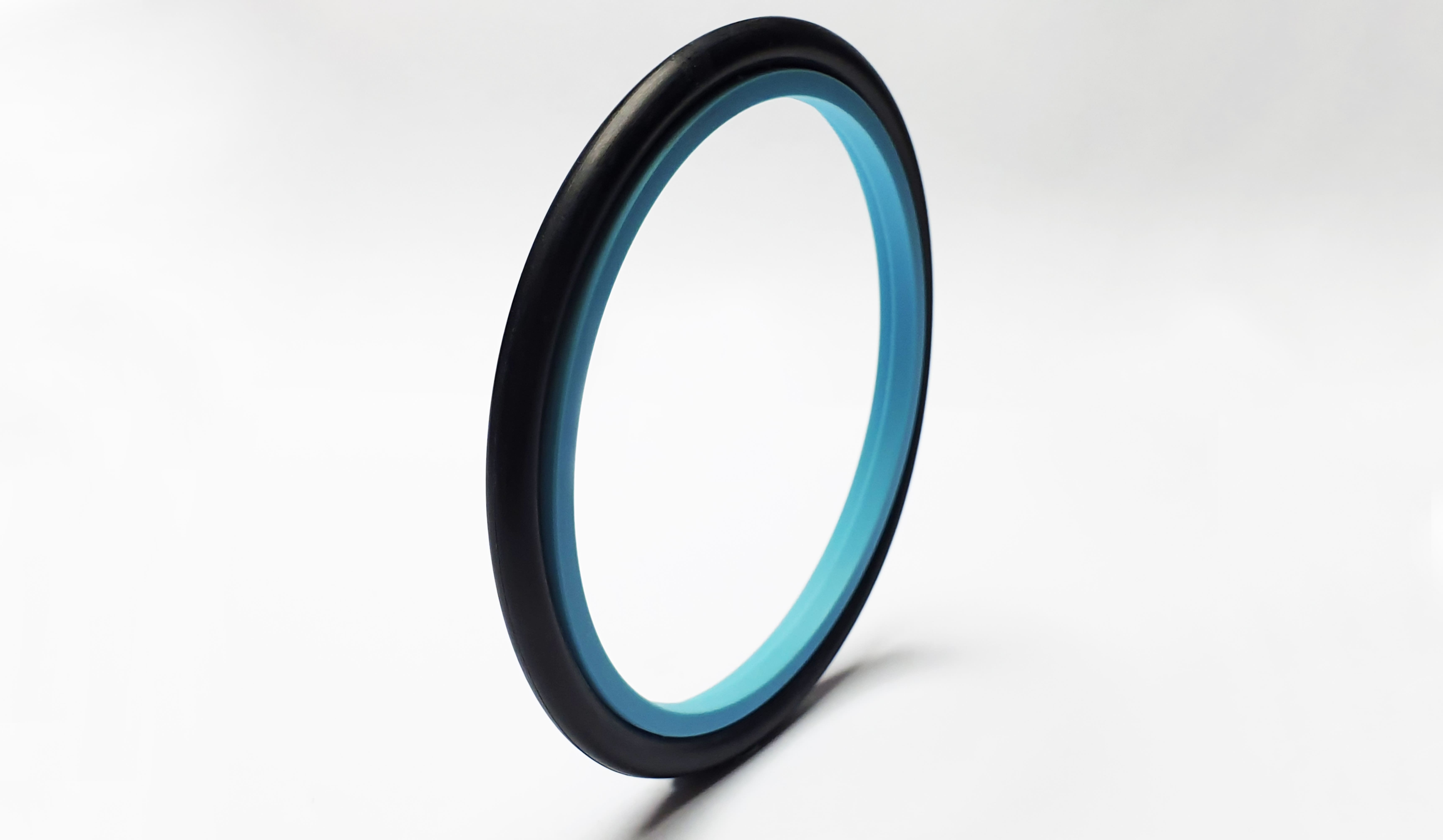

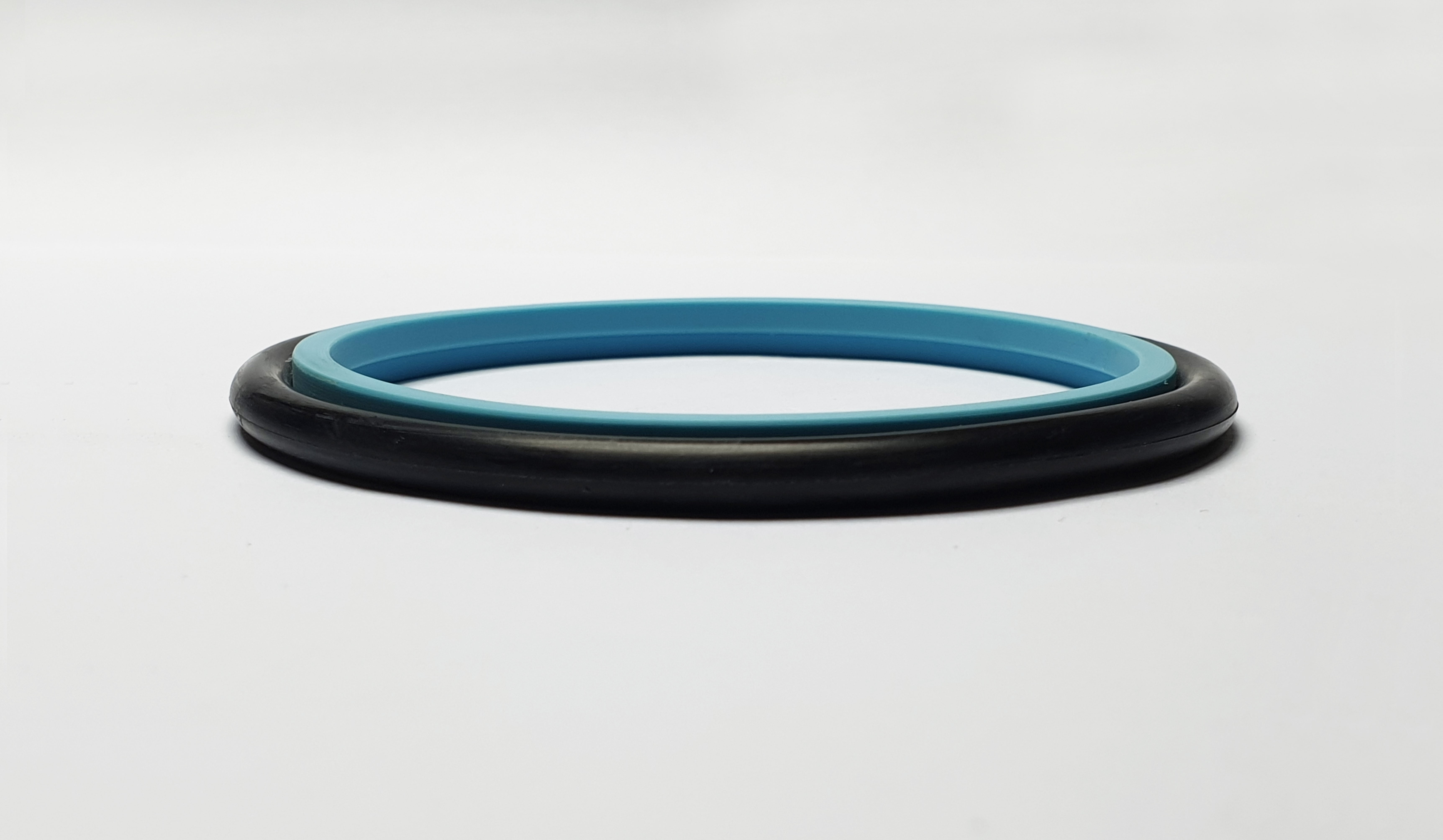

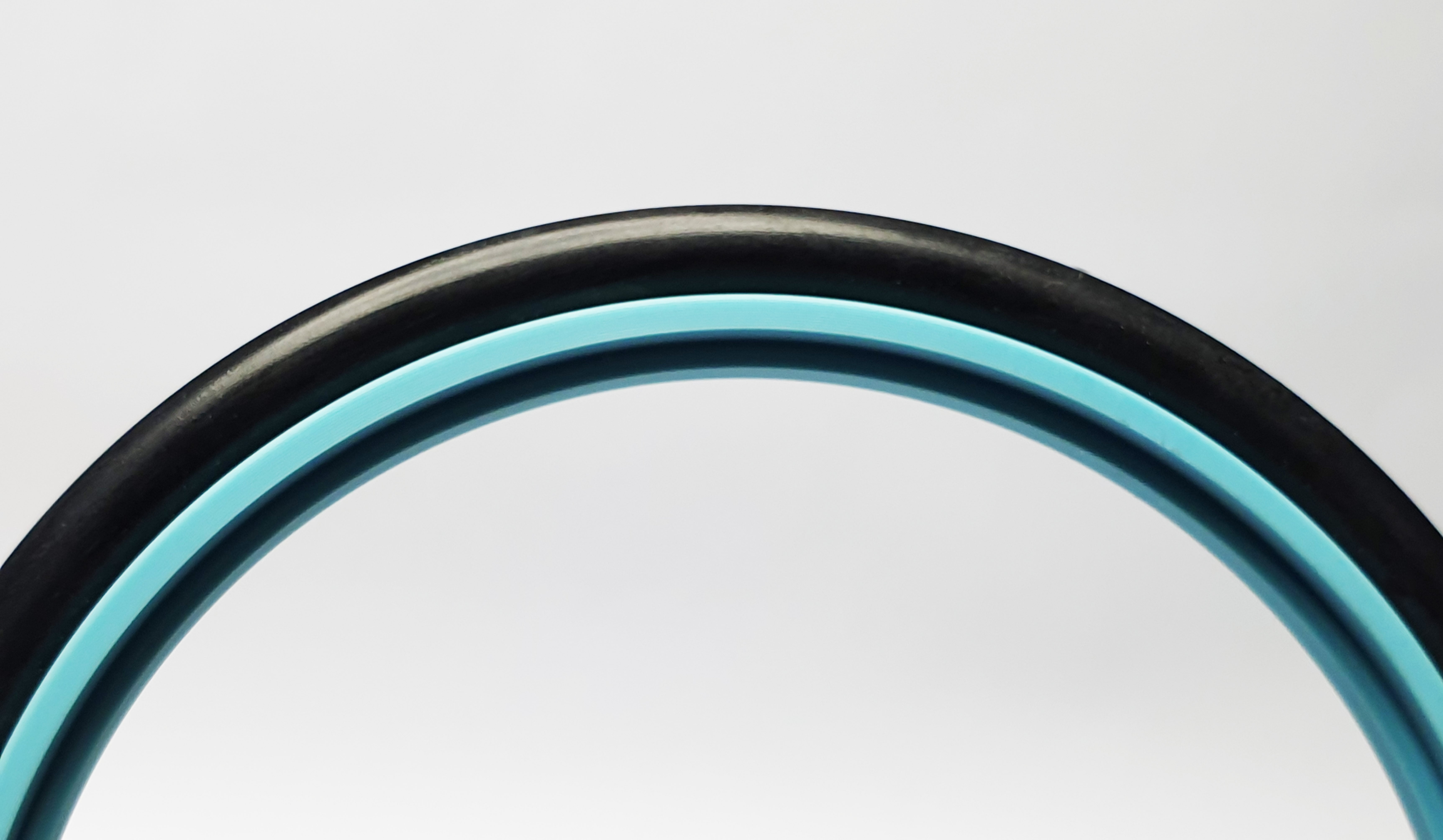

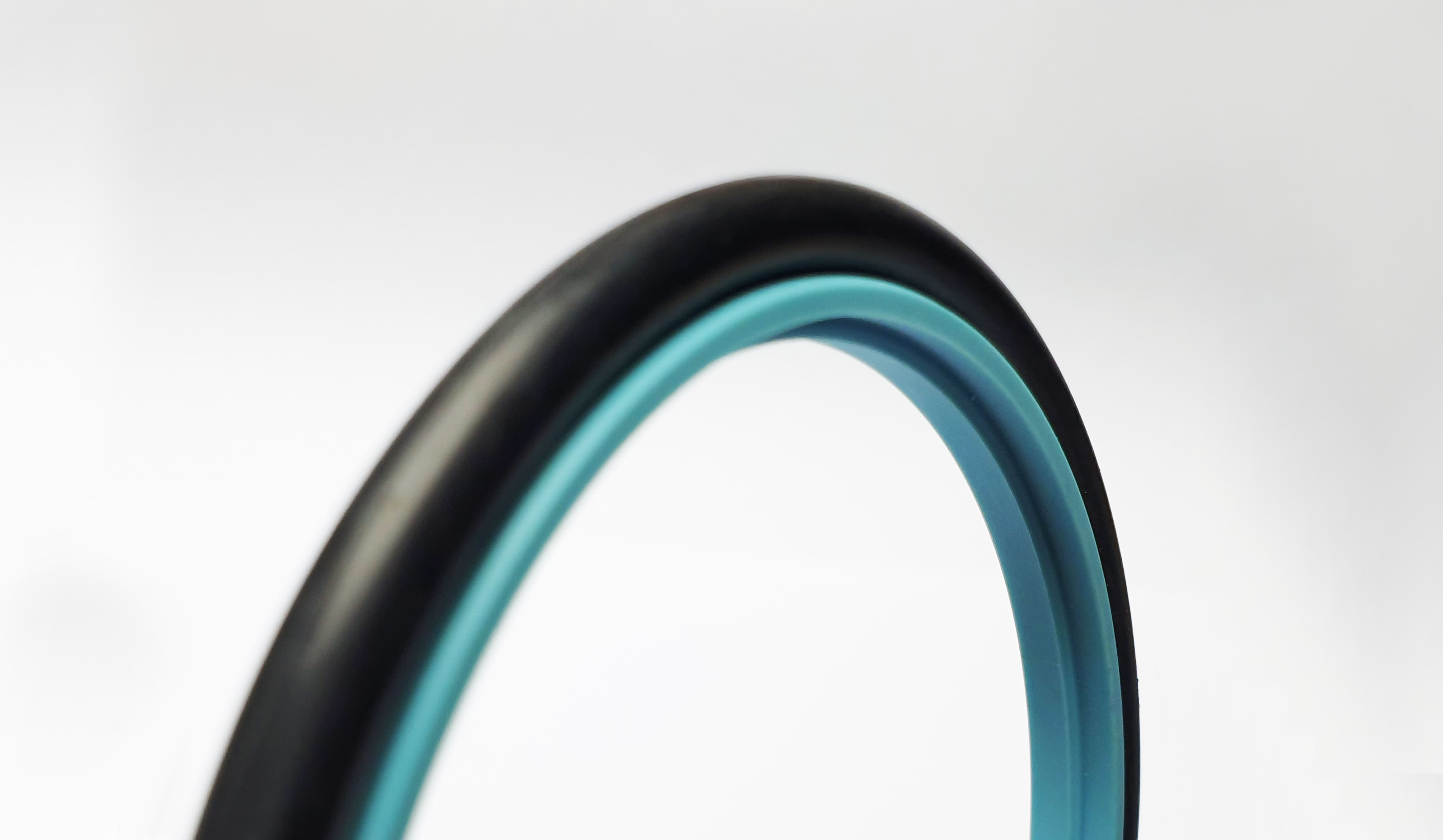

GS9S 1.125" X 1.546" X 0.165" COMPO

Details:

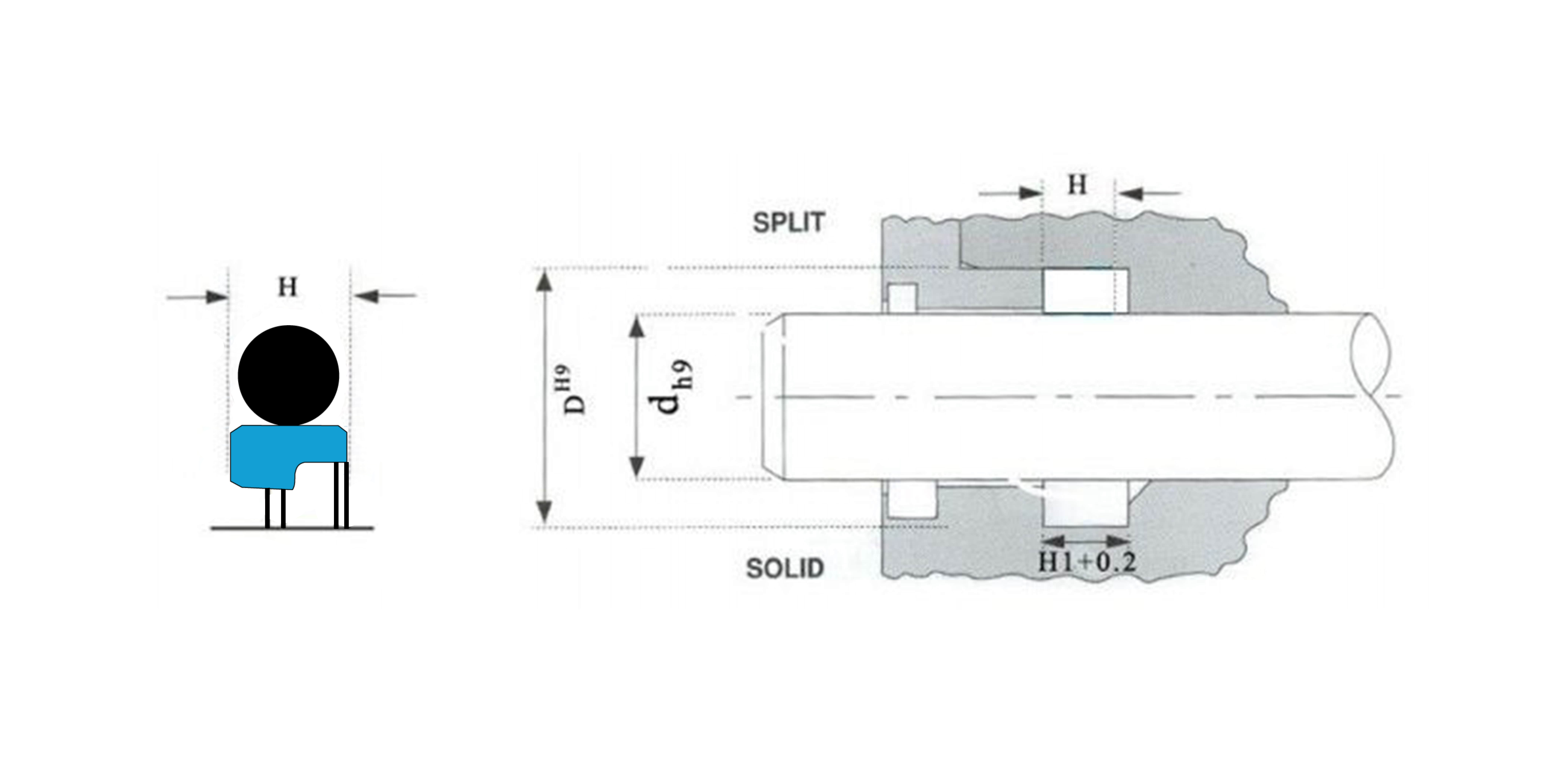

d (h9)
:
1.125" (28.57mm)
H1+0.2
:
0.165" (4.19mm)
D (H9)
:
1.546" (39.27mm)
Material
:
COMPO
GS9S-1.125x1.546x0.165-COMPO

Design

  • GS9S has a self relieving seal design which prevents pressure from tapping and a simple groove design for easy installation. The self relieving design prevents excessive pressure build up in the cavity between the buffer seal and rod seal. It has a special glide ring that has low frictional properties which are normally associated with this material. It is strengthened by additives to reduce creep. GS9S comes in a wide range of materials for special applications.

Features

  • Single acting seal
  • Low friction - no stick slip
  • Simple groove design and installation
  • Self relieving design prevents pressure tapping

Applications

  • The seal can be considered for use in heavy-duty applications when used with a suitable full depth back up ring.
