PAV2-8x15.5x2.6-NBR

  • d (h9)
  • D (H9)
  • H
  • Material
  • D1
  • Unit
  • D2
  • D3
  • D4
  • a
  • b
  • c
  • x

$ 17.14
$ 13.71 13.71 AUD

$ 17.14

Quantity
Your Price
1 - 4
$ 13.71
5 - 9
$ 13.02
10 - 24
$ 12.34
25 - 49
$ 11.14
50 +
$ 8.57

This combination does not exist.

Add to Cart

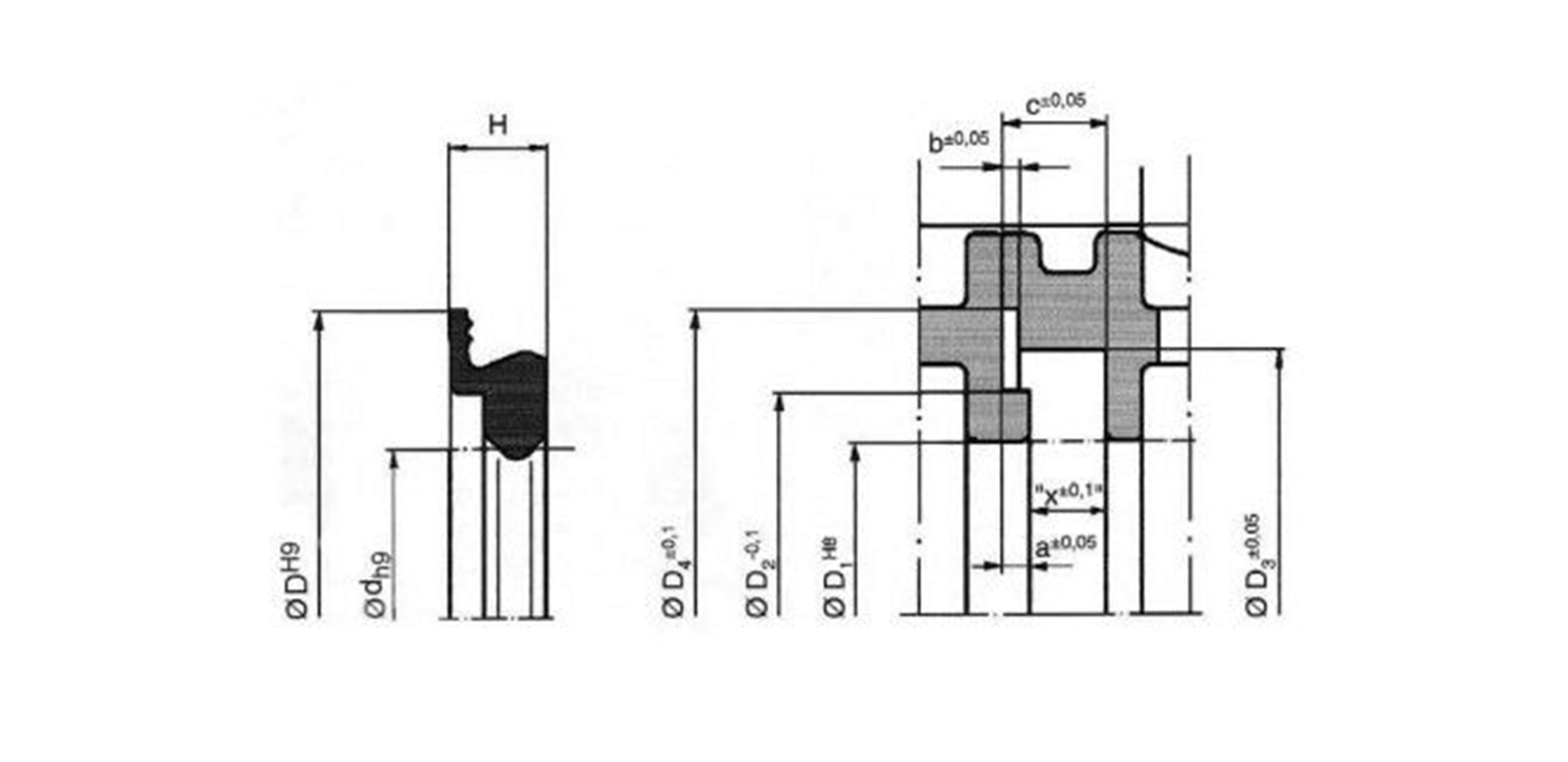

PAV2 8 X 15.5 X 2.6 NBR

Details:

d (h9)
:
8mm
D1
:
8.1mm
D2
:
10.8mm
D3
:
13mm
D4
:
16mm
a
:
0.9mm
b
:
0.5mm
c
:
2.85mm
x
:
1.95mm
D (H9)
:
15.5mm
H
:
2.6mm
Material
:
NBR
PAV2-8x15.5x2.6-NBR

Design

  • PAV 2 Pneumatic Seal
  • The Pneumatic Seal is especially adapted to low speed and pressure situations
  • Design provides an extremely smooth, steady movement with less breakaway.
  • Provides effective sealing whilst providing the option of reducing the weight of the unit


Applications

  • Primarily designed for low and medium pressure applications
  • Pressure range may be extended by the utilization of supporting back up rings


Fluids

  • Mineral based oils, water/glycol and water emulsions
