1. PK8S-29.3x40x4-COMPO
  2. PK8S
  3. Single Acting/ ROD Seals
  4. Standard Seals

PK8S-29.3x40x4-COMPO

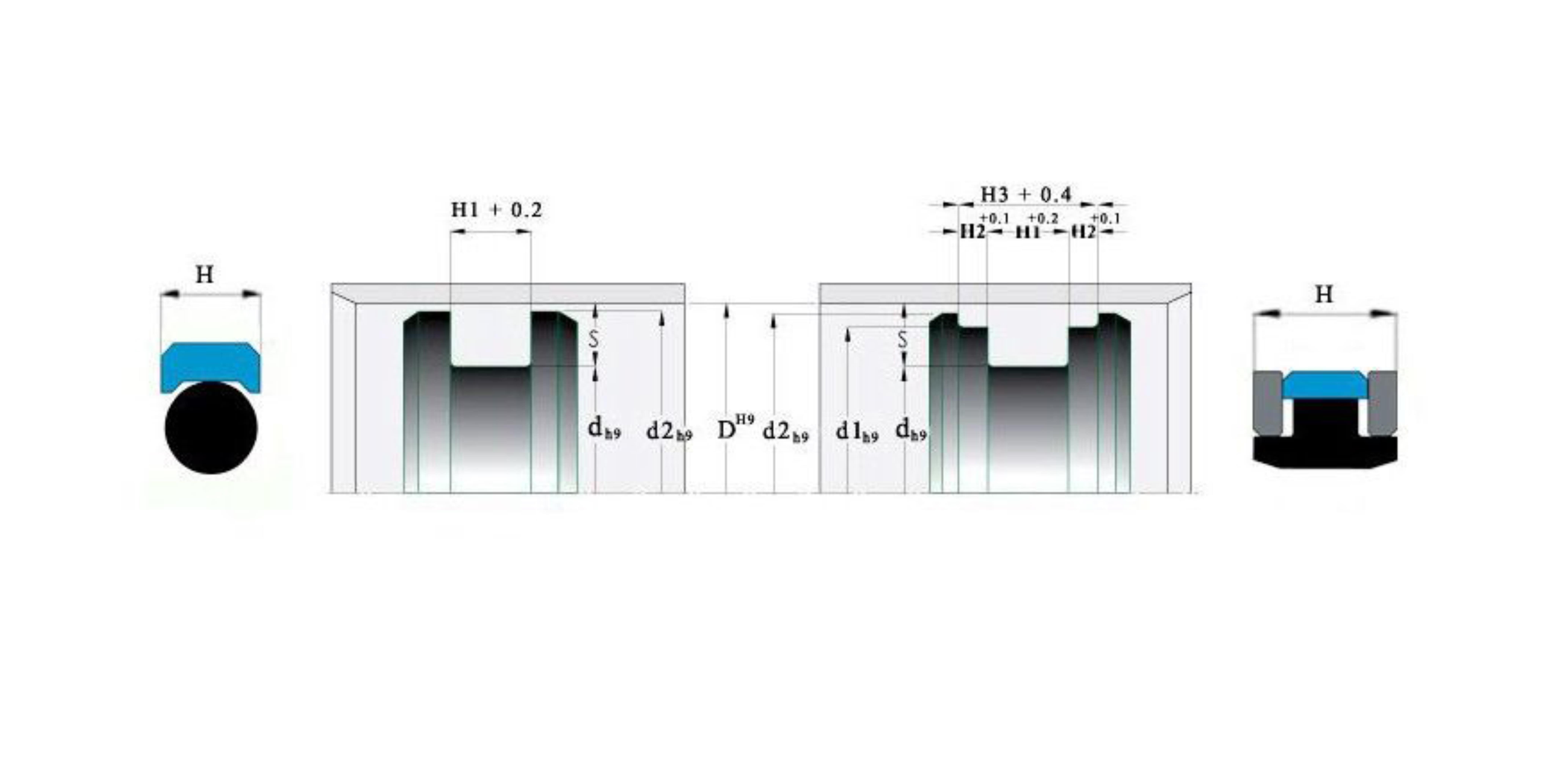

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • Unit

$ 35.18
$ 28.14 28.14 AUD

$ 35.18

Quantity
Your Price
1 - 4
$ 28.14
5 - 9
$ 26.73
10 - 24
$ 25.33
25 - 49
$ 22.86
50 +
$ 17.59

This combination does not exist.

Add to Cart



Details:

d (h9)
:
29.3mm
H1+0.2
:
4.2mm
D (H9)
:
40mm
H
:
4mm
Material
:
COMPO
PK8S-29.3x40x4-COMPO

Design

  • PK8S has a self relieving seal design which prevents pressure from trapping and a simple groove design for easy installation. The self relieving design prevents excessive pressure build up in the cavity between buffer seal and rod seal. It has a special PTFE ring that has low frictional properties which are normally associated with this material but is strengthened by additives to reduce creep. PK8S comes in a wide range of materials for special applications.

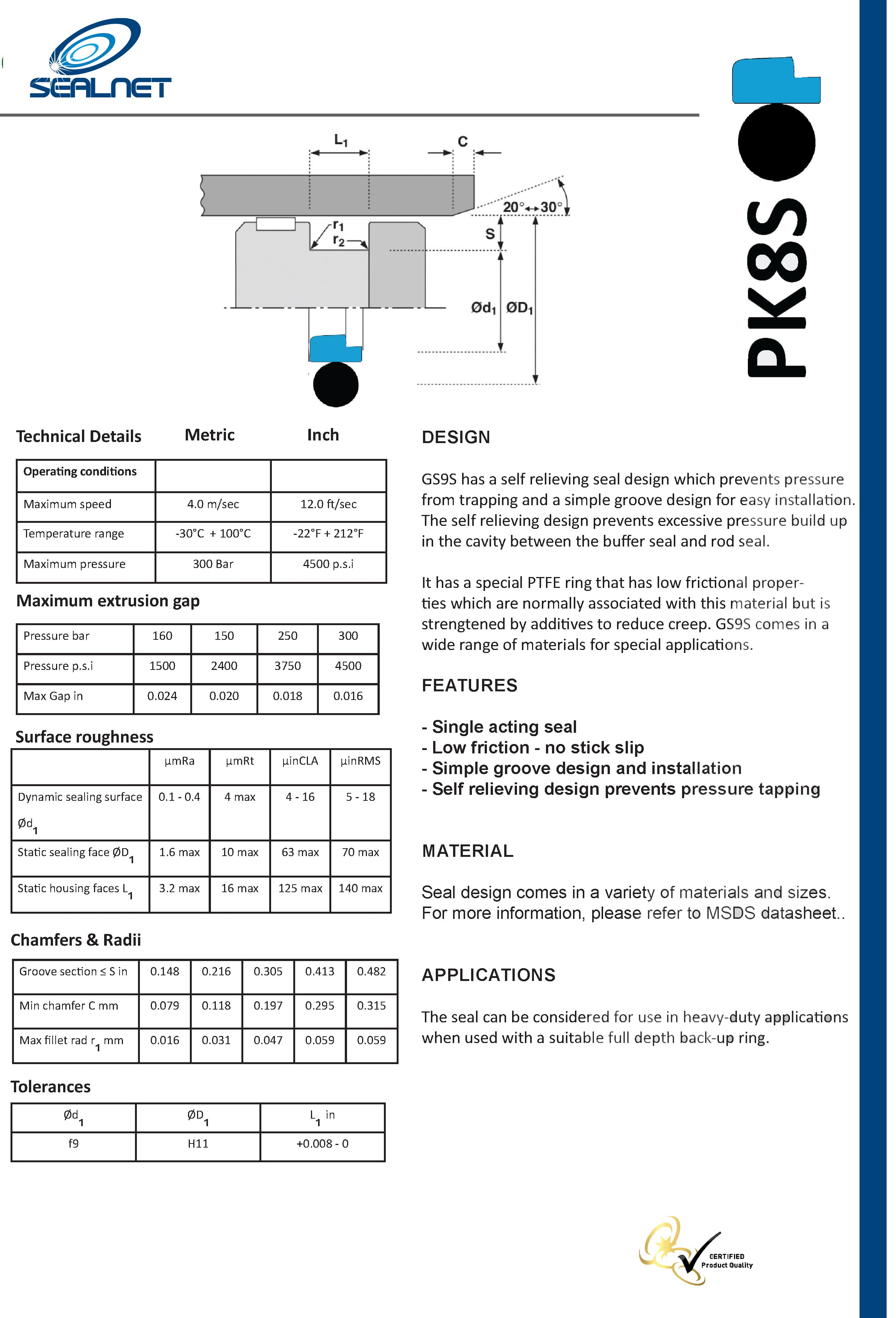

Download Datasheet

Features

  • Single acting seal
  • Low friction - no stick slip
  • Simple groove design and installation
  • Self relieving design prevents pressure tapping

Applications

  • The seal can be considered for use in heavy duty applications when used with a suitable full depth back up ring.
