1. PRKOJ-4.49x5.25x0.282-COMPO
  2. PRKOJ
  3. Double Acting/Piston Seals
  4. Standard Seals

PRKOJ-4.49x5.25x0.282-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • Unit
  • d2

$ 64.10
$ 51.28 51.28 AUD

$ 64.10

Quantity
Your Price
0
$ 64.10
1 - 4
$ 51.28
5 - 9
$ 48.72
10 - 24
$ 46.15
25 - 49
$ 41.02
50 +
$ 30.77

This combination does not exist.

Add to Cart

PRKOJ 4.49" X 5.25" X 0.282" COMPO

Details:

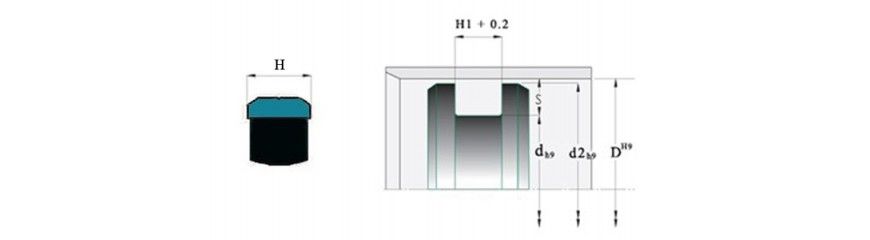

d (h9)
:
4.49" (114.05mm)
H1+0.2
:
0.282" (7.16mm)
d2
:
5.17" (131.32mm)
D (H9)
:
5.25" (133.35mm)
H
:
0.268" (6.81mm)
Material
:
COMPO
PRKOJ-4.49x5.25x0.282-COMPO

Design

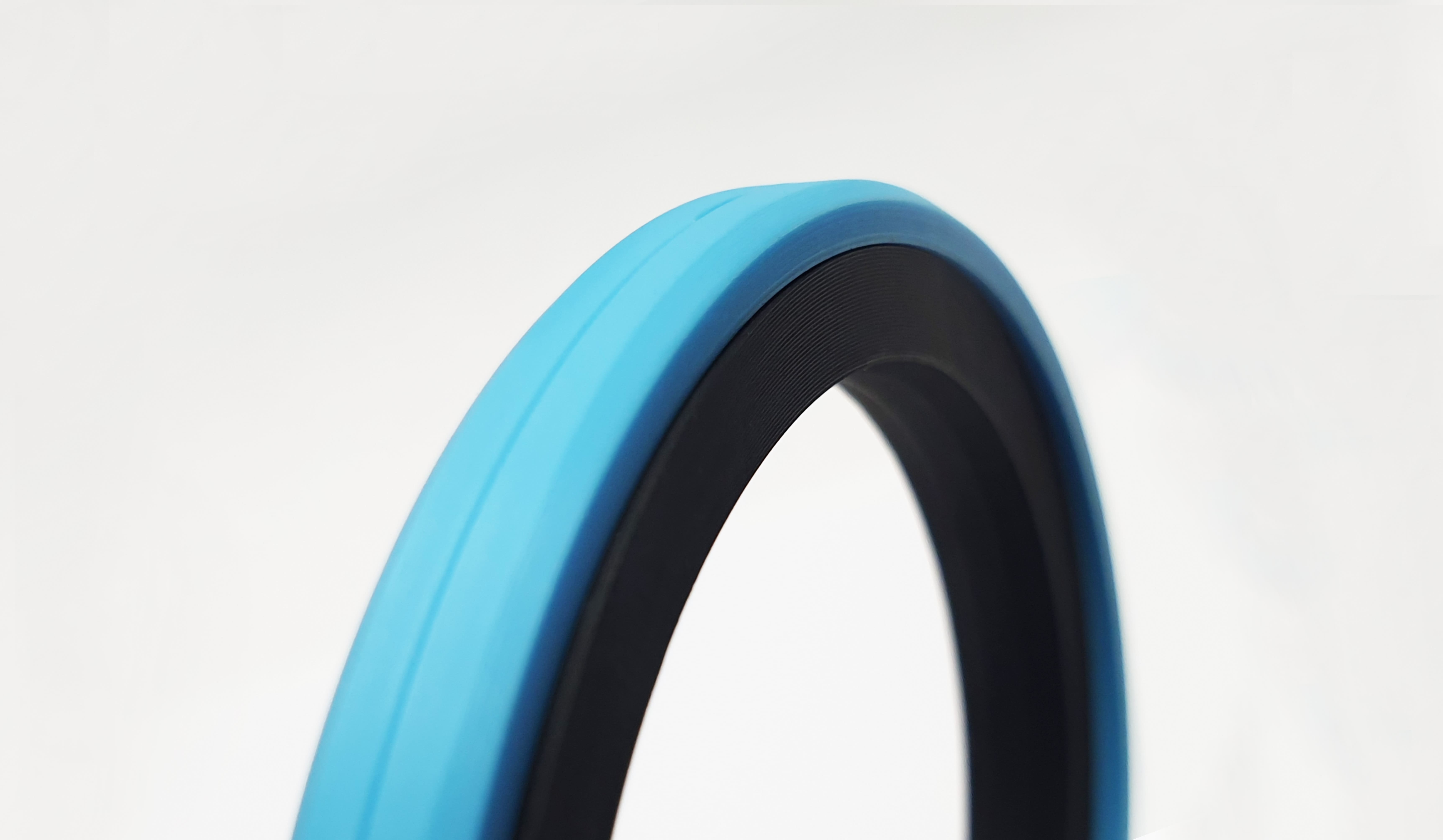

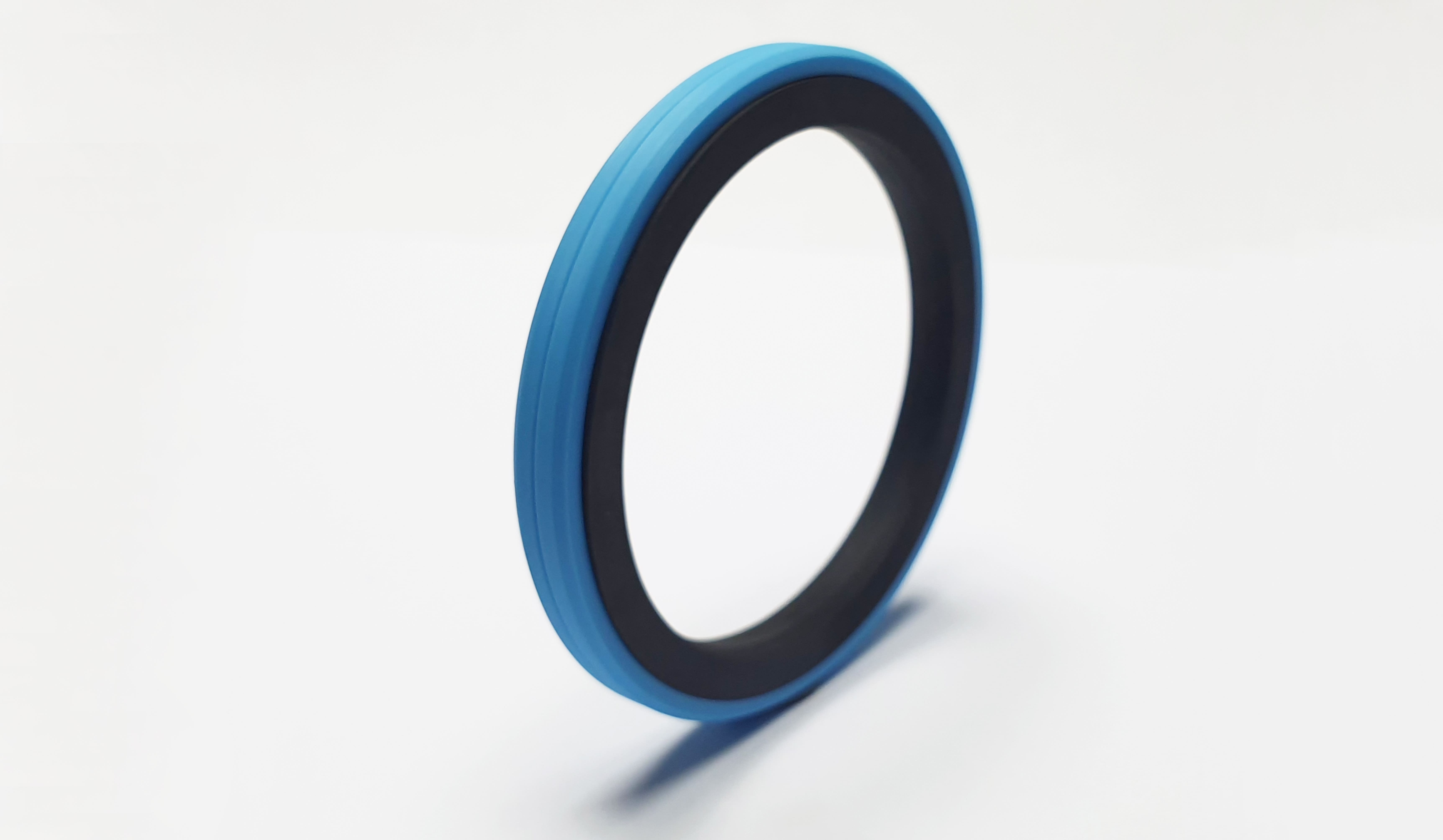

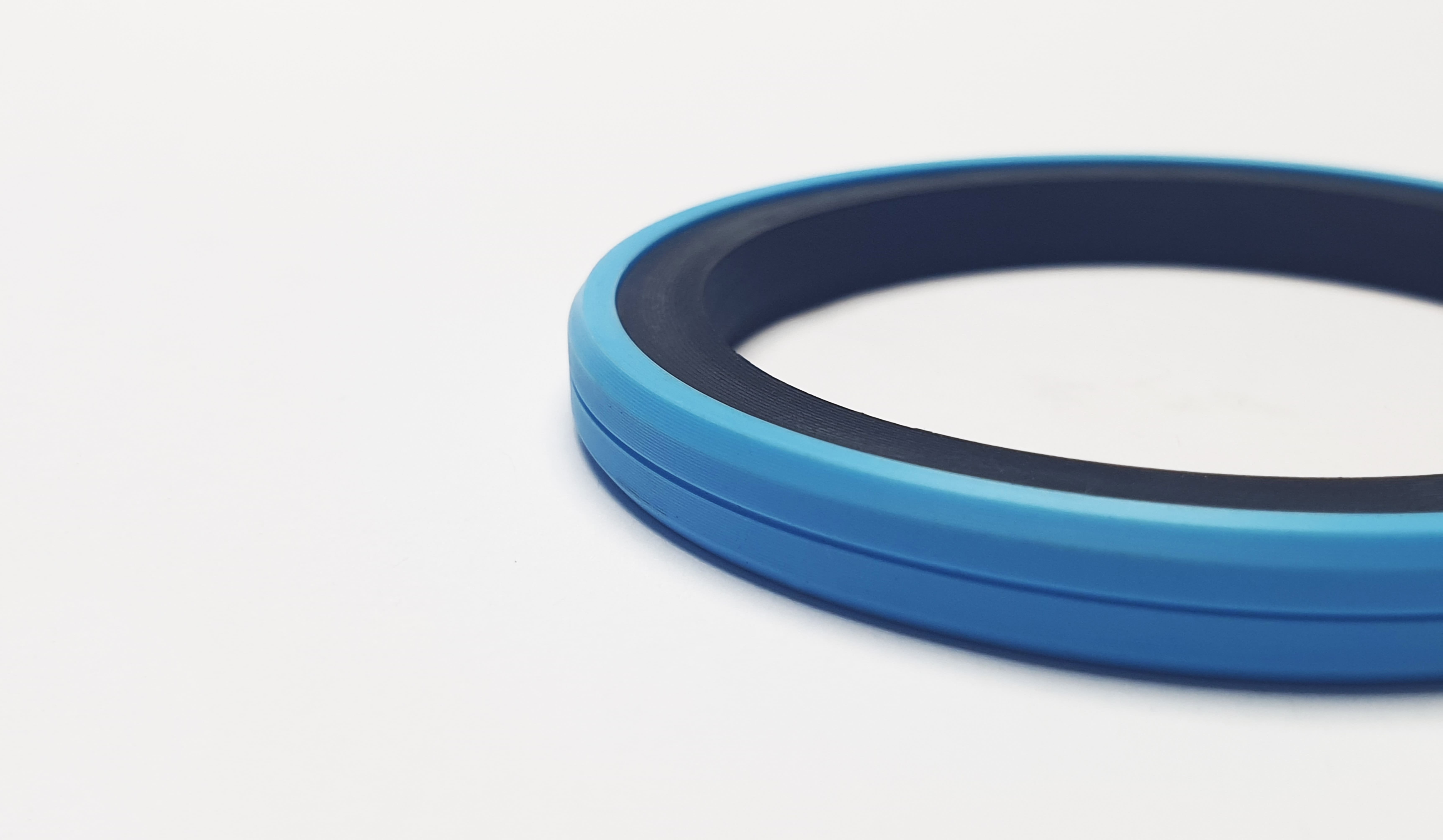

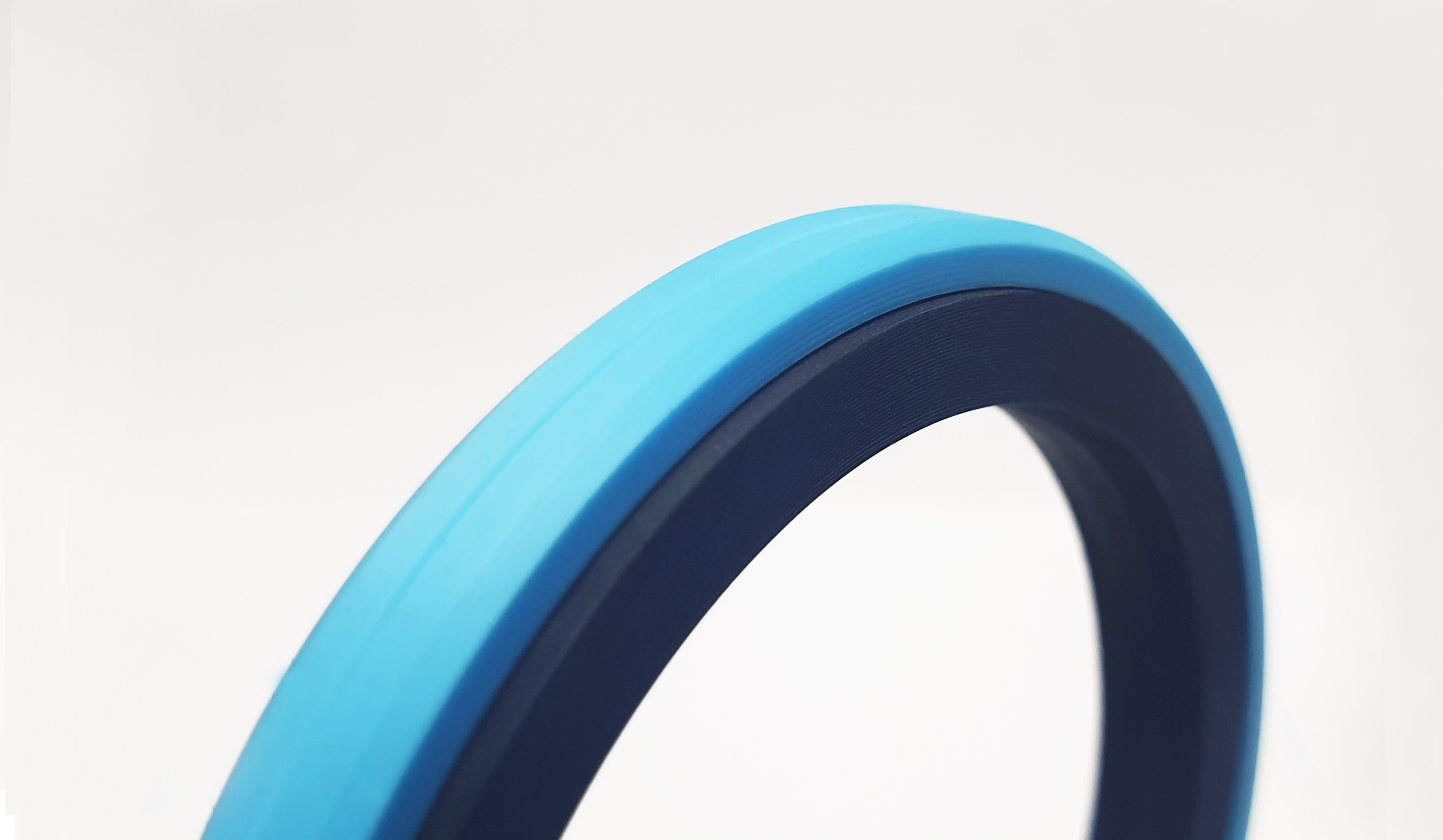

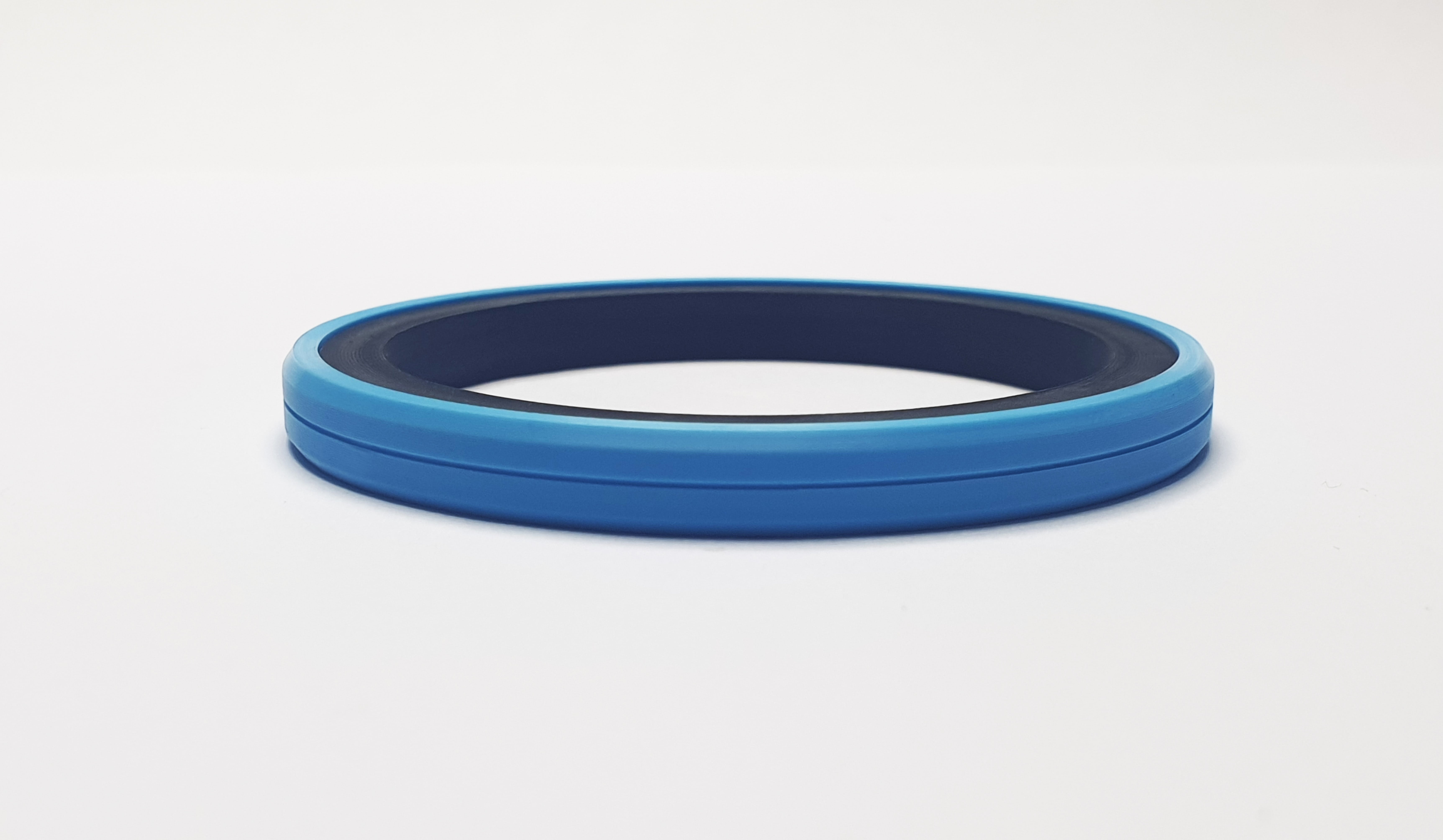

  • PRKOJ is a double acting piston seal that compromises of a bronze filled PTFE face ring, which is pre-loaded by a square section NBR ring. The cap ring is precision machined from a compression moulded billet.

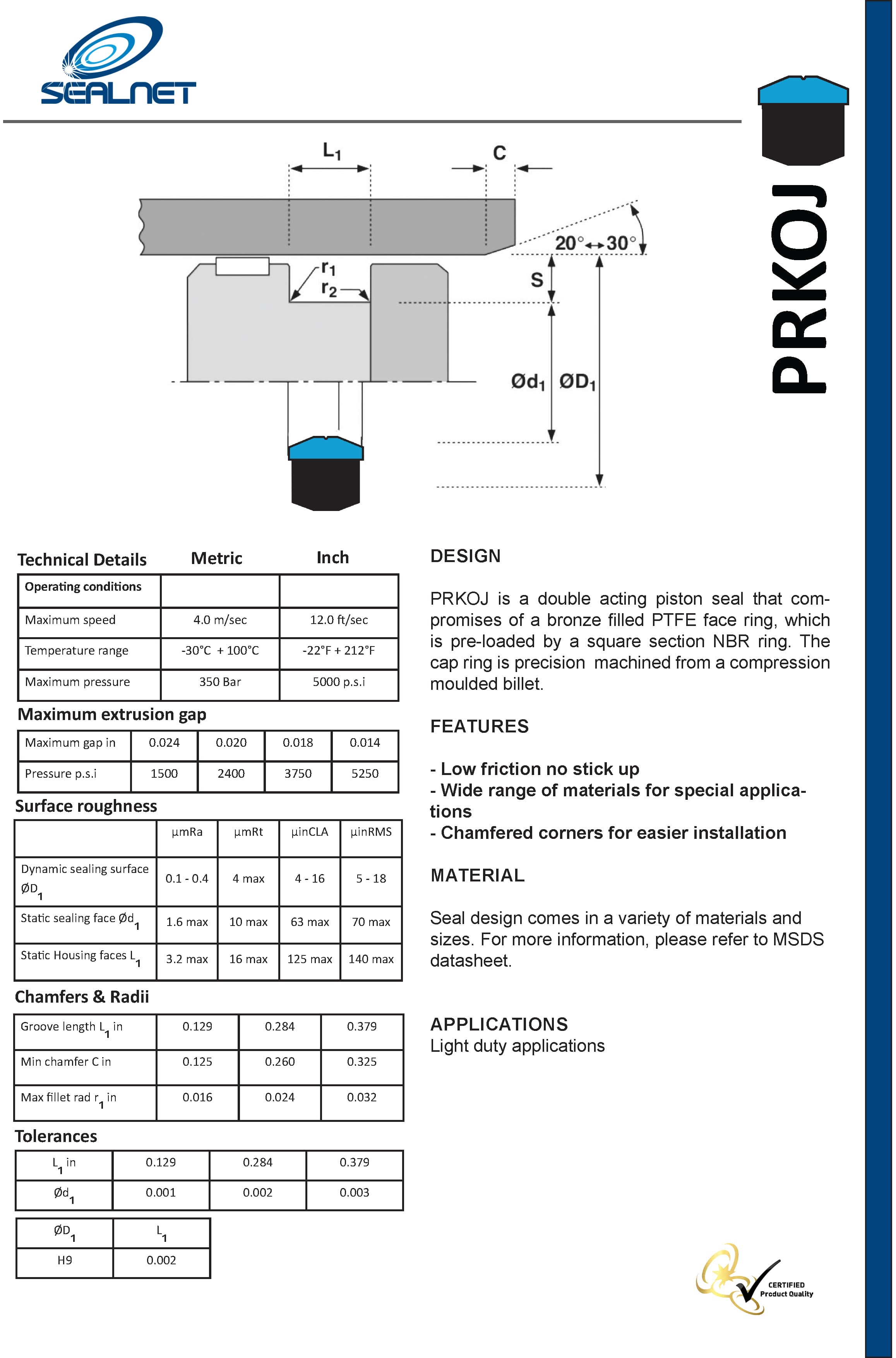

Download Datasheet


Features

  • Low friction, no stick up
  • Wide range of materials for special applications
  • Chamfered corners for easier installation


Application

  • Light duty applications
