VL-405x418x6/10.5-NBR

  • d (h9)
  • D (H9)
  • Material
  • Width-B
  • C/S
  • Unit
  • d1
  • Width-A

$ 146.63
$ 117.30 117.3 AUD

$ 146.63

Quantity
Your Price
1 - 4
$ 117.30
5 - 9
$ 111.44
10 - 24
$ 105.57
25 - 49
$ 95.31
50 +
$ 73.32

This combination does not exist.

Add to Cart

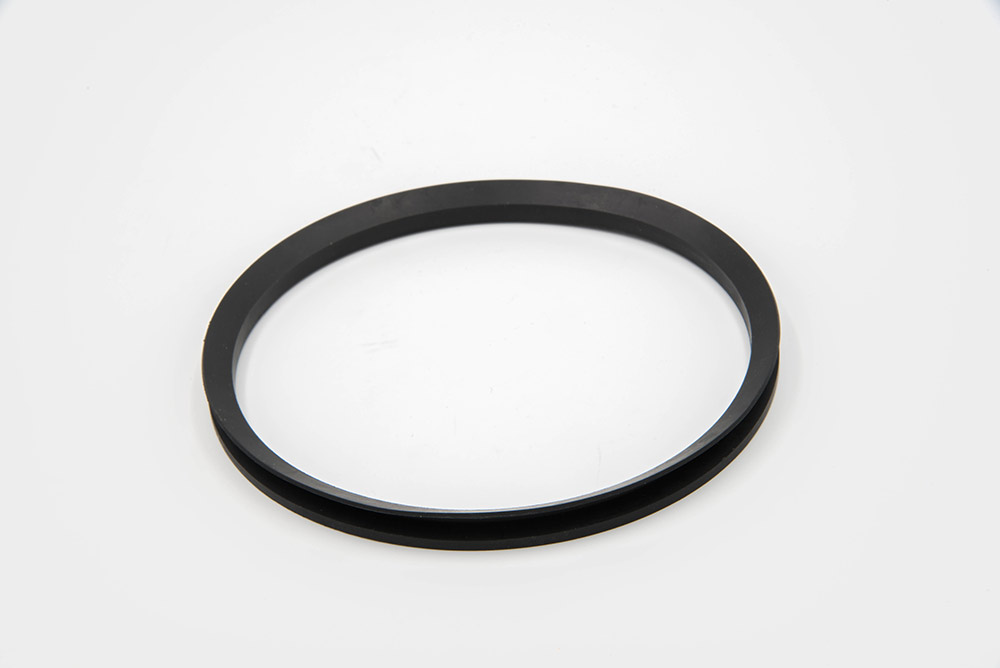

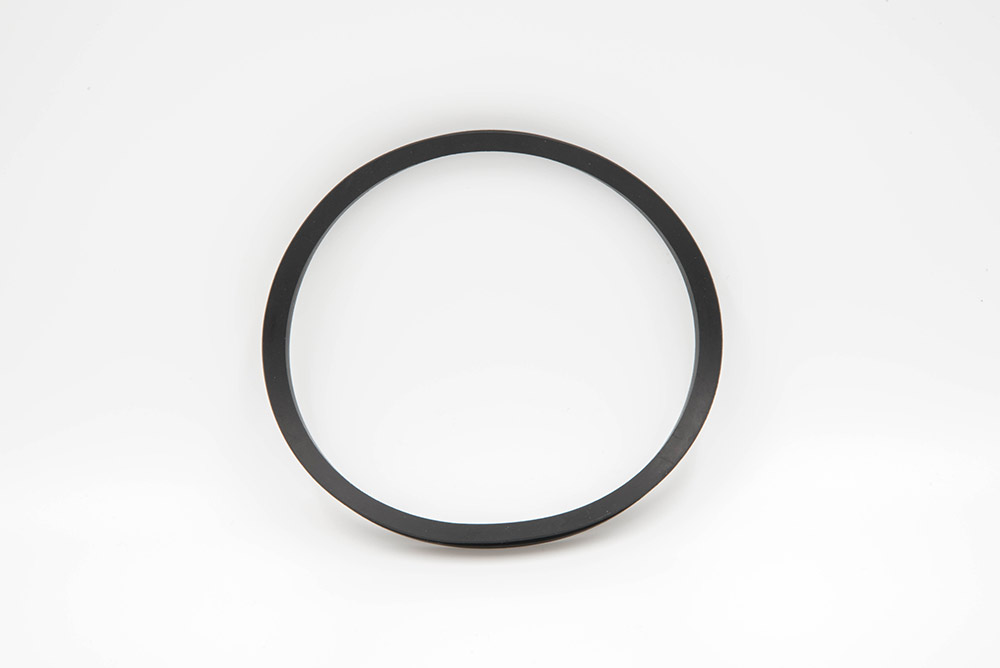

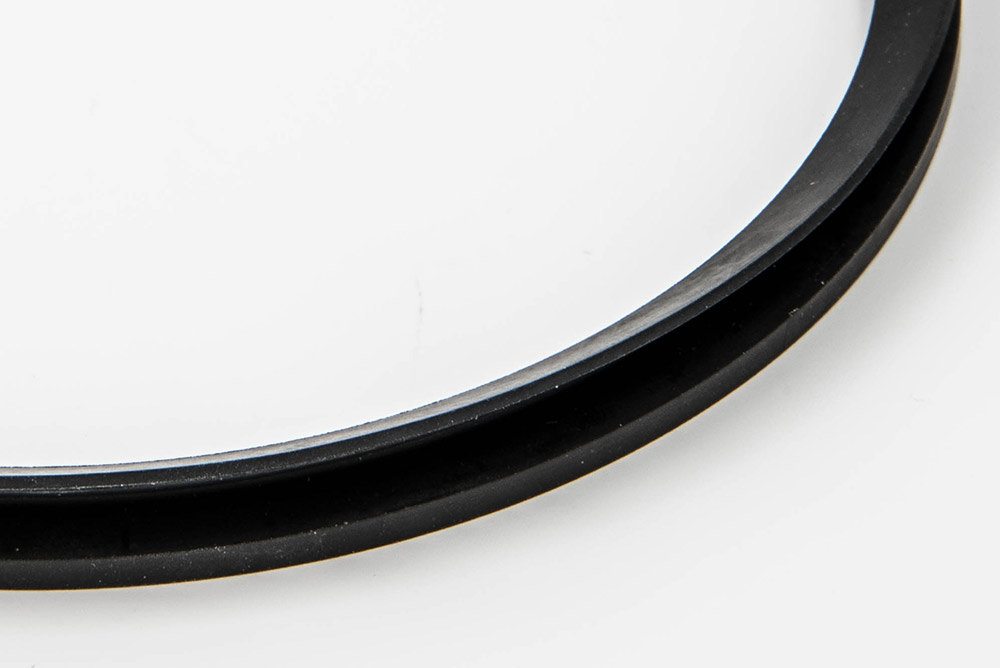

VL 405 X 418 X 6 / 10.5 NBR(Type V-450L)

Details:

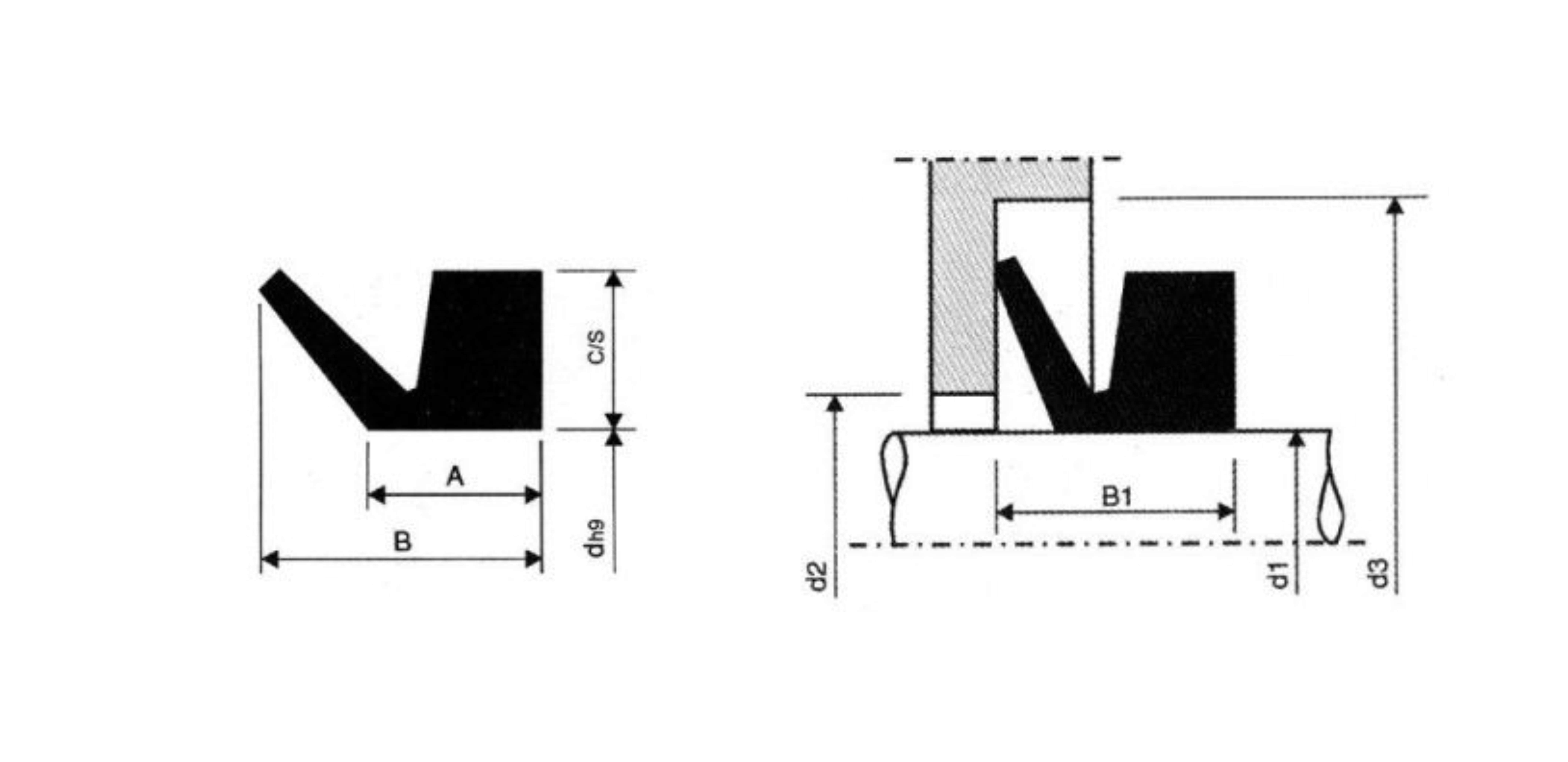

d (h9)
:
405mm
Width-B
:
10.5mm
C/S
:
6.5mm
d1
:
440-475
Width-A
:
6mm
D (H9)
:
418mm
Material
:
NBR
VL-405x418x6/10.5-NBR

Design

  • The standard VL-Ring is an axial face seal manufactured from pure elastomer without any metal and fabric reinforcement.
  • The V-Ring is a single seal used to protect against dirt, dust, water, grease and oil.
  • Used as a secondary seal to protect main rotary sealing element, protecting the bearings of heavy duty machines.


Applications

  • Can be stretched and installed directly over flanges, shaft and bearing housing without dismantling
