VPI-1.125x1.625x0.15/0.75-COMPO

  • d (h9)
  • D (H9)
  • Material
  • H1+0.2
  • C/S
  • Stack Height (H/V)
  • Unit

$ 95.68
$ 76.54 76.54 AUD

$ 95.68

Quantity
Your Price
1 - 4
$ 76.54
5 - 9
$ 72.72
10 - 24
$ 68.89
25 - 49
$ 62.19
50 +
$ 47.84

This combination does not exist.

Add to Cart

VPI 1.125" X 1.625" X 0.15 / 0.75" COMPO

Details:

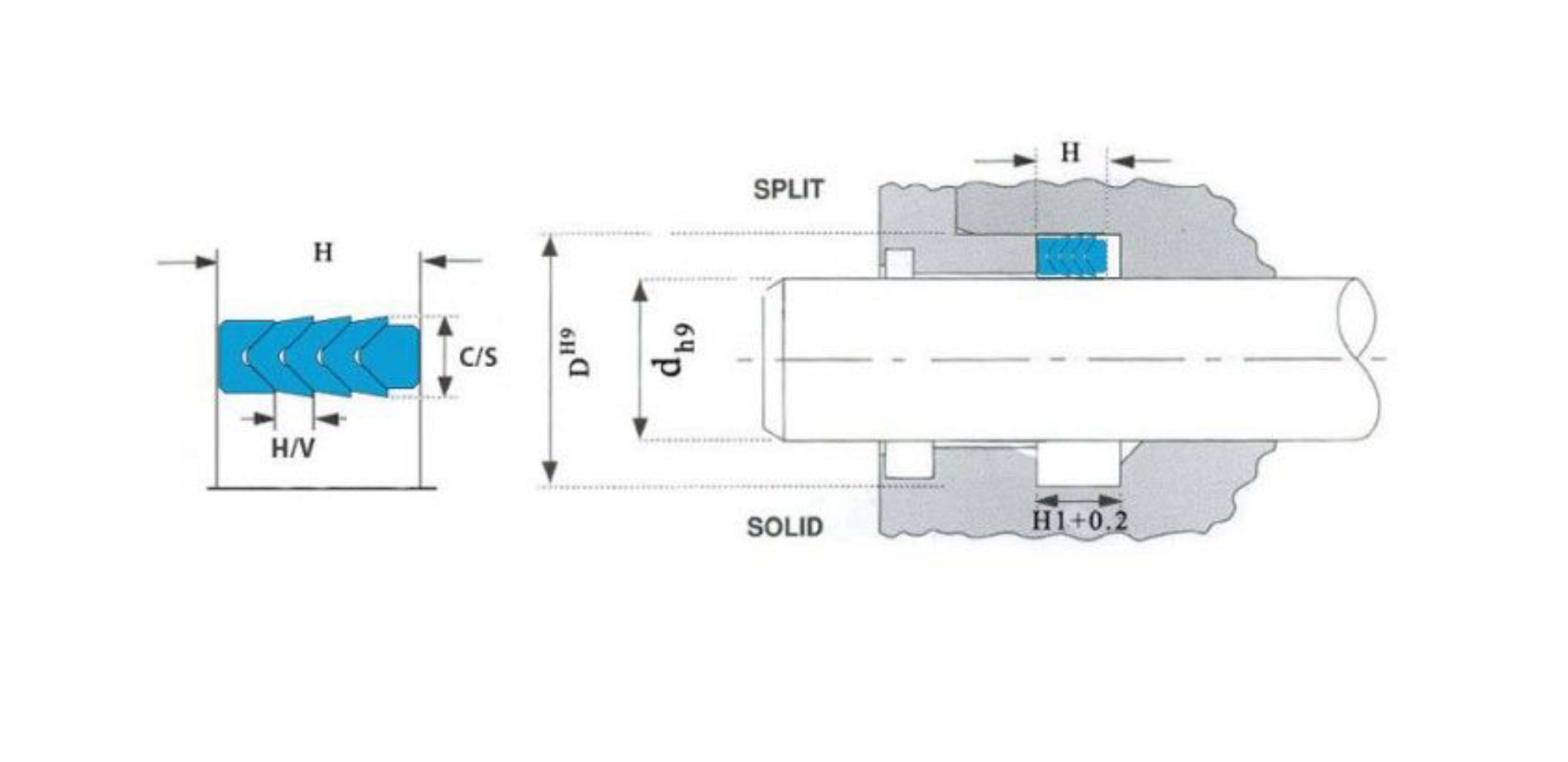

d (h9)
:
1.125" (28.57mm)
H1+0.2
:
0.75" (19.05mm)
C/S
:
0.25" (6.35mm)
Stack Height (H/V)
:
0.150" (3.81mm)
D (H9)
:
1.625" (41.27mm)
Material
:
COMPO
VPI-1.125x1.625x0.15/0.75-COMPO

Design

  • VPI vee packer seal is normally used in multiples in a set with male and female adaptors. The parts are 'stacked' together and are lubricated liberally with clean operating fluid prior to assembly. VPI must be axially pre-loaded by the housing. This pre-load works through the male adaptor on the pressure side, exerting a hinging action, forcing the sealing lips apart to ensure a low pressure seal. As pressure and hinging action increases, it increases the effectiveness of the seal even where severe vibration may occur.


Applications

  • High pressure rod and piston sealing applications
  • Used in steel mill and hydraulic press applications


Fluids

  • Mineral based oils, water/glycol and water emulsions
